DIYables 0.36 Inch 1 Digit 7 Segment LED Display Red Common Anode Common Cathode BS Type for Arduino ESP32 ESP8266 Raspberry Pi, 10 Pack
Click to zoom
Quick Overview

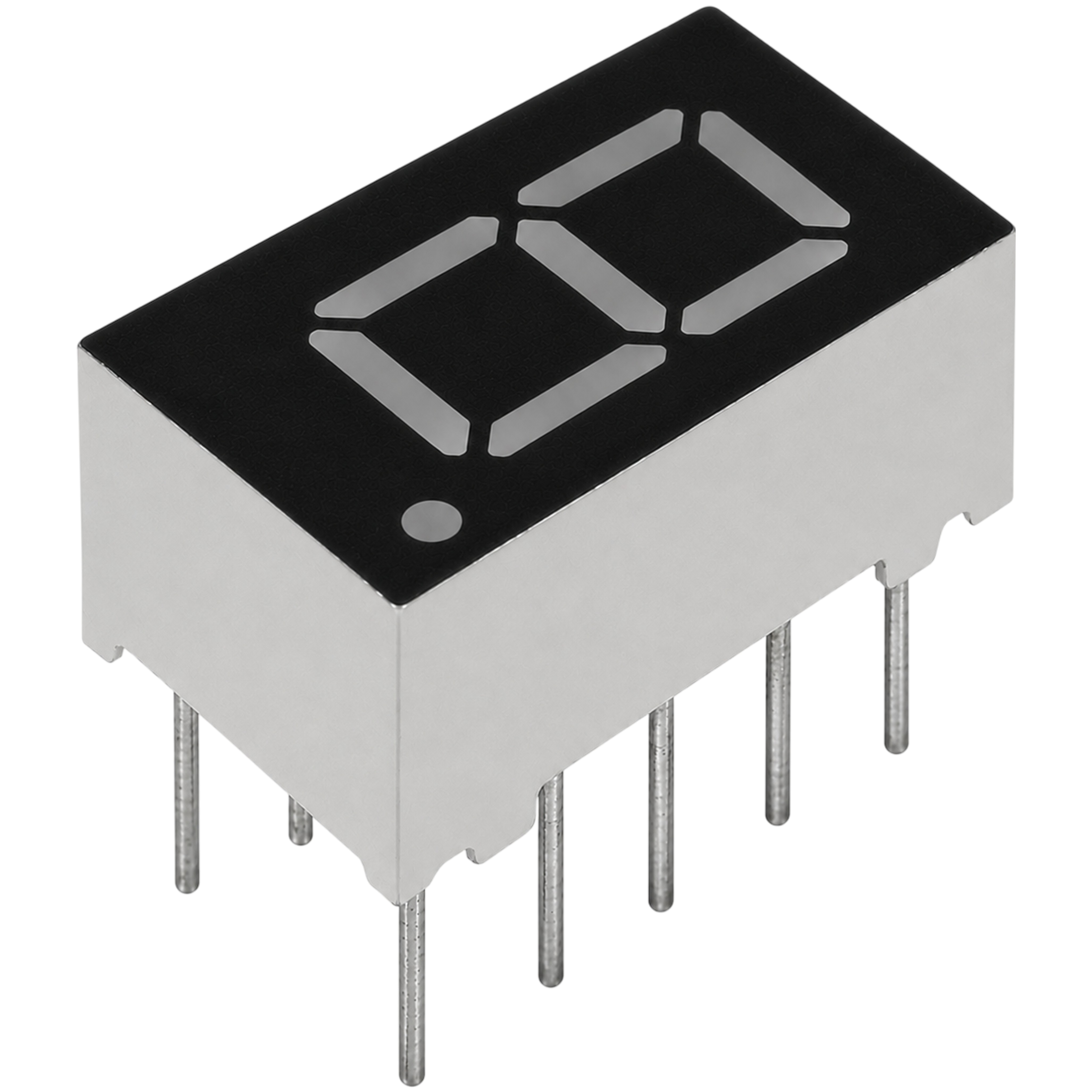

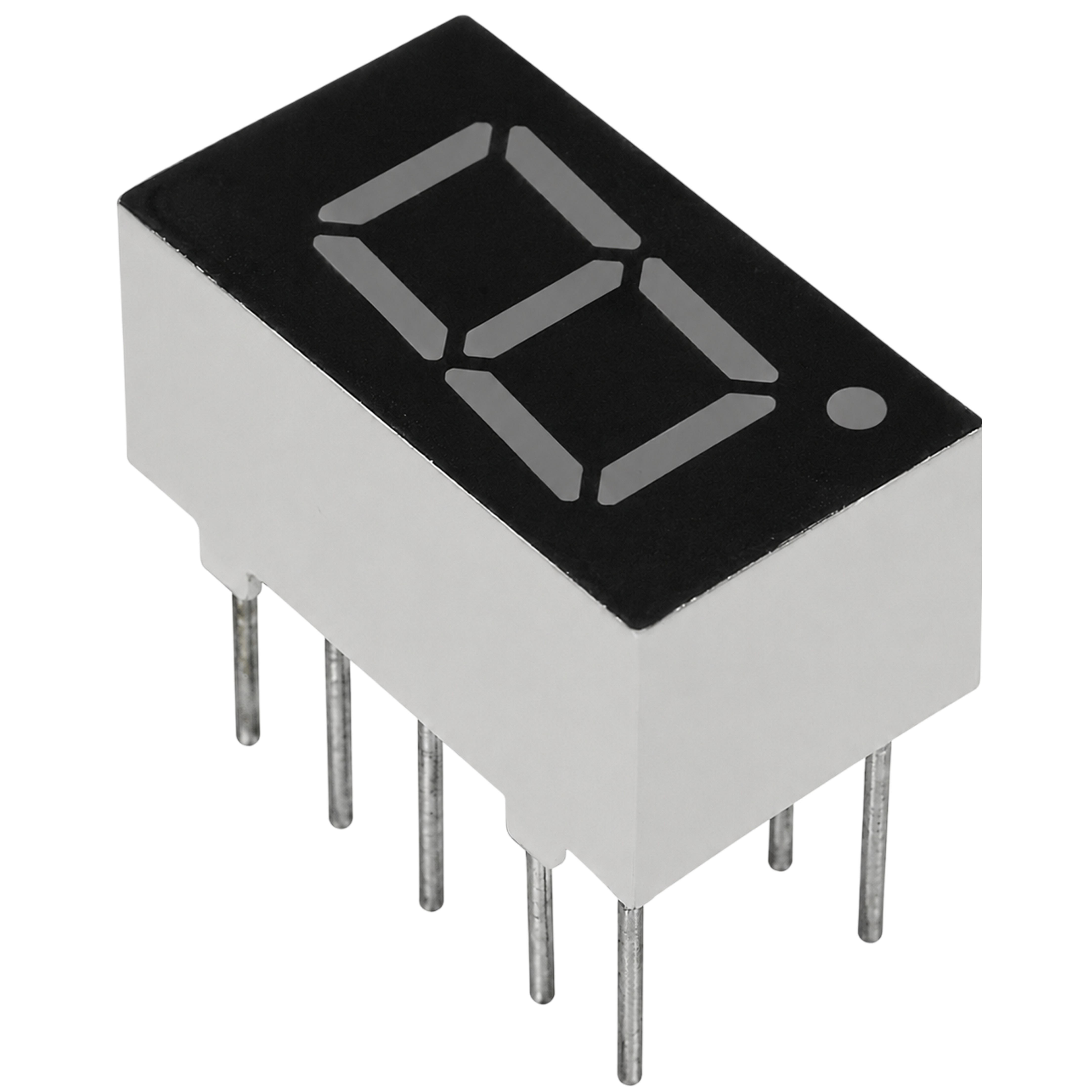

This DIYables 0.36-inch single-digit 7-segment LED display delivers bright red numeric output in a compact standard BS-type DIP package. Available in both common anode and common cathode configurations, it suits a wide range of circuit designs — choose the version that matches your microcontroller logic and wiring preference. Each display has 7 segments plus a decimal point, with each segment accessible through its own pin for full individual control.
The display connects directly to GPIO pins via current-limiting resistors (typically 100–330Ω per segment), making it straightforward to drive from Arduino, ESP32, ESP8266, Raspberry Pi, or any 3.3V/5V microcontroller. For projects needing more GPIO efficiency, it pairs naturally with a 74HC595 shift register or 4511 BCD decoder. This 10-pack provides ten displays, ideal for multi-digit counters, educational sets, or production use.
Ideal for digital counters, scoreboards, numeric readouts, clocks, frequency displays, and STEM electronics learning. The standard BS-type footprint fits standard breadboards and PCBs, making it easy to integrate into both prototype and permanent circuit designs.
Key Features
- 0.36 Inch 1-Digit Display — Single-digit red 7-segment LED display with clear brightness for number indication, counters, and DIY electronics projects
- Common Anode and Cathode Options — Available in common anode and common cathode versions for flexible compatibility with different circuit designs

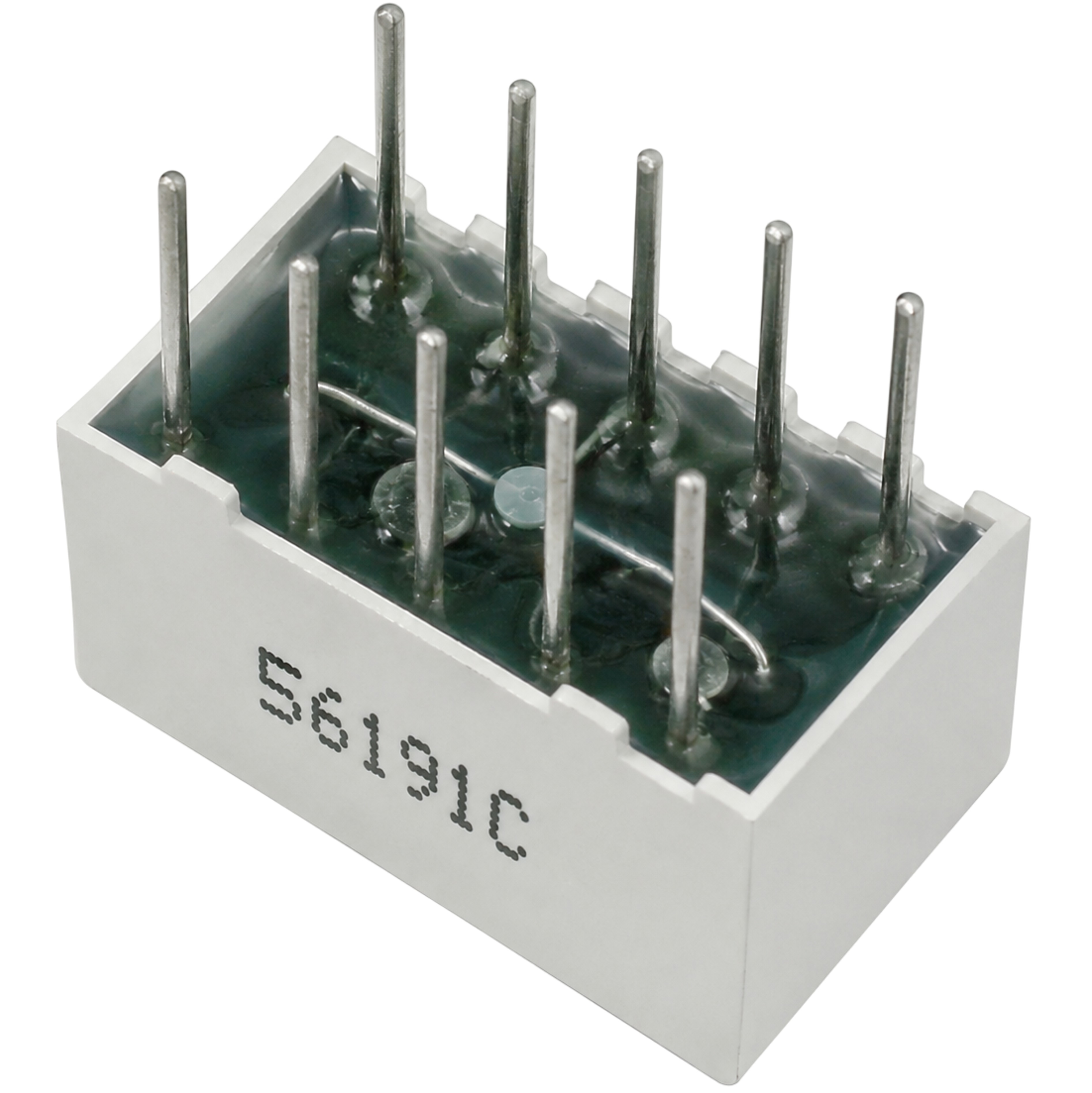

- BS Type Package Design — Standard BS-style DIP package for easy mounting and reliable use in breadboard and PCB applications

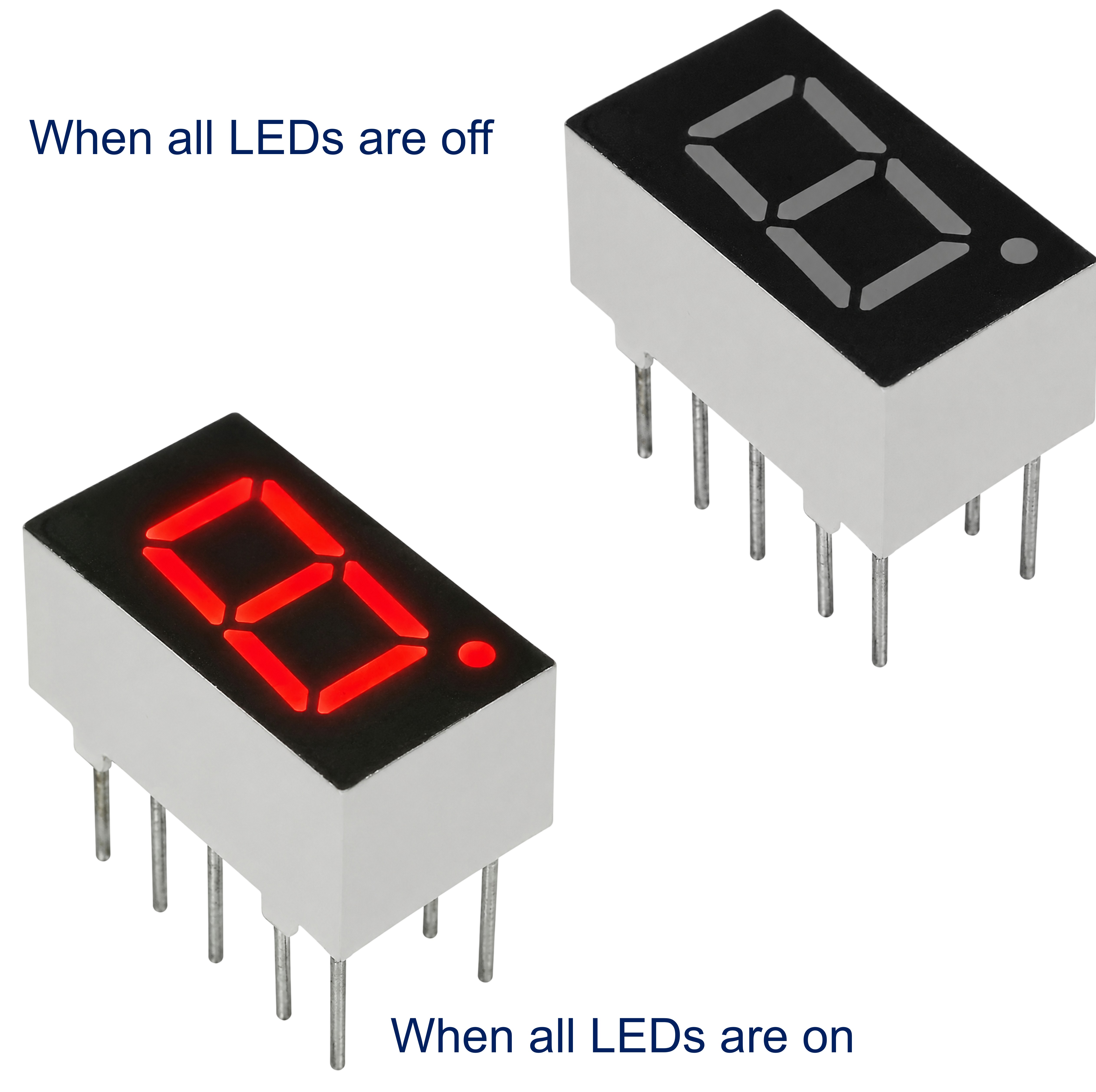

- 7 Segments Plus Decimal Point — Individual control over all 7 segments and 1 decimal point for full numeric and character display
- Direct GPIO Control — Drive each segment directly from microcontroller GPIO pins with current-limiting resistors
- Shift Register Compatible — Works with 74HC595 shift register or 4511 BCD decoder to reduce GPIO usage
- Wide Board Compatibility — Works with Arduino, ESP32, ESP8266, Raspberry Pi, and other microcontroller development platforms
- 10-Pack Value Set — Includes ten 1-digit LED display modules ideal for prototyping, education, testing, and production projects
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | Single-Digit 7-Segment LED Display |
| Display Size | 0.36 inch |
| LED Color | Red |
| Package Type | BS Type (DIP) |
| Configuration | Common Anode / Common Cathode (select version when ordering) |
| Segments | 7 segments + 1 decimal point (DP) |
| Total Pins | 10 (standard DIP-10 layout) |
| Forward Voltage | ~2V (typical, per segment) |
| Recommended Resistor | 100–330Ω per segment (not included) |
| Operating Voltage | 3.3V to 5V DC (with external current-limiting resistors) |
| Interface | Direct GPIO (one pin per segment + common pin) |
| Package Quantity | 10 pieces |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, any 3.3V/5V microcontroller |
| Applications | Digital counters, scoreboards, clocks, frequency displays, numeric readouts, STEM education |
PACKAGE
A package includes:
| Qty | Items |
|---|---|
| 10 | 0.36-Inch 1-Digit 7-Segment Red LED Displays (BS Type) |
COMPATIBLE HARDWARE
- Arduino boards (UNO, Mega, Nano, etc.) — Direct GPIO with 5V logic and 100–330Ω current-limiting resistors per segment
- Arduino UNO R4 WiFi/Minima — Direct GPIO connection with current-limiting resistors
- ESP32 development boards — Direct GPIO with 3.3V logic and current-limiting resistors per segment
- ESP8266 boards (NodeMCU, D1 Mini, etc.) — Direct GPIO with 3.3V logic and current-limiting resistors per segment
- Raspberry Pi (all models) — Direct GPIO with 3.3V logic and current-limiting resistors per segment
- Raspberry Pi Pico — Direct GPIO with 3.3V logic and current-limiting resistors per segment
- 74HC595 shift register — Drive all 8 segment pins using only 3 GPIO pins (SPI-style)
- 4511 BCD decoder — Drive display directly from a 4-bit BCD input
- Any microcontroller with digital GPIO output — Use appropriate current-limiting resistors for the supply voltage
