DIYables 2.4 Inch OLED Display Module SSD1309 128x64 for Arduino ESP32 ESP8266, I2C Serial 4 Pin Interface, White, Presoldered
Click to zoom
Quick Overview
This DIYables 2.4 inch OLED display module features the SSD1309 driver with 128x64 pixel resolution and a crisp white OLED panel. The 4-pin I2C interface reduces wiring complexity and conserves GPIO pins on your microcontroller. Presoldered pin headers allow immediate use straight out of the package with breadboards and development boards.
Compatible with Arduino, ESP32, and ESP8266 using standard I2C communication. The SSD1309 driver is compatible with the popular Adafruit SSD1306 library, making integration into existing projects straightforward. The high-contrast OLED panel delivers excellent visibility with low power consumption and no backlight required.
Key Features
- Arduino ESP32 ESP8266 Compatible: Works with popular microcontroller boards via standard I2C
- SSD1309 OLED Driver: Stable performance, compatible with Adafruit SSD1306 library
- 128x64 Resolution: Crisp, detailed display for text, graphics, and sensor data
- 2.4 Inch Screen: Large OLED panel for improved readability in your projects

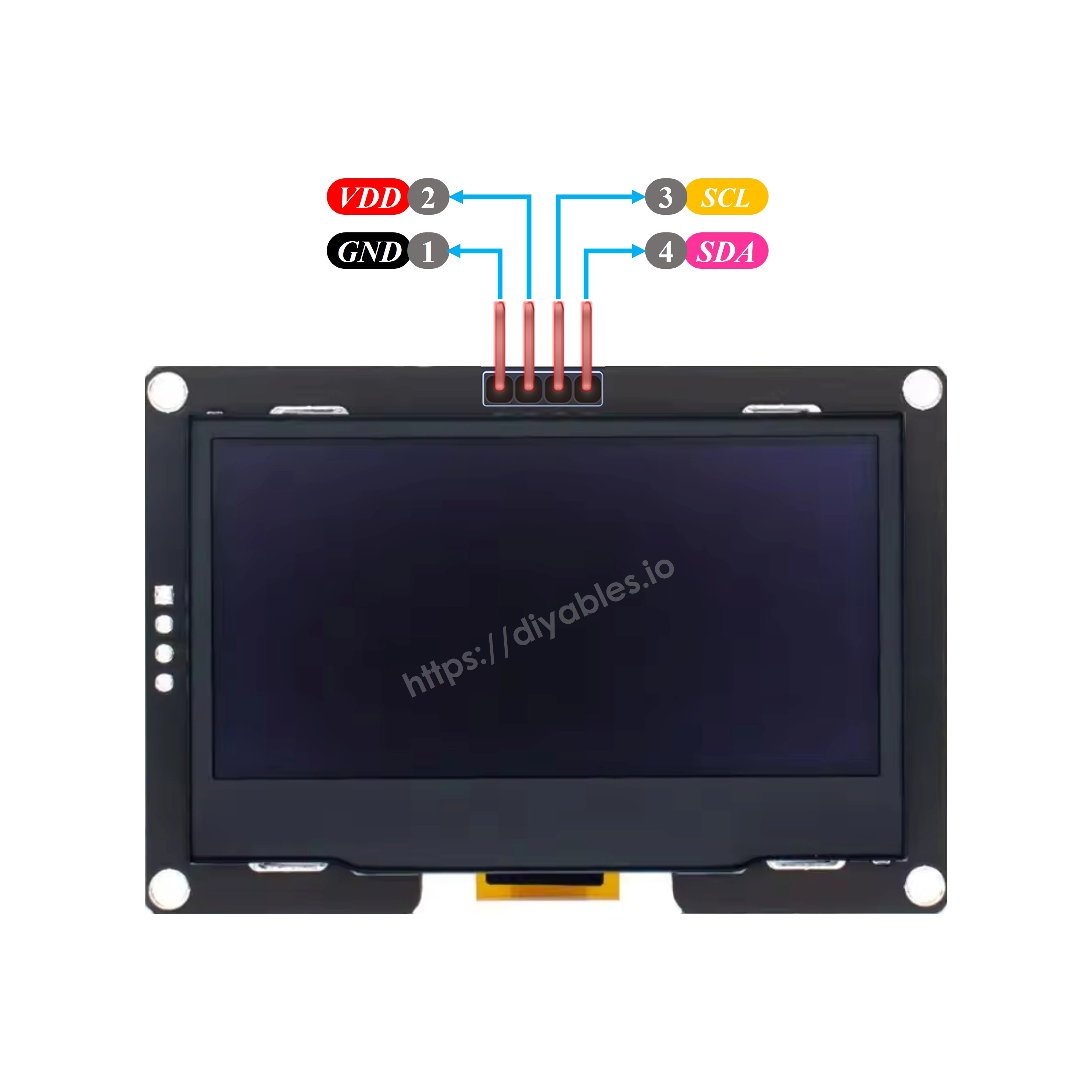

- I2C Serial Interface: 4-pin connection (VCC, GND, SCL, SDA) saves GPIO pins
- White OLED Panel: High contrast display with low power consumption, no backlight needed
- Presoldered Pin Header: Ready for immediate breadboard and prototyping use
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | OLED Display Module |
| Screen Size | 2.4 inch |
| Resolution | 128x64 pixels |
| Driver IC | SSD1309 |
| Interface | I2C (Serial, 4-pin) |
| I2C Address | 0x3C (default) |
| Display Color | White |
| Operating Voltage | 3.3V to 5V |
| Pin Count | 4 (VCC, GND, SCL, SDA) |
| Presoldered | Yes |
| Backlight | Self-luminous (no backlight required) |
| Library Support | Adafruit SSD1306, U8g2, and compatible libraries |
Library
Tutorials
- Arduino - SSD1309 OLED Display Module
- Arduino Uno R4 - SSD1309 OLED Display Module
- Arduino Nano - SSD1309 OLED Display Module
- Arduino Nano ESP32 - SSD1309 OLED Display Module
- ESP32 - SSD1309 OLED Display Module
- ESP8266 - SSD1309 OLED Display Module
- Raspberry Pi - SSD1309 OLED Display Module
- Raspberry Pi Pico - SSD1309 OLED Display Module
COMPATIBLE HARDWARE
- Arduino boards (UNO, Mega, Nano, etc.) — I2C pins (A4/SDA, A5/SCL)
- Arduino Uno R4 WiFi/Minima — I2C interface
- Arduino Nano ESP32 — I2C pins
- ESP32 development boards — I2C pins (default GPIO21/SDA, GPIO22/SCL)
- ESP8266 boards (NodeMCU, Wemos D1, etc.) — I2C pins (GPIO4/SDA, GPIO5/SCL)
- Any 3.3V or 5V microcontroller with I2C interface
