DIYables MOSFET PWM Trigger Switch Drive Module DC 5V to 36V 15A 400W High Power MOSFET Driver Board for DC Motor Speed Control LED Strip Dimmer Pump Solenoid for Arduino ESP32 Raspberry Pi, 5 Pieces
Click to zoom
Quick Overview

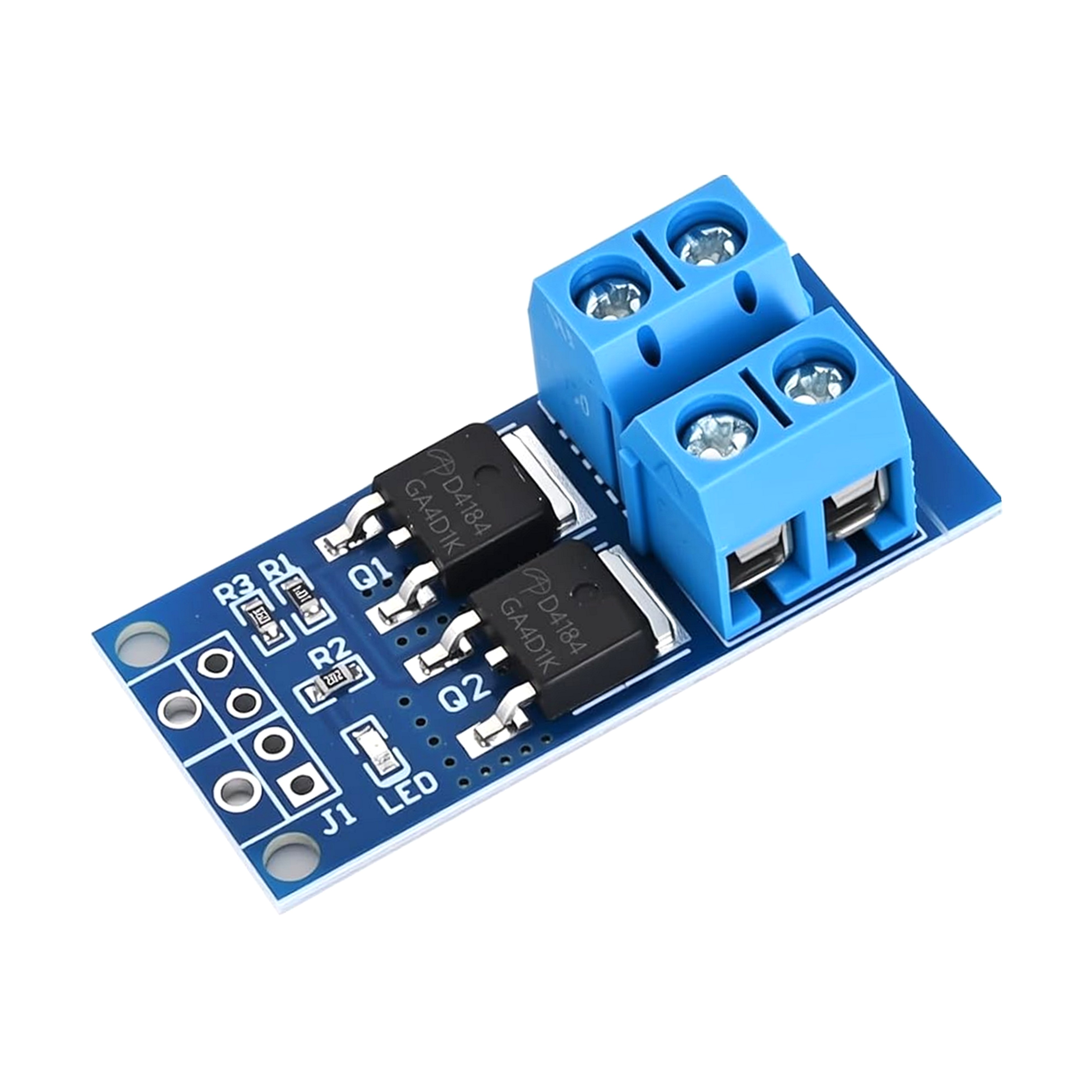

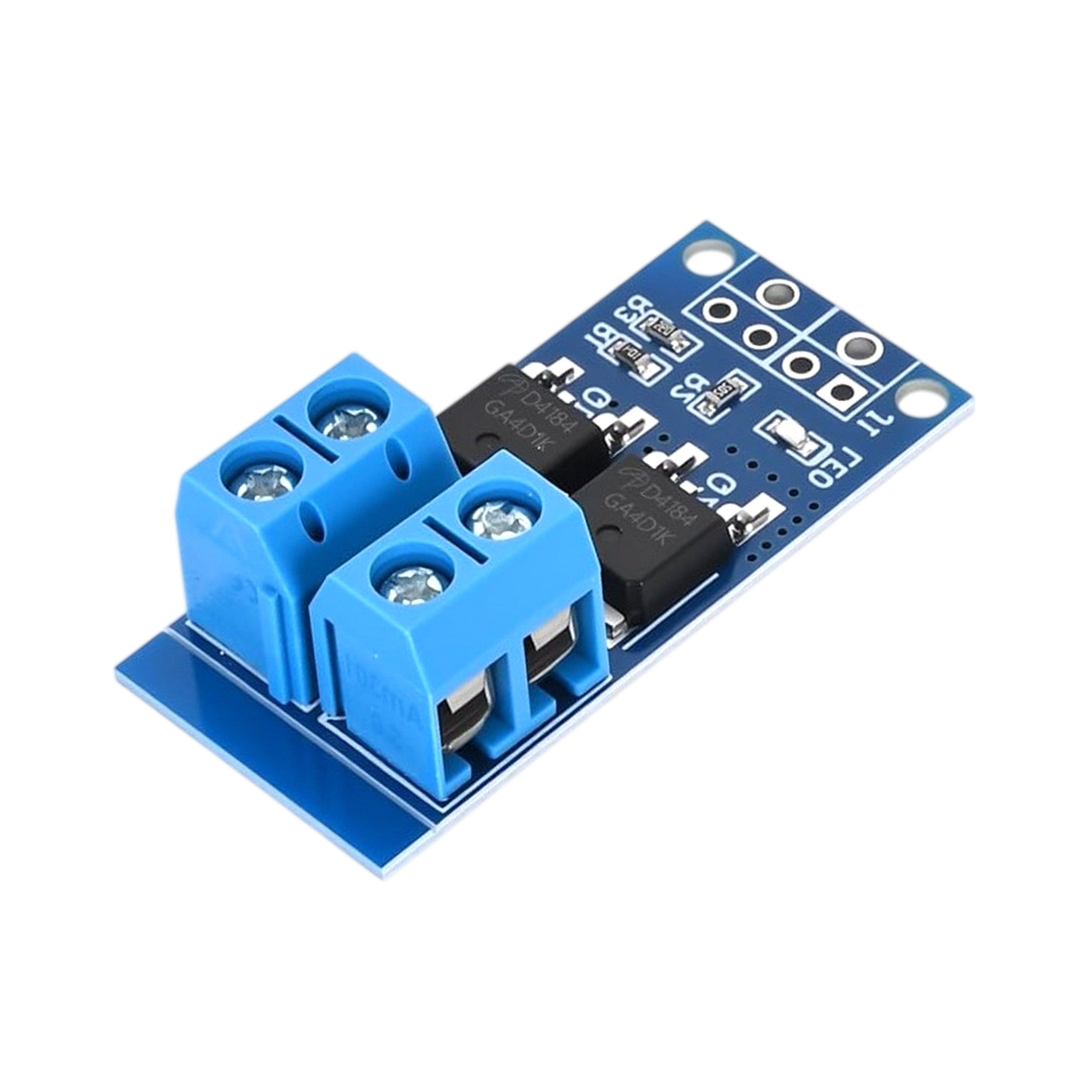

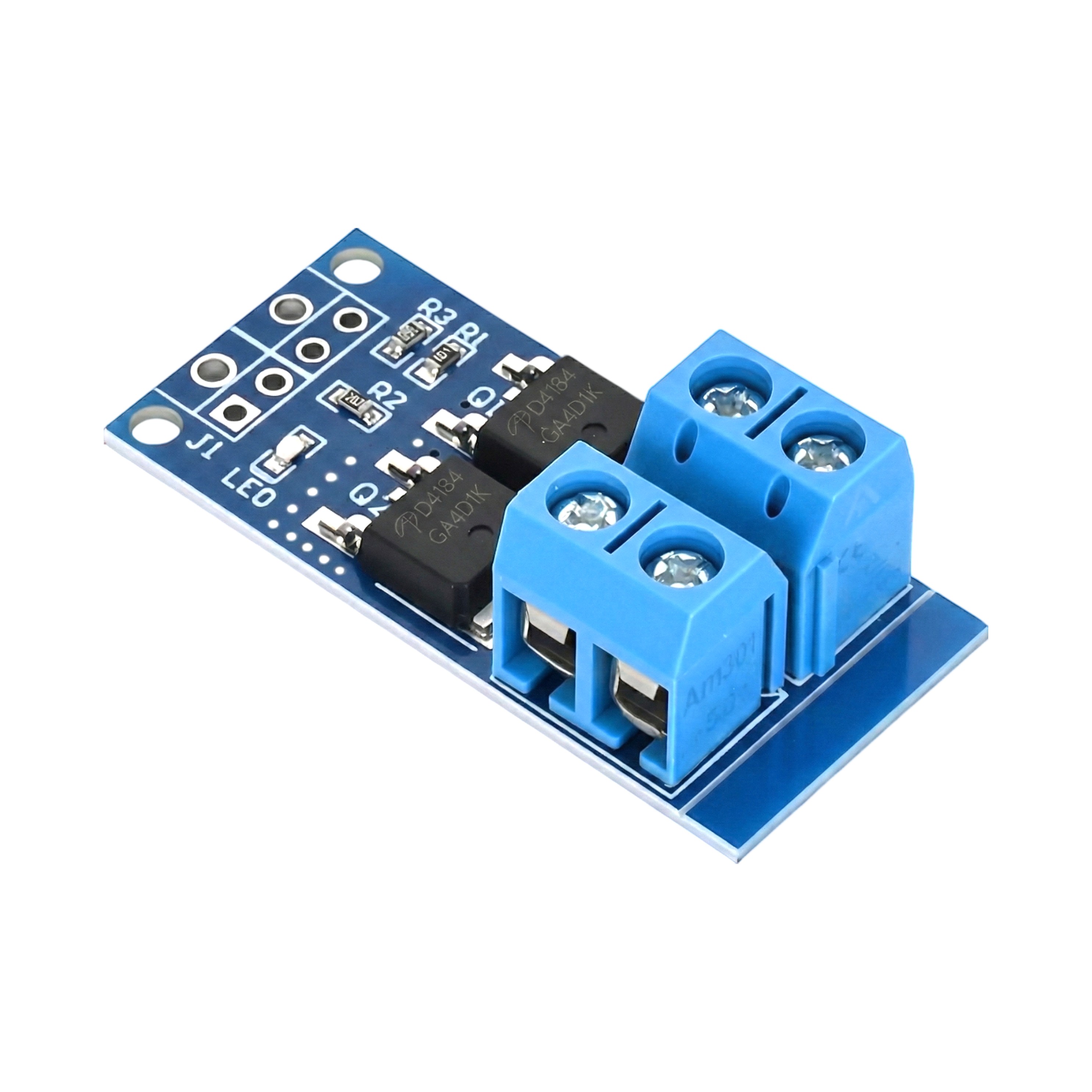

The DIYables MOSFET PWM Trigger Switch Drive Module is a high-power driver board designed for controlling DC loads up to 400W with Arduino, ESP32, ESP8266, and Raspberry Pi microcontrollers. This versatile module supports DC 5V to 36V input and output, making it compatible with 12V and 24V systems commonly used in motors, LED strips, pumps, and solenoids. With 15A continuous current capacity and up to 30A peak current (with proper cooling), this MOSFET driver provides reliable high-power switching and PWM control for a wide range of DIY electronics, robotics, and automation projects.

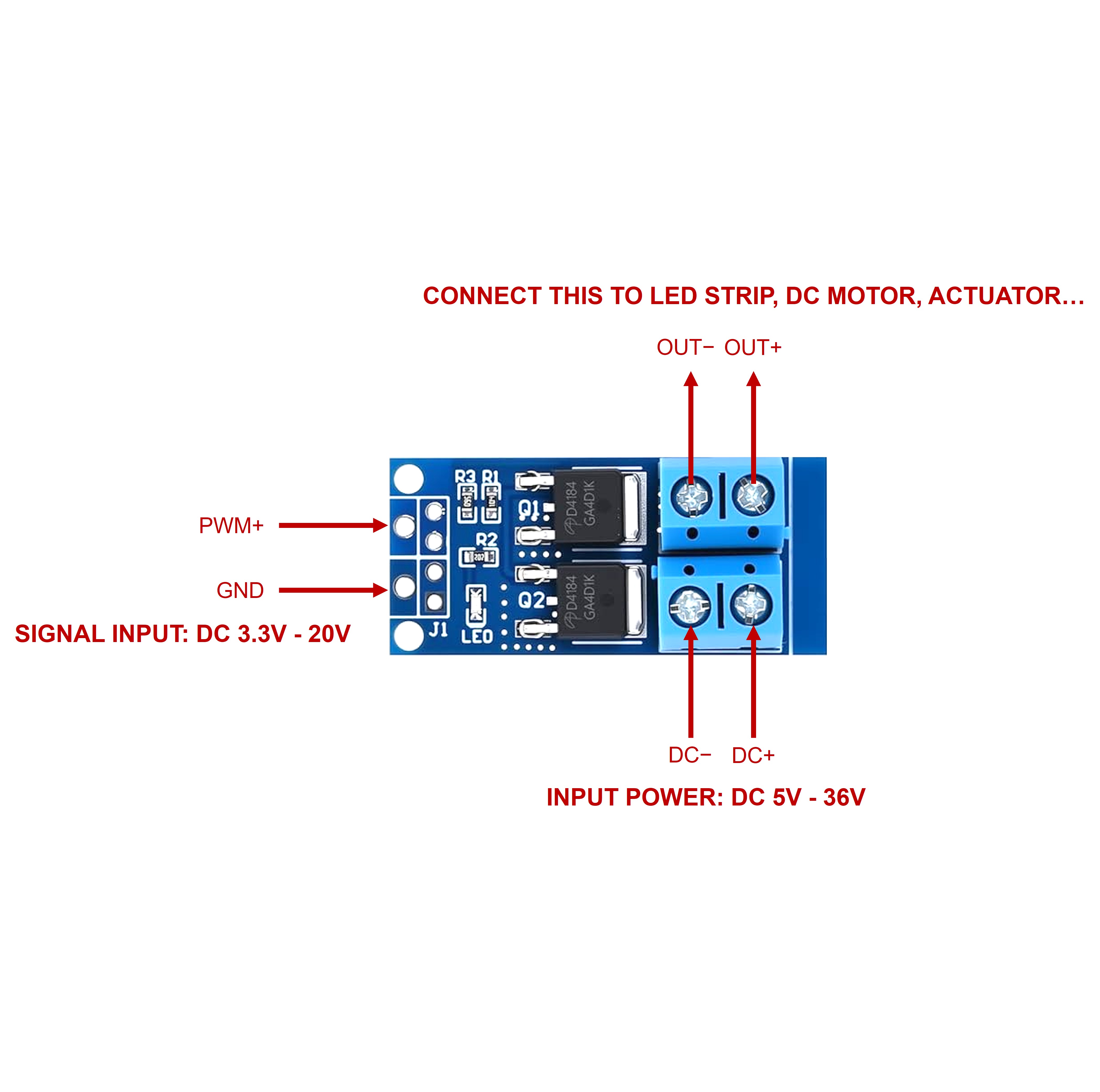

The module accepts 3.3V to 20V digital high-level trigger signals and PWM signals up to 20kHz frequency, allowing direct control from microcontroller GPIO pins without additional level shifting circuits. The compact design measures just 3.4 cm × 1.7 cm × 1.2 cm, making it easy to integrate into space-constrained projects, while the wide operating temperature range of -40°C to 85°C ensures reliable performance in various environmental conditions. The MOSFET-based design offers efficient switching with minimal heat generation compared to linear control methods.
Ideal for DC motor speed control, LED and LED strip brightness dimming, water pump flow regulation, solenoid valve switching, and high-power DC load control. Perfect for robotics projects requiring precise motor speed adjustment, smart lighting systems with dimming capabilities, home automation with pump and valve control, and industrial automation applications. Compatible with Arduino, ESP32, ESP8266, and Raspberry Pi platforms through simple PWM signal control from GPIO pins.
Key Features
- Wide Voltage Range — Supports DC 5V to 36V input and output, compatible with 12V and 24V systems
- High Power Output — Delivers 15A continuous current and up to 30A peak with cooling for up to 400W loads
- PWM Signal Control — Accepts PWM signals up to 20kHz frequency for precise speed and brightness control
- Logic Level Compatible — 3.3V to 20V digital high-level trigger for direct microcontroller GPIO control
- No Level Shifting Required — Direct 3.3V logic compatibility with Arduino, ESP32, ESP8266, Raspberry Pi
- Efficient MOSFET Design — Low heat generation and high efficiency compared to linear control methods
- Compact Size — Small footprint 3.4 cm × 1.7 cm × 1.2 cm for space-constrained projects
- Wide Temperature Range — Operates from -40°C to 85°C for indoor and outdoor applications
- DC Motor Speed Control — Precise PWM-based speed adjustment for DC motors and fans
- LED Dimming Capability — Smooth brightness control for LEDs and LED strips
- Pump Flow Regulation — Variable speed control for water pumps and air pumps
- Solenoid Valve Switching — High-power switching for solenoid valves and electromagnetic actuators
- Wide Compatibility — Works with Arduino, ESP32, ESP8266, Raspberry Pi, and other microcontrollers
- Tutorial Support — Comprehensive PWM and motor control tutorials for Arduino, ESP32, ESP8266, and Raspberry Pi
- Versatile Applications — Perfect for robotics, automation, smart lighting, and high-power DC load control
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | MOSFET PWM Trigger Switch Drive Module |
| MOSFET Type | High-power N-channel MOSFET |
| Input Voltage | DC 5V to 36V |
| Output Voltage | DC 5V to 36V (same as input) |
| Continuous Current | 15A |
| Peak Current | 30A (with proper cooling) |
| Maximum Power | 400W |
| Trigger Signal Voltage | 3.3V to 20V (digital high level) |
| PWM Frequency | Up to 20kHz |
| Logic Level | 3.3V compatible (no level shifting required) |
| Control Interface | Digital GPIO (PWM signal) |
| On Resistance | Low RDS(on) for efficient switching |
| Switching Speed | Fast switching for smooth PWM control |
| Operating Temperature | -40°C to 85°C |

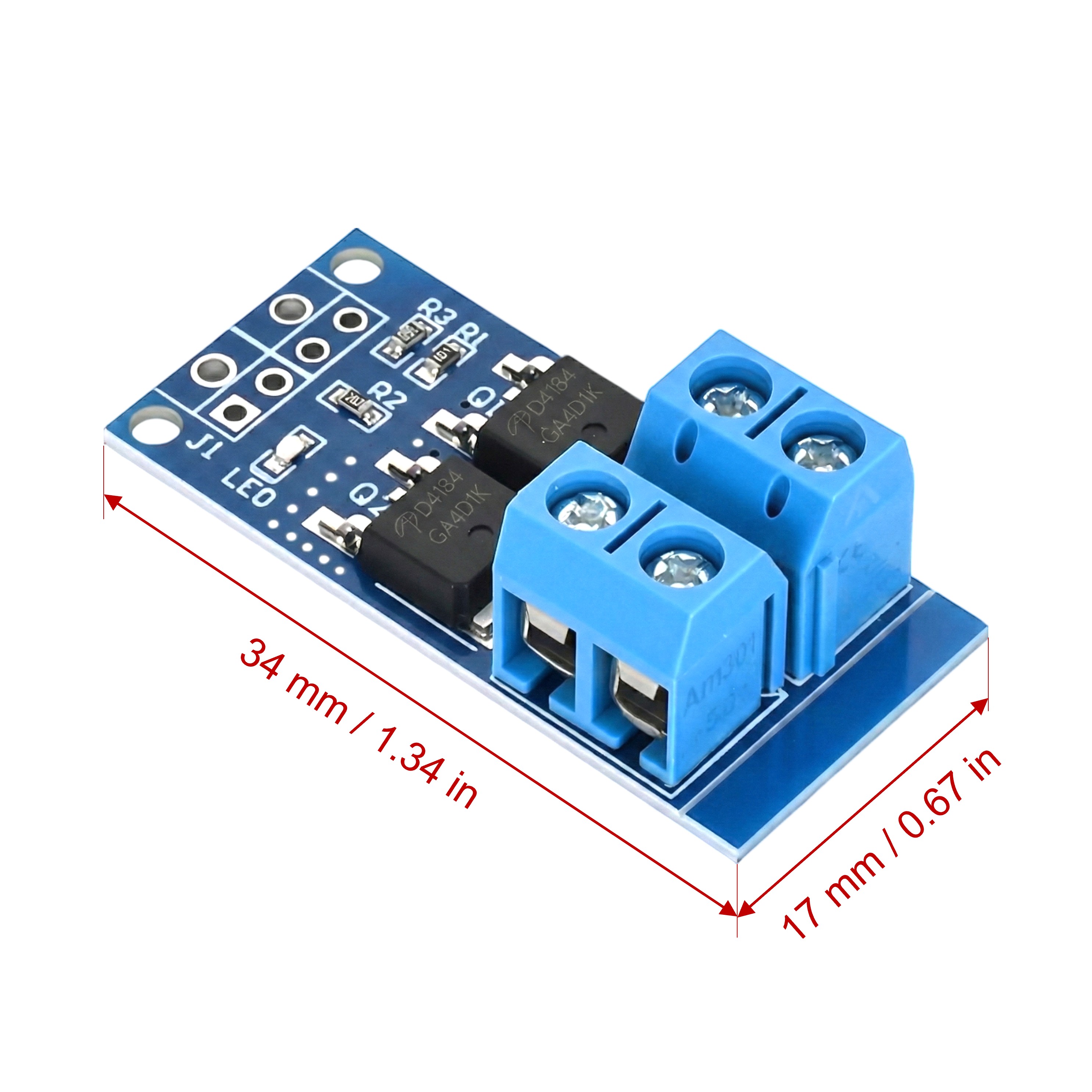

| Dimensions | 3.4 cm × 1.7 cm × 1.2 cm (34mm × 17mm × 12mm) |
| Weight | ~5g |
| Package Quantity | 1 piece |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, and other microcontrollers with PWM output |
| Applications | DC motor speed control, LED strip dimming, pump flow regulation, solenoid valve switching, high-power DC load control, robotics, automation |
COMPATIBLE HARDWARE
- Arduino Boards (UNO, Mega, Nano, etc.) — PWM output control via GPIO pins
- ESP32 Development Boards — 3.3V PWM signal control with high-frequency capability
- ESP8266 Boards (NodeMCU, Wemos D1) — Direct 3.3V PWM control for motor and LED applications
- Raspberry Pi (all models) — PWM output via GPIO for motor and dimmer control
- Arduino Uno R4 WiFi/Minima — PWM-capable GPIO pins for motor speed control
- DC Motors (6V-36V) — Variable speed control for robotics and automation
- Brushless DC Fans — PWM-based speed control for cooling systems
- LED Strips (12V, 24V) — Smooth brightness dimming for lighting projects
- High-Power LEDs — PWM dimming control for high-brightness applications
- Water Pumps (12V, 24V) — Flow rate control for aquariums, fountains, and irrigation
- Air Pumps — Variable speed control for aquarium aeration and pneumatic systems
- Solenoid Valves (12V, 24V) — High-power switching for fluid and gas control
- Electromagnetic Locks — Power switching for access control systems
- Linear Actuators — Speed and position control for automation projects
- Heating Elements — PWM power control for temperature regulation (with proper heat management)
