DIYables DIYables DIP Switch 2.54mm Pitch 8 Position Red Through Hole PCB Mount for Arduino Address Setting Configuration Circuit Board
Click to zoom
Quick Overview

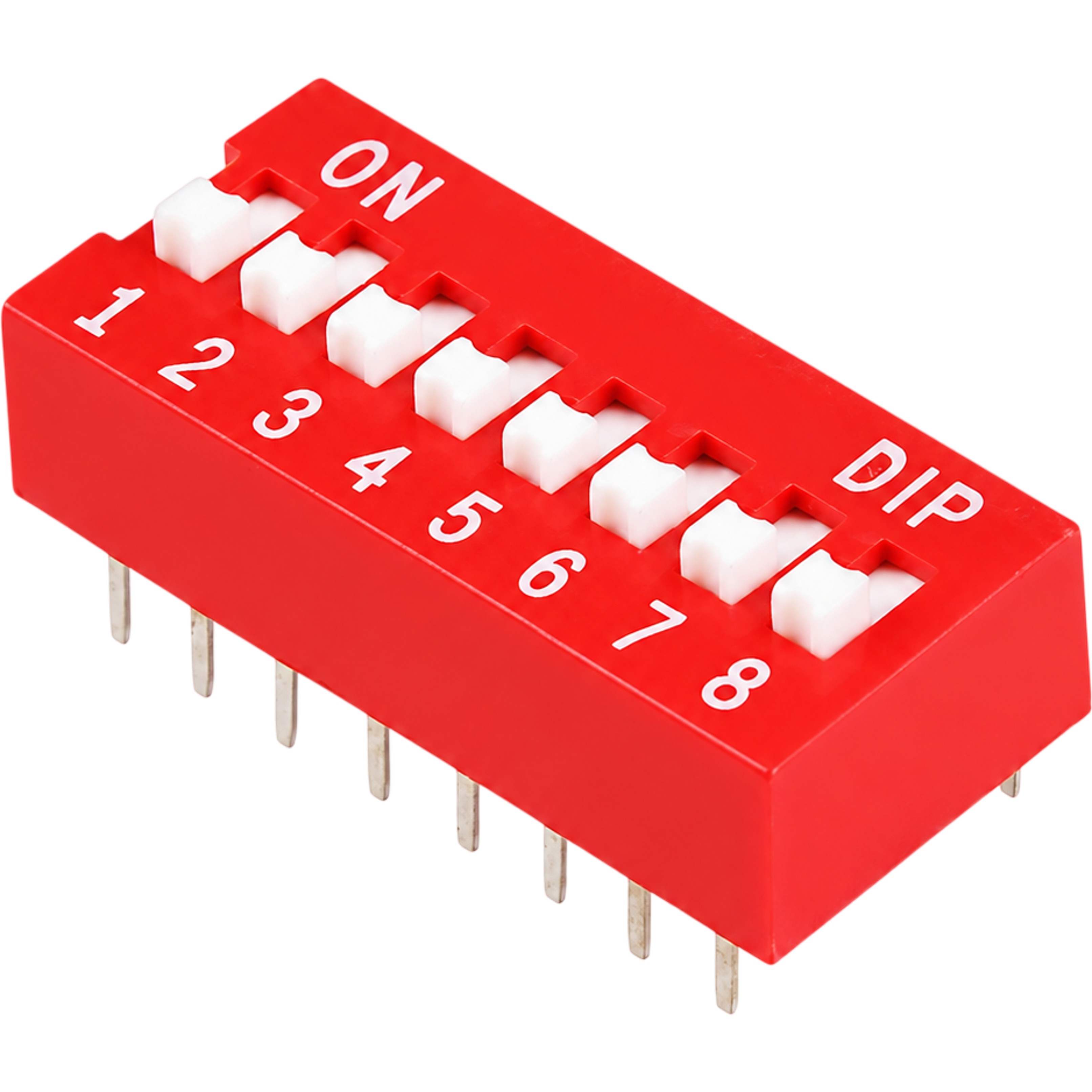

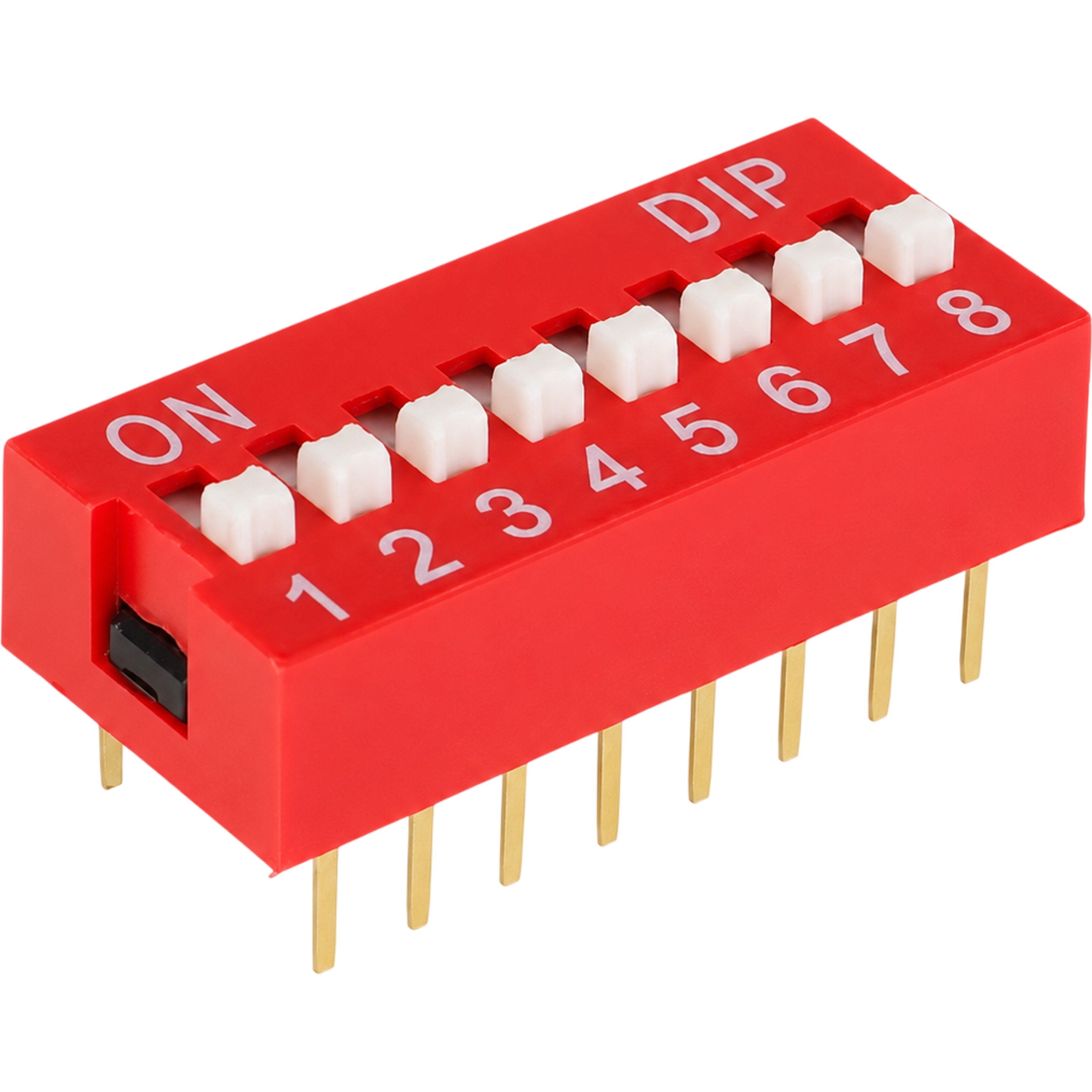

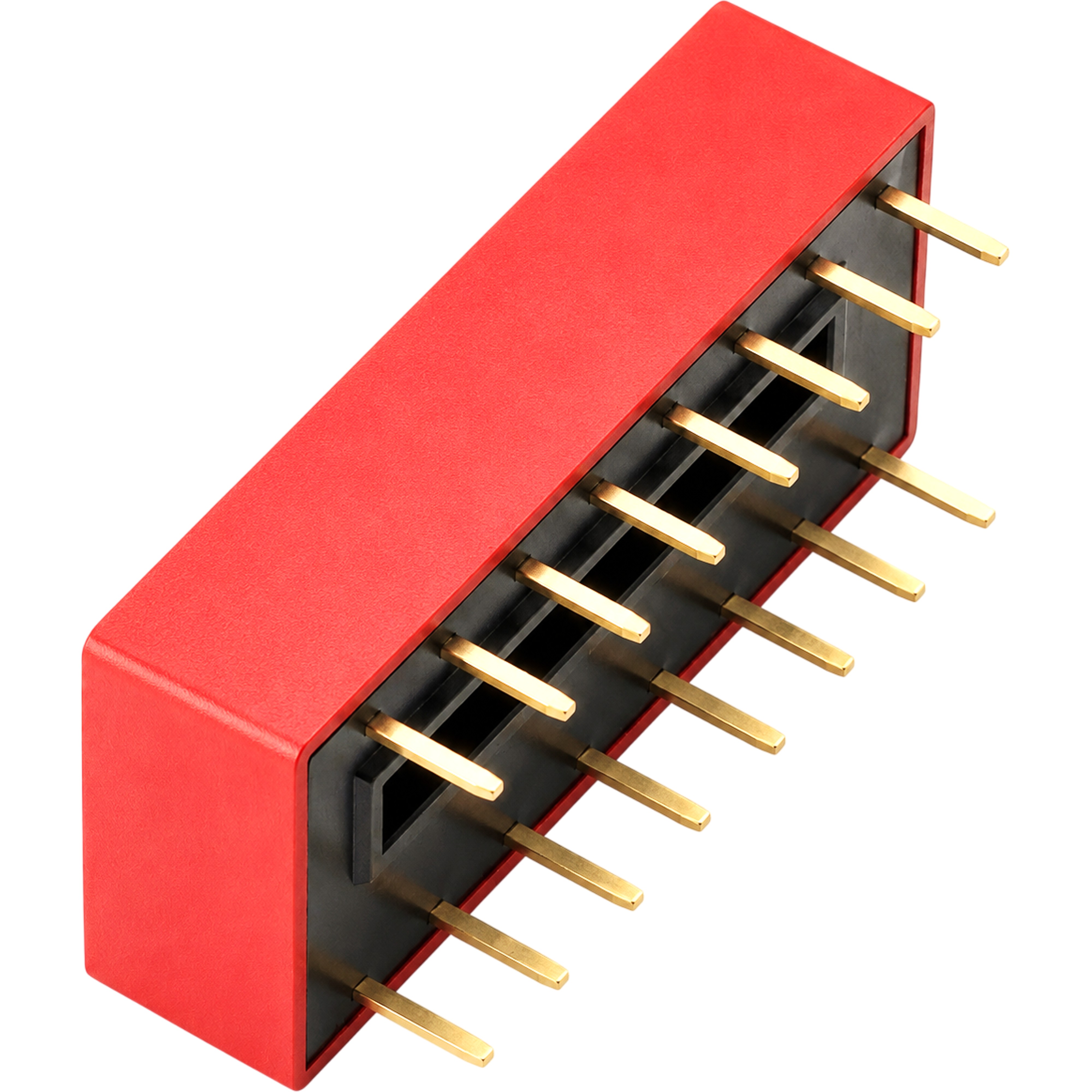

This DIYables 8-position DIP switch is a red 8P DIP switch with 2.54mm standard pitch for through-hole PCB mounting, ideal for address configuration, jumper selection, and circuit enable or disable functions. It's rated for over 1500V dielectric withstand (500VAC, 1 minute), with 100 milliohm maximum contact resistance and 1000 megaohm minimum insulation resistance at 500VDC for reliable switching.
The switch is rated for over 10,000 electrical and mechanical switching cycles, with a storage temperature range of -25°C to 85°C for durable long-term performance. Its standard 2.54mm pitch fits standard PCB footprints and breadboards for easy integration into Arduino, ESP32, and custom circuit prototyping and design projects.
This listing includes 10 red 8-position DIP switches, suitable for PCB prototyping, network configuration, device addressing, and electronic hobby projects.
Key Features
- 8-Position DIP Switch — Red 8P DIP switch with 2.54mm standard pitch for through-hole PCB mounting
- Address and Configuration Setting — Ideal for address configuration, jumper selection, and circuit enable/disable functions
- High Electrical Ratings — Rated over 1500V dielectric withstand (500VAC, 1 minute), 100 milliohm max contact resistance, 1000 megaohm min insulation resistance at 500VDC
- Long Service Life — Rated for over 10,000 electrical and mechanical switching cycles
- Wide Storage Temperature — Operates reliably from -25°C to 85°C for durable long-term performance
- Standard 2.54mm Pitch — Fits standard PCB footprints and breadboards for easy integration
- 10-Pack Value Set — Includes 10 red 8-position DIP switches for PCB prototyping, network configuration, and device addressing
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | 8-Position DIP Switch |
| Color | Red |
| Pitch | 2.54mm (0.1") |
| Mounting Type | Through-hole (PCB mount) |
| Dielectric Withstand | Over 1500V (500VAC, 1 minute) |
| Contact Resistance | 100 milliohm maximum |
| Insulation Resistance | 1000 megaohm minimum at 500VDC |
| Switching Life | Over 10,000 cycles (electrical and mechanical) |
| Storage Temperature | -25°C to 85°C |
| Package Quantity | 10 pieces |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, any 2.54mm PCB or breadboard |
Tutorials
COMPATIBLE HARDWARE
- Arduino boards (UNO, Mega, Nano, etc.) — Digital input pins for reading switch positions
- Arduino Uno R4 WiFi/Minima — Digital input pins
- ESP32 development boards — GPIO input pins
- ESP8266 boards (NodeMCU, Wemos D1, etc.) — GPIO input pins
- Raspberry Pi (all models) — GPIO input pins
- Raspberry Pi Pico — GPIO input pins
- Custom PCB designs — Standard 2.54mm through-hole footprint
- Breadboards — Direct breadboard-compatible pin spacing
