DIYables 2.54mm 40 Pin Single Row Male Header Connector Straight Black for Breadboard PCB Prototyping 50 Pack
Click to zoom
Quick Overview
The DIYables 2.54mm 40-Pin Single Row Male Header Connector is a versatile prototyping component designed for breadboard circuits, PCB assembly, Arduino projects, and DIY electronics. Featuring the industry-standard 2.54mm (0.1 inch) pin spacing, these straight male headers provide reliable electrical connections and mechanical stability for a wide range of electronic prototyping applications.

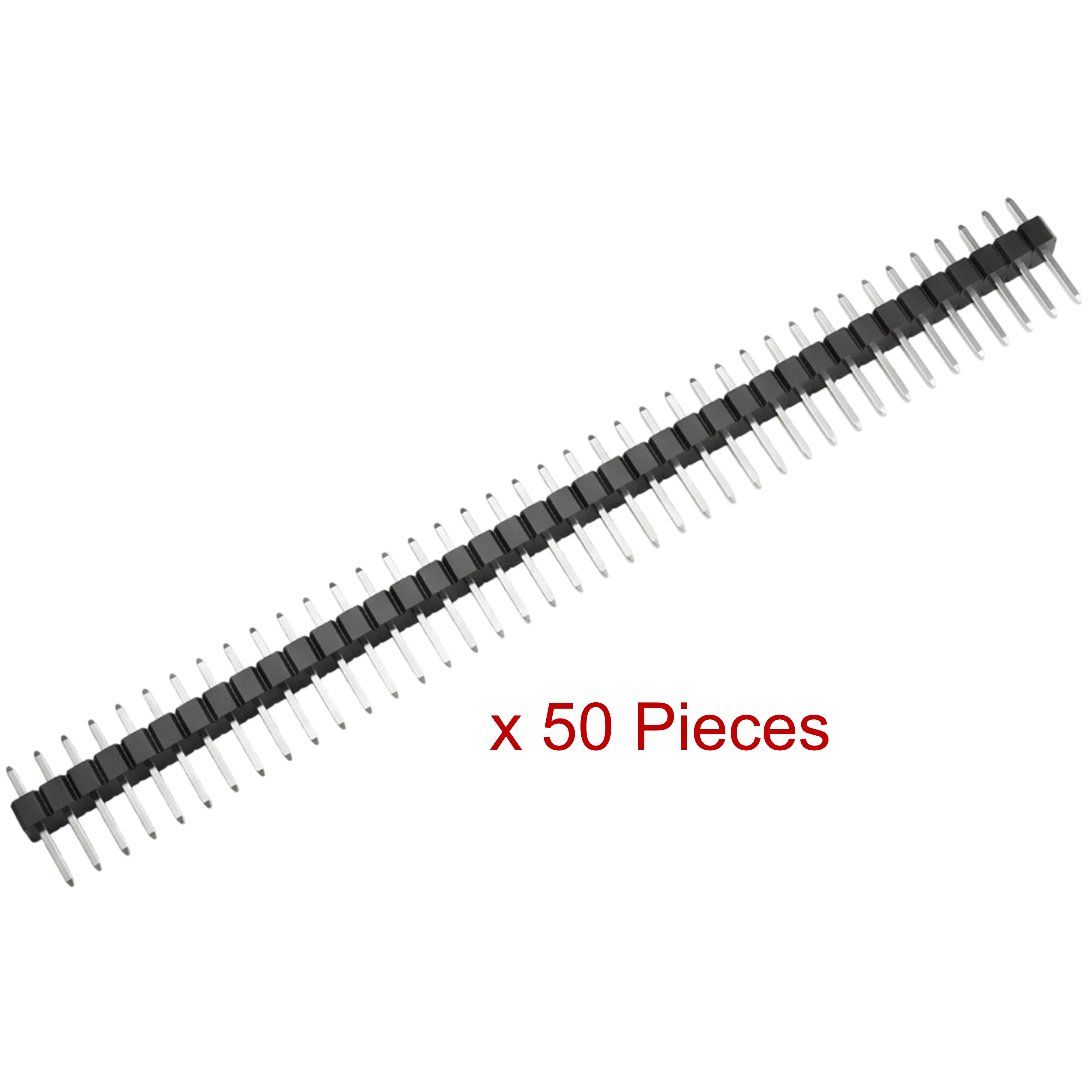

Each header strip includes 40 straight male pins in a single row configuration with a durable black plastic insulating base and solid metal pins. The headers can be easily cut or snapped to any required length, making them perfect for custom projects that need specific pin counts. Whether you need 2 pins, 8 pins, 20 pins, or any other configuration, simply break the strip at the desired position for a clean, professional result.
This 50-pack value set is ideal for bulk prototyping, repairs, educational workshops, electronics labs, and maker spaces. The straight vertical pin design ensures secure insertion into breadboards, female headers, and PCB through-holes with excellent contact stability. Compatible with Arduino boards, ESP32, ESP8266, Raspberry Pi, prototype boards, and all standard 2.54mm pitch electronics. Perfect for building shields, breakout boards, custom modules, sensor connections, and general-purpose prototyping.
Key Features
- Standard 2.54mm Pitch — Features industry-standard 2.54mm spacing compatible with breadboards, PCBs, Arduino, ESP32, ESP8266, Raspberry Pi, and most DIY electronics
- 40-Pin Single Row Design — Each header includes 40 straight male pins in a single row and can be easily cut to required length for custom projects
- Straight Male Connector — Vertical straight pin configuration ensures reliable insertion and stable electrical connection on prototyping boards

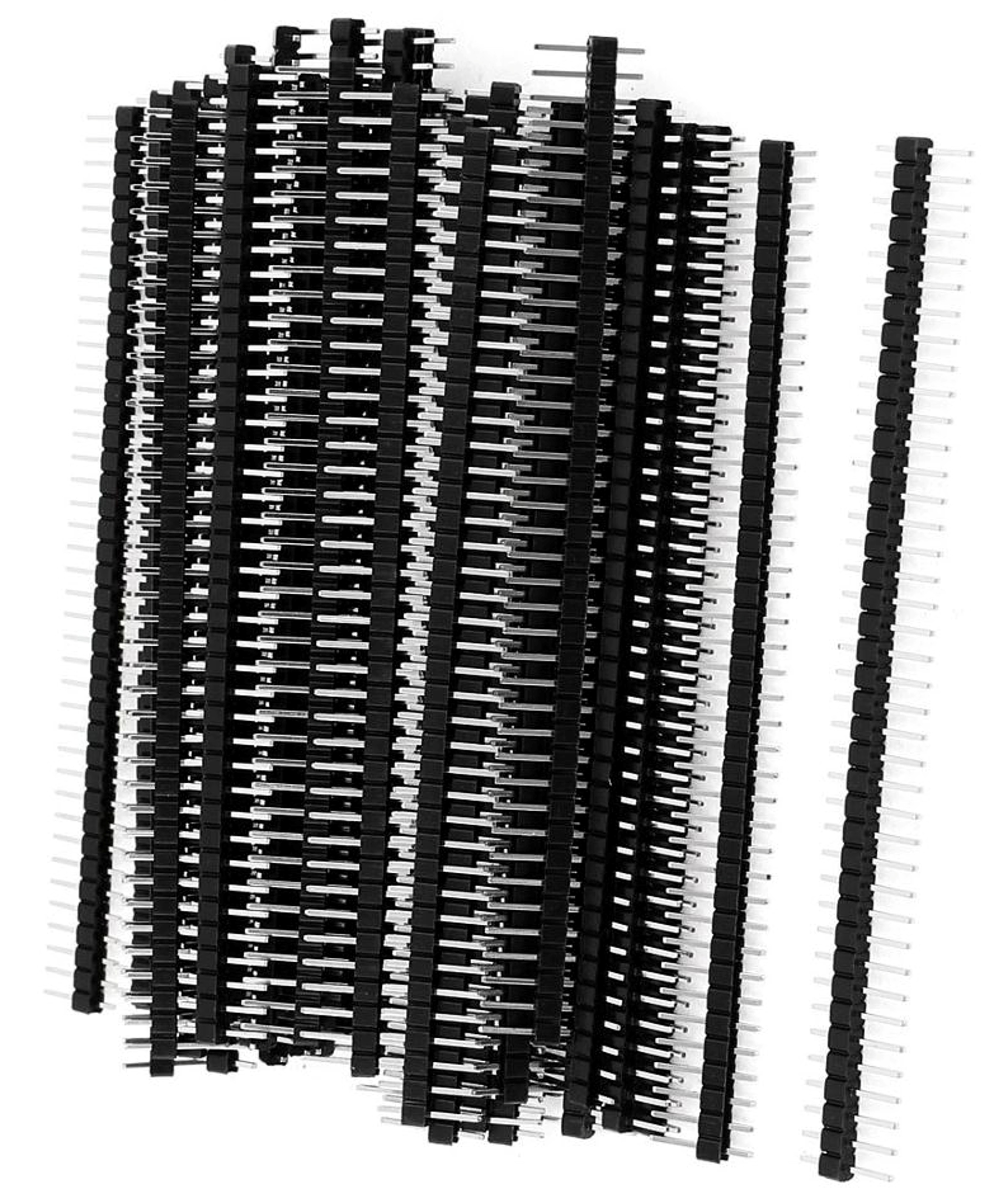

- Durable Black Plastic Base — Made with sturdy black insulating housing and solid metal pins for long-term use and repeated soldering

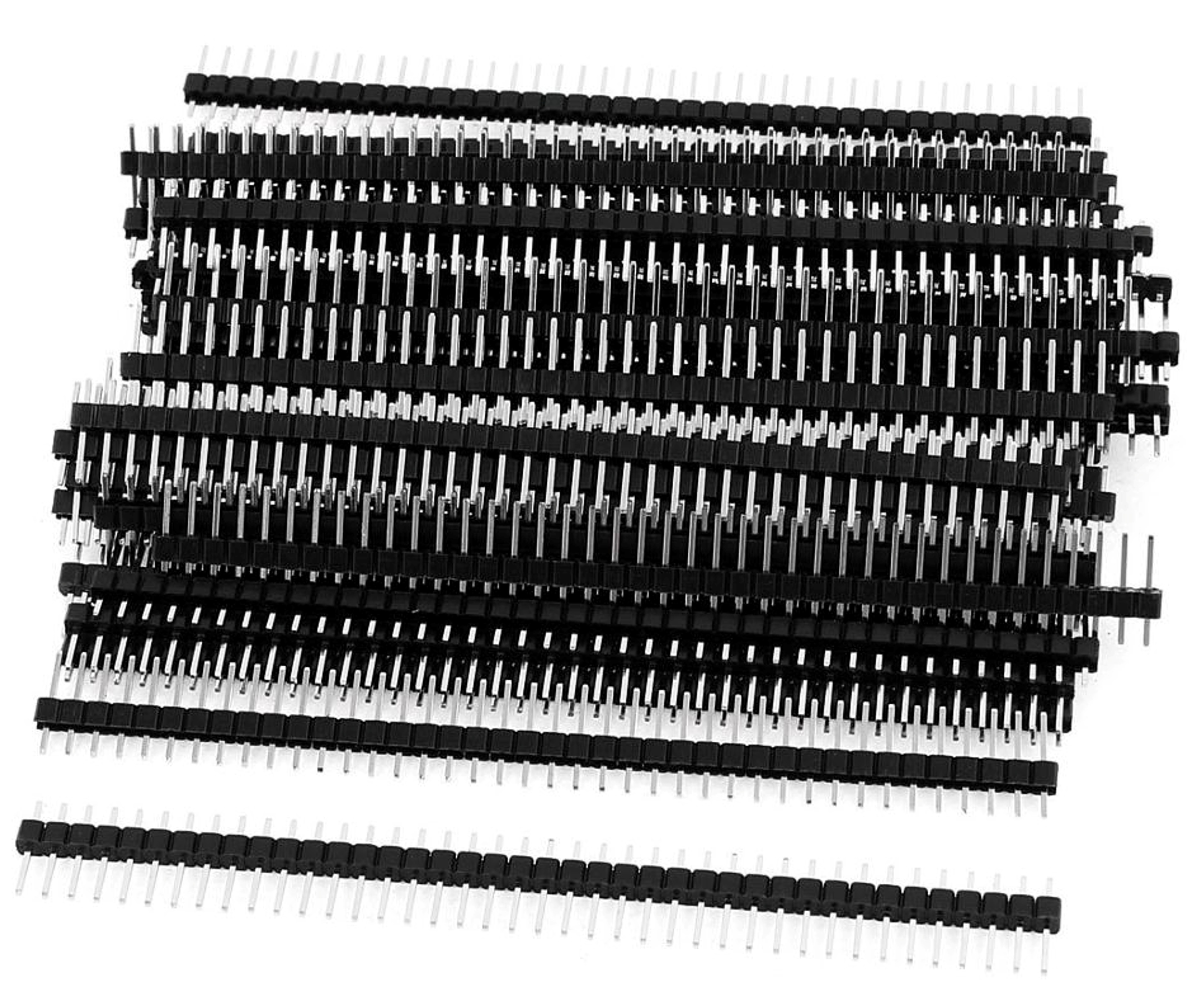

- 50-Pack Value Set — Includes 50 pieces of 40-pin male headers ideal for bulk prototyping, repairs, education, and electronics workshops
- Breakable Strip Design — Snap or cut to any pin count needed for flexible project configurations
- Universal Compatibility — Works with all standard 2.54mm breadboards, female headers, and PCB through-holes
- Excellent Conductivity — Solid metal pins provide reliable electrical connection and low contact resistance
- Easy Soldering — Pins designed for through-hole soldering with excellent heat distribution
- Professional Black Finish — Black plastic housing provides clean, professional appearance in finished projects
- Versatile Applications — Perfect for Arduino shields, breakout boards, sensor modules, custom PCBs, and prototype development
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | Male Pin Header Connector |
| Pin Count | 40 pins per strip |
| Row Configuration | Single row |
| Pin Spacing (Pitch) | 2.54mm (0.1 inch) |
| Connector Type | Straight (vertical) |
| Gender | Male |
| Pin Material | Solid metal |
| Insulator Material | Black plastic (insulating housing) |
| Color | Black |
| Pin Length | Approximately 11.5mm total (6mm insert, 5.5mm protrusion) |
| Pin Diameter | 0.64mm (typical) |
| Breakable | Yes, can be cut to any length |
| Operating Temperature | -40°C to +105°C (typical) |
| Current Rating | 3A per pin (typical) |
| Voltage Rating | 500V AC (typical) |
| Contact Resistance | <30mΩ |
| Insulation Resistance | >1000MΩ |
| Package Quantity | 50 strips (40 pins each) |
| Applications | Breadboard prototyping, PCB assembly, Arduino shields, sensor modules, breakout boards, custom electronics |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, prototype boards, all 2.54mm pitch electronics |
PACKAGE
A package includes:
| Qty | Items |
|---|---|
| 50 | 2.54mm 40-pin single row male header connectors (straight, black) |
COMPATIBLE HARDWARE
- Arduino boards (UNO, Mega, Nano, etc.) — Create custom shields and extensions
- ESP32 development boards — Breakout boards and module connections
- ESP8266 boards (NodeMCU, Wemos D1, etc.) — Custom adapter boards and shields
- Raspberry Pi (all models) — GPIO expansion and HAT development
- Arduino Nano ESP32 — Compact module breakout boards
- Arduino UNO R4 — Shield development and prototyping
- Raspberry Pi Pico — Custom carrier boards and breakouts
- Breadboards (all sizes) — Prototype circuit connections
- Prototype PCBs — Perforated and stripboard assembly
- Female Pin Headers — Mating connector for stackable shields
- Jumper Wires — Connect to female-to-female or female-to-male jumpers
- Sensor Modules — Mount and connect I2C, SPI, UART sensors
- LCD/OLED Displays — Display module connections
- Motor Drivers — Connect motor control boards
- Relay Modules — Interface relay boards to microcontrollers
- Bluetooth/WiFi Modules — Wireless communication module connections
- Power Supply Modules — Voltage regulator and power distribution boards
- Custom PCB Projects — Through-hole mounting for DIY circuit boards
- Electronics Education Kits — Teaching and learning electronics prototyping
