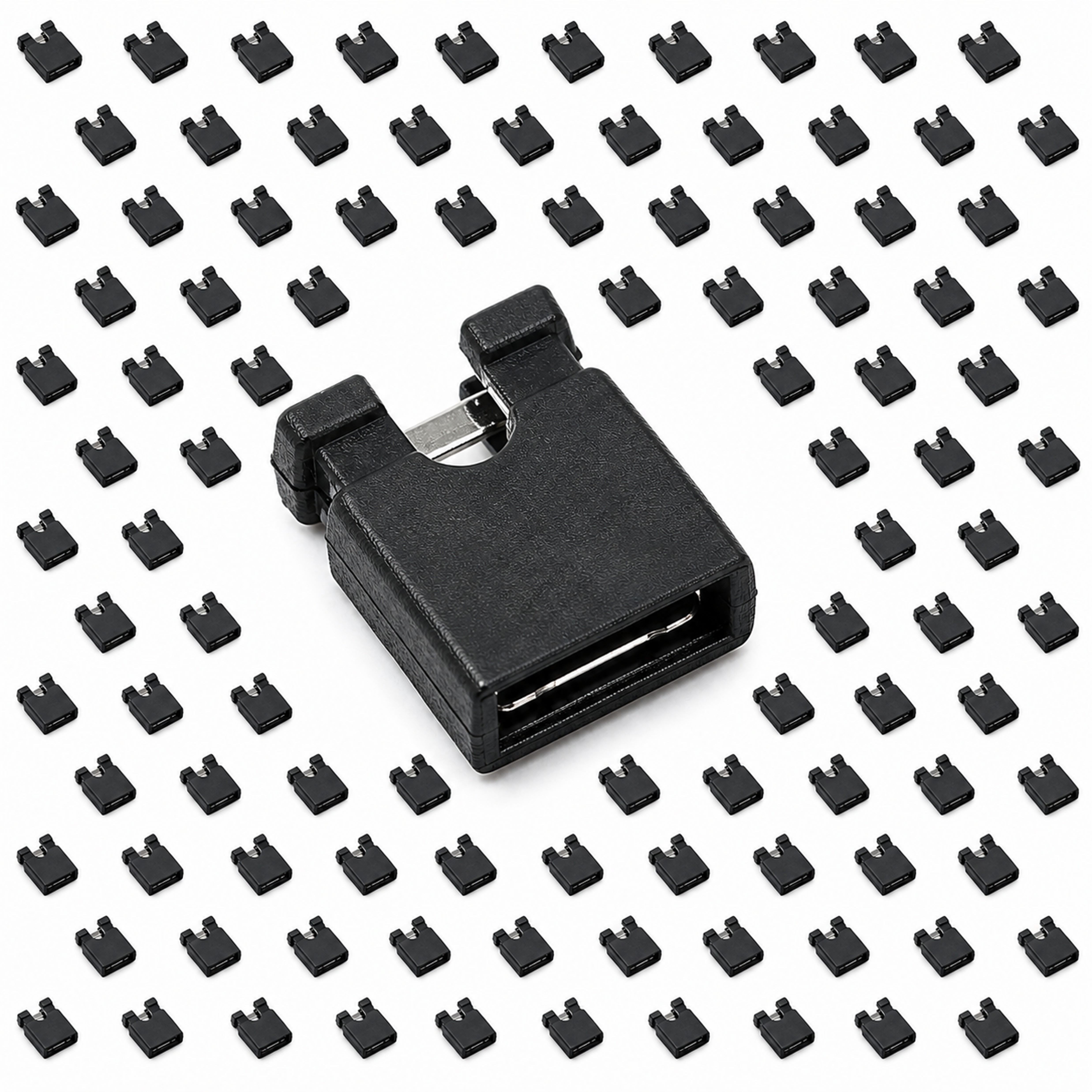

DIYables 2.54mm Jumper Caps 2 Pin Shorting Jumpers for PCB Header Pins, Standard Pitch Shunt Caps, 2A Rated, Thermoplastic Housing, 100 Pieces
Click to zoom
Quick Overview
The DIYables 2.54mm Jumper Caps are 2-pin shorting connectors designed for the industry-standard 2.54mm (0.1 inch) pitch header pins found on Arduino boards, PCBs, and electronics modules. These shunt caps allow you to short two adjacent pins to configure circuit settings, enabling or disabling features on motherboards, development boards, and custom electronics with a simple plug-and-play action.
Each jumper cap features durable copper alloy contacts that ensure reliable conductivity up to 2A current rating, enclosed in a compact black thermoplastic housing. The housing is heat resistant, supporting operating temperatures from -25°C to +105°C for long-lasting use in a wide range of environments.
This 100-piece value pack is perfect for electronics repair, DIY prototyping, testing, circuit configuration, and bulk usage. Ideal for use with Arduino boards, ESP32, ESP8266, Raspberry Pi, motherboards, custom PCBs, and any device with standard 2.54mm pitch header pins.
Key Features
- Standard 2.54mm Pitch — Designed for industry-standard 2.54mm header pins commonly used in Arduino, PCBs, motherboards, and electronics modules
- 2-Pin Shorting Design — Connects and shorts two adjacent pins to configure circuits, enable or disable functions on PCBs and development boards

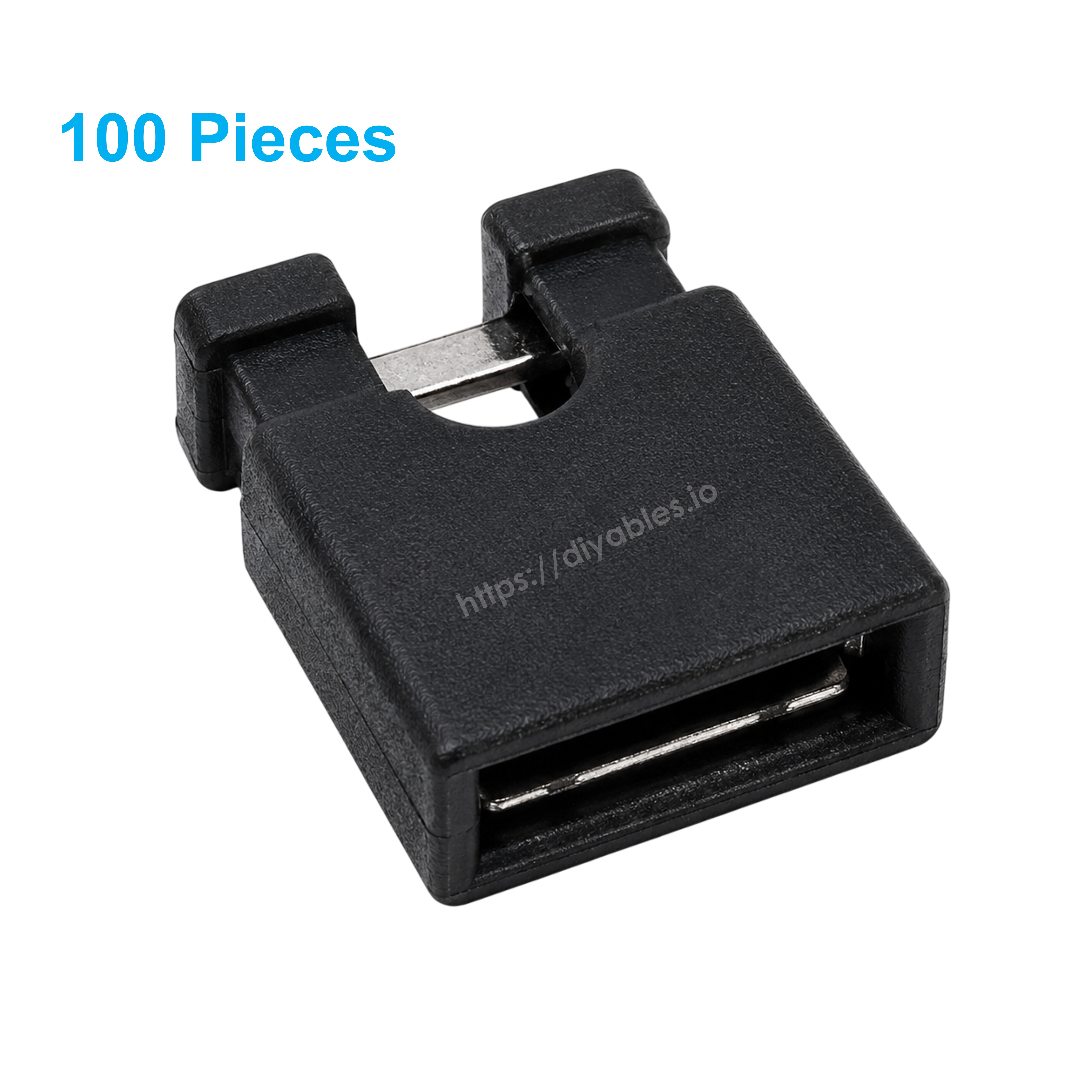

- Copper Alloy Contacts — Durable copper alloy internal contacts ensure reliable conductivity and stable electrical connection
- 2A Current Rating — Supports up to 2A rated current, suitable for most PCB configuration and low-power applications

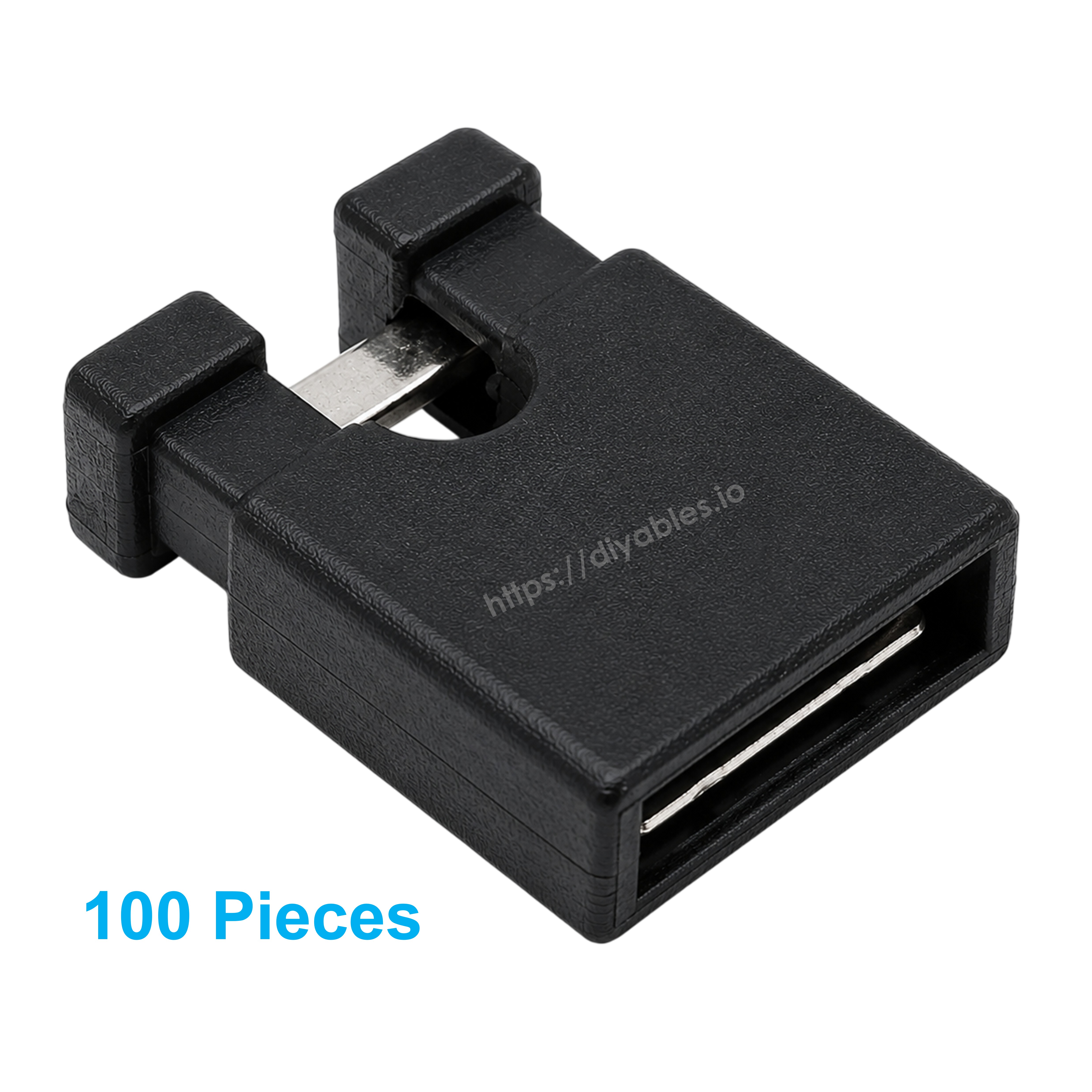

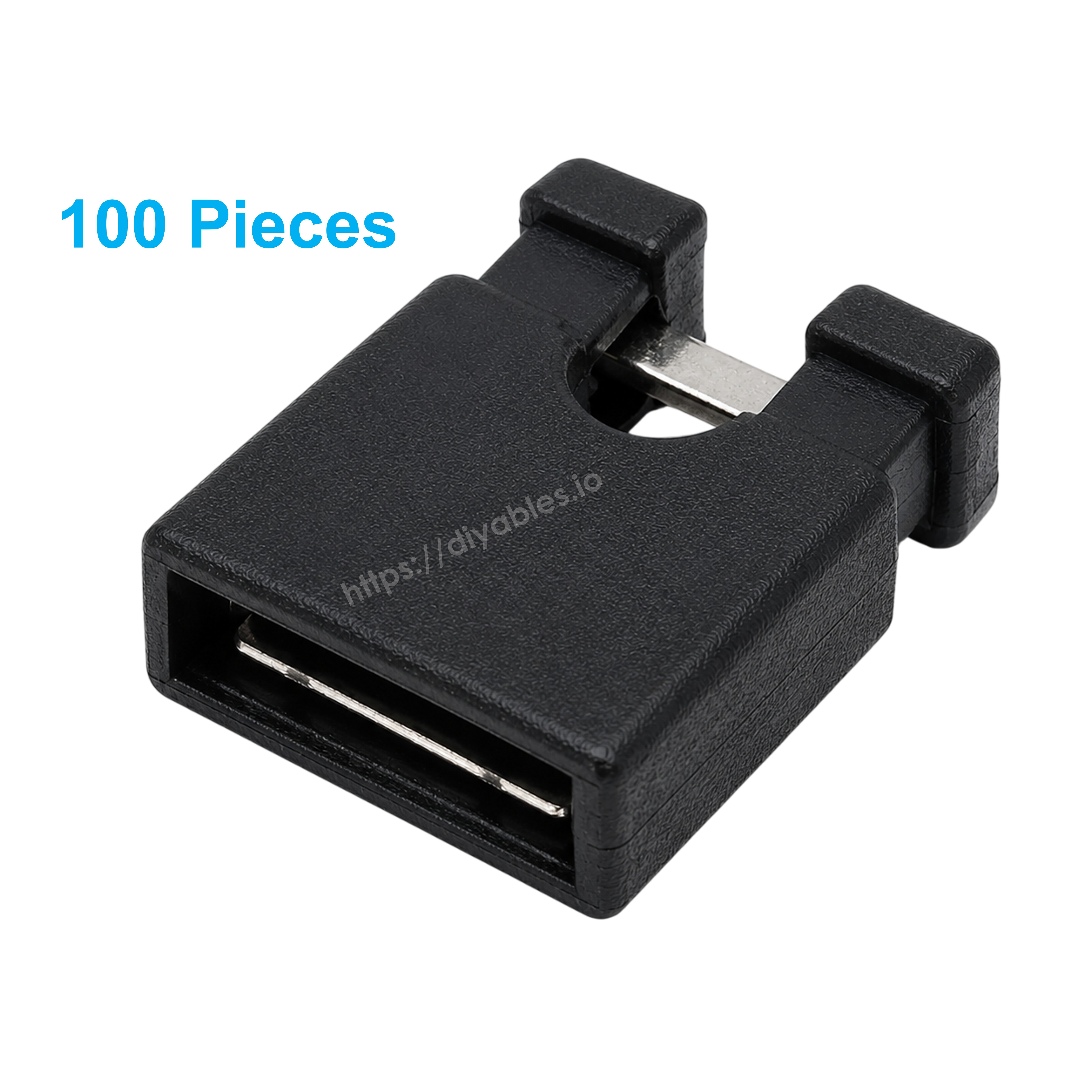

- Heat Resistant Thermoplastic Housing — Compact black thermoplastic housing withstands operating temperatures from -25°C to +105°C for long-lasting use

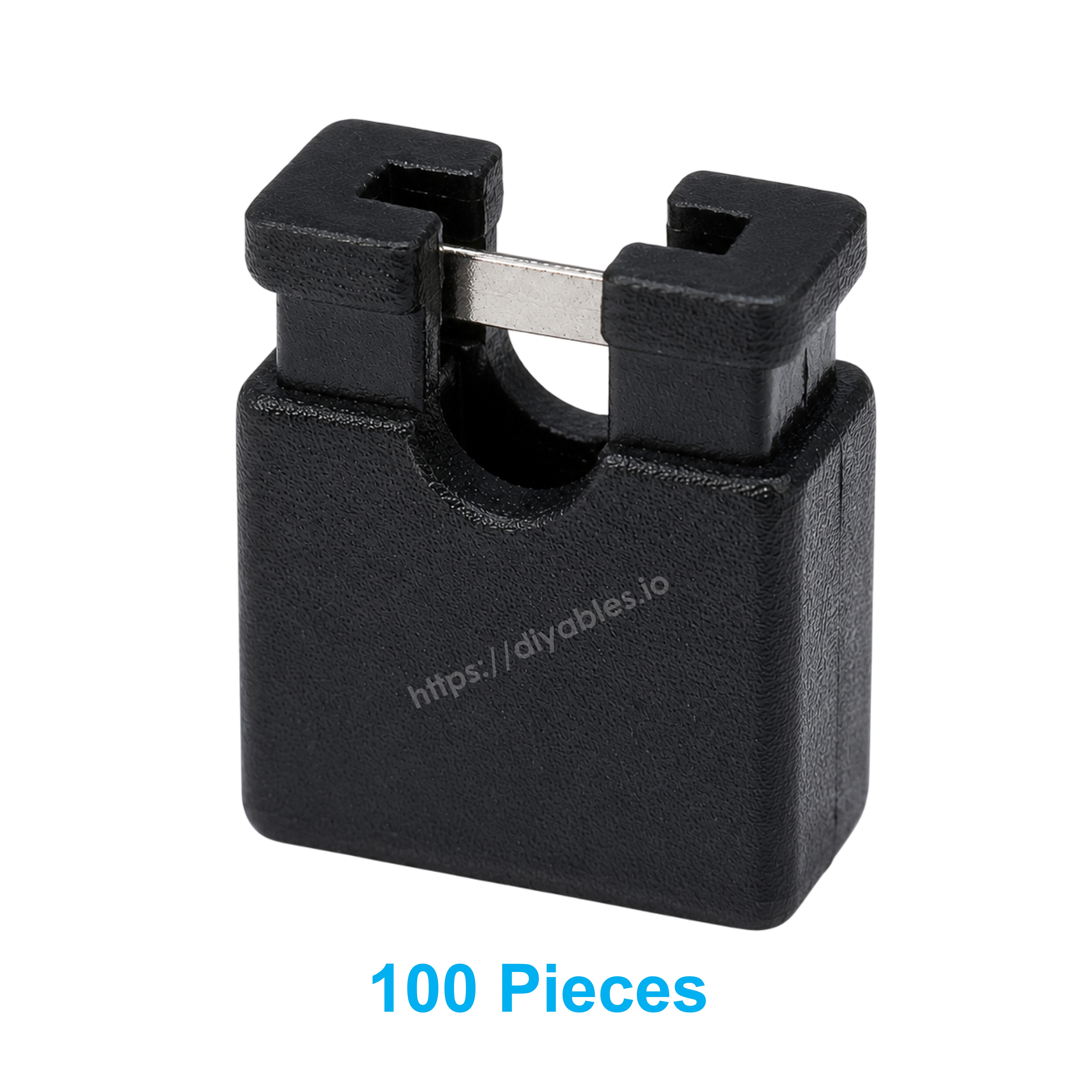

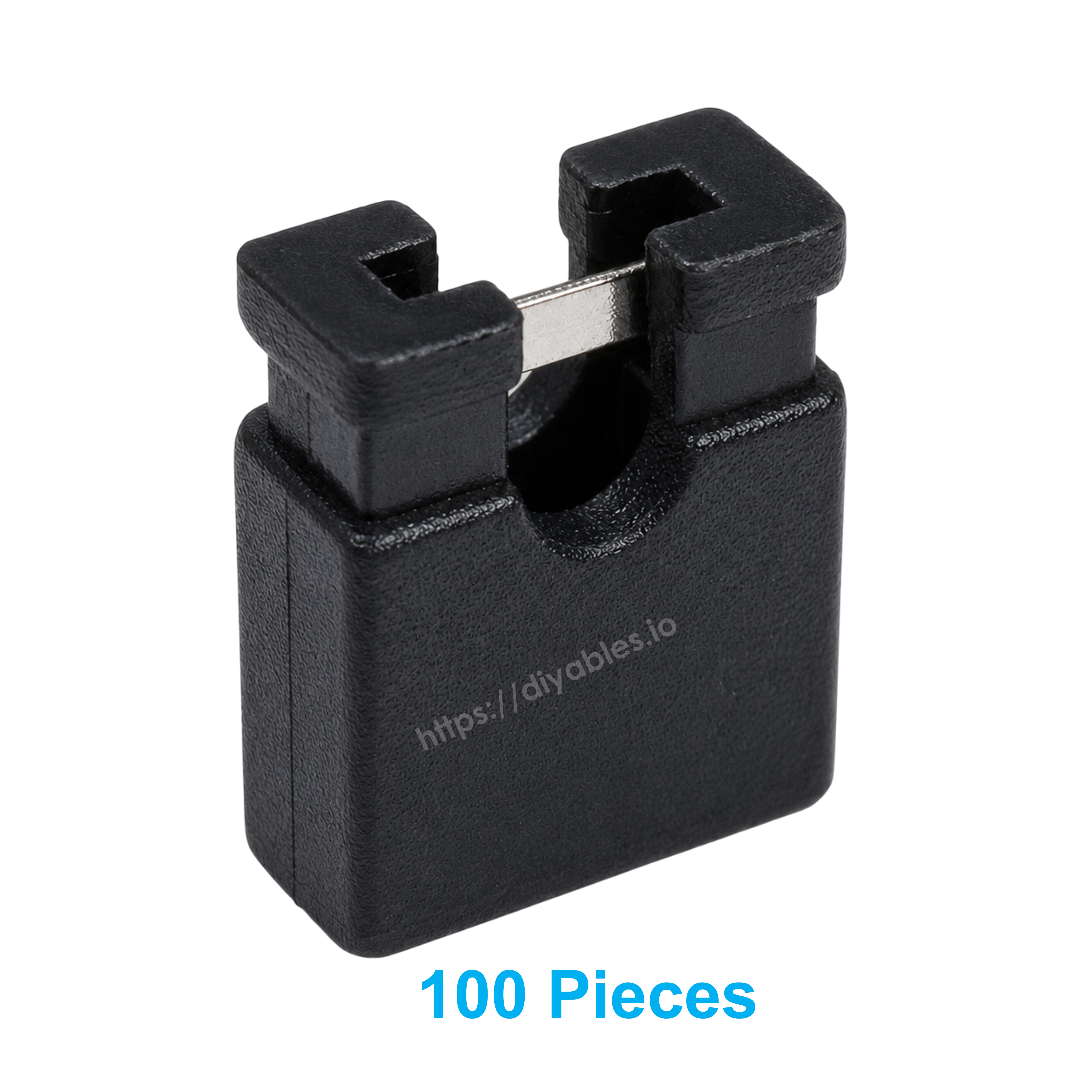

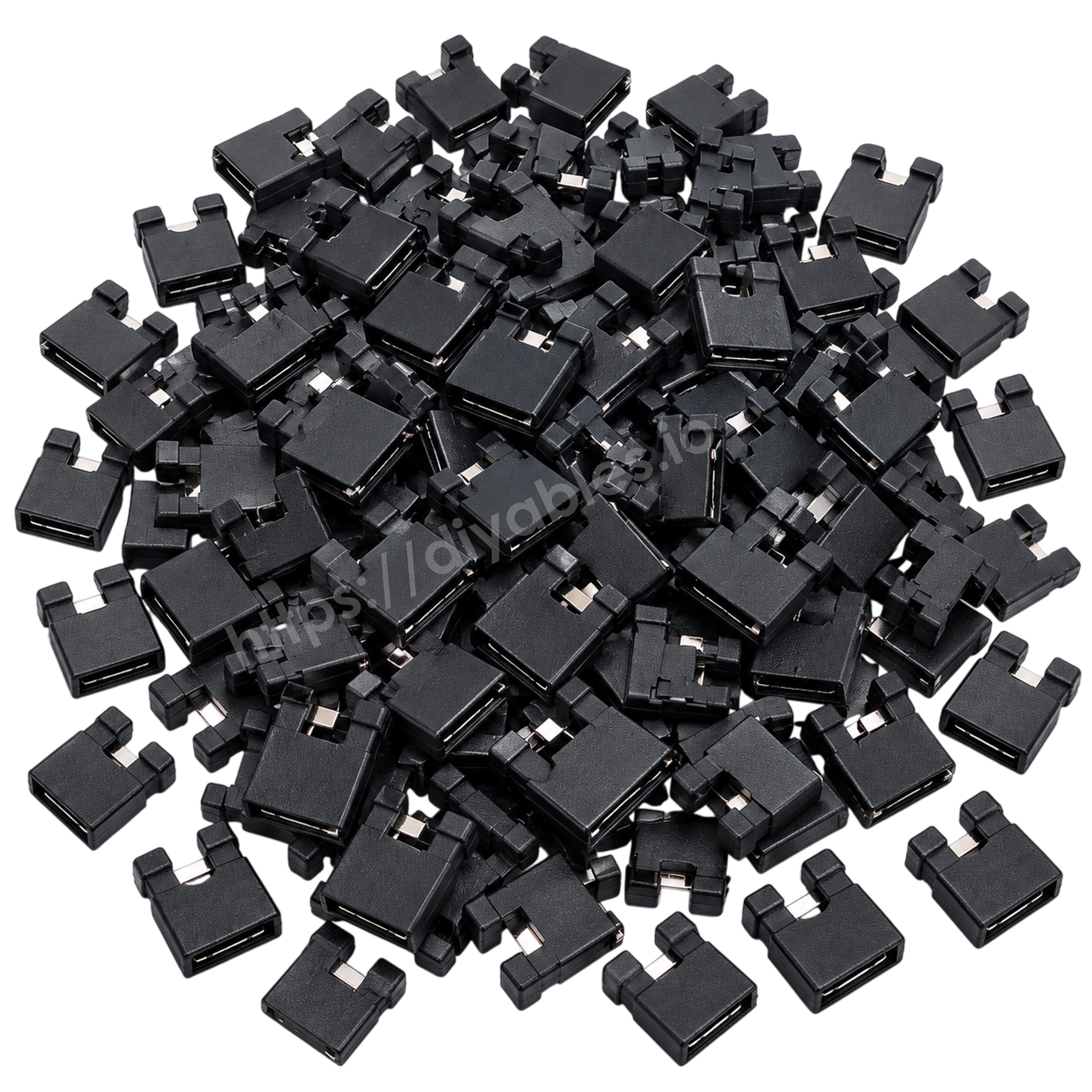

- 100-Piece Value Pack — Includes 100 jumper caps for electronics repair, DIY projects, prototyping, and bulk inventory
- Easy Plug-and-Play — Simply press onto header pins to short or configure circuits; remove easily when reconfiguration is needed
- Wide Compatibility — Fits all standard 2.54mm pitch header pins on Arduino, ESP32, ESP8266, Raspberry Pi, motherboards, and custom PCBs
- Versatile Applications — Ideal for PCB settings, circuit testing, board configuration, prototyping, and electronics repair
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | PCB Shorting Jumper Cap (Shunt Cap) |
| Model Number | DIY-JUMPER-CAP-2.54-BLACK-100PCS |
| Pin Spacing (Pitch) | 2.54mm (0.1 inch) |
| Pin Configuration | 2-pin (shorts 2 adjacent pins) |
| Contact Material | Copper alloy |
| Housing Material | Thermoplastic |
| Color | Black |
| Current Rating | 2A |
| Operating Temperature | -25°C to +105°C |
| Package Quantity | 100 pieces |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, motherboards, custom PCBs, all standard 2.54mm pitch headers |
| Applications | PCB configuration, circuit shorting, board settings, electronics prototyping, repair, DIY projects |
PACKAGE
A package includes:
| Qty | Items |
|---|---|
| 100 | 2.54mm 2-pin shorting jumper caps (black, thermoplastic housing) |
COMPATIBLE HARDWARE
- Arduino boards (UNO, Mega, Nano, etc.) — Configure onboard settings and pin selection headers
- Arduino Uno R4 WiFi/Minima — PCB configuration jumpers
- ESP32 development boards — Boot mode and configuration pin selection
- ESP8266 boards (NodeMCU, Wemos D1, etc.) — Module configuration jumpers
- Raspberry Pi (all models) — GPIO and configuration header pin shorting
- Raspberry Pi Pico — Board configuration and mode selection
- Arduino Nano ESP32 — Compact board configuration
- Motherboards and BIOS settings — CMOS reset and jumper block configuration
- Custom PCBs — User-configurable option selection and feature enable/disable
- Prototype boards — Circuit testing and configuration in DIY electronics projects
- Any device with 2.54mm pitch header pins — Universal shunt cap for standard electronics
