DIYables 3.5-Inch TFT LCD Color Display for Arduino Mega, Mega 2560, Due, Giga R1 WiFi Boards, 16-Bit Parallel Interface, 320x480 HD Resolution, ILI9486
Click to zoom
Quick Overview

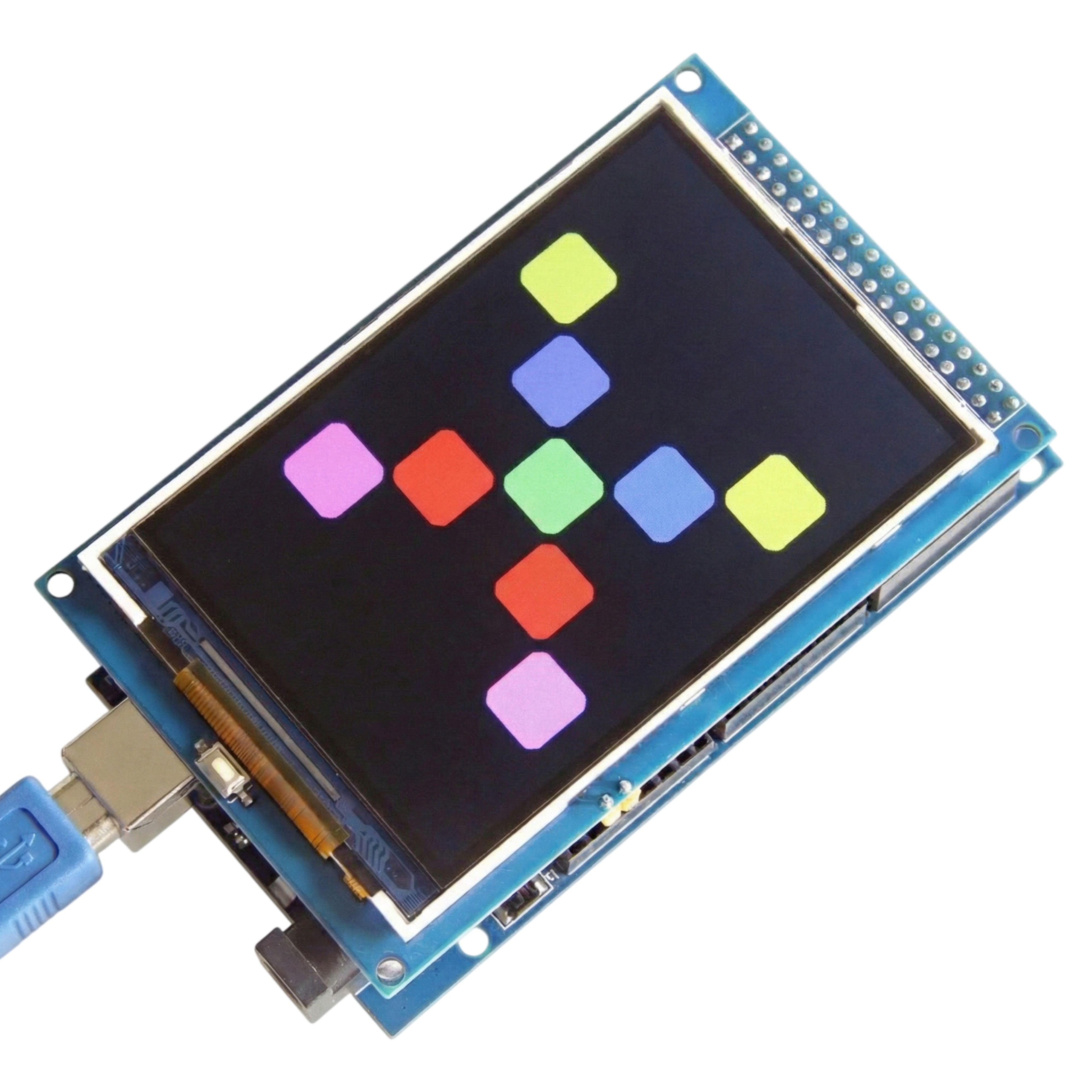

The DIYables 3.5-Inch TFT LCD Color Display is a vibrant, high-resolution screen designed specifically for Arduino Mega, Mega 2560, Due, and Giga R1 WiFi boards. Featuring a 320x480 HD resolution with 65K colors, this display is powered by the reliable ILI9486 driver and uses a fast 16-bit parallel interface for smooth graphics and responsive performance. The shield-style form factor plugs directly onto Mega-compatible boards, making it an easy plug-and-play solution for visual feedback in your Arduino projects.

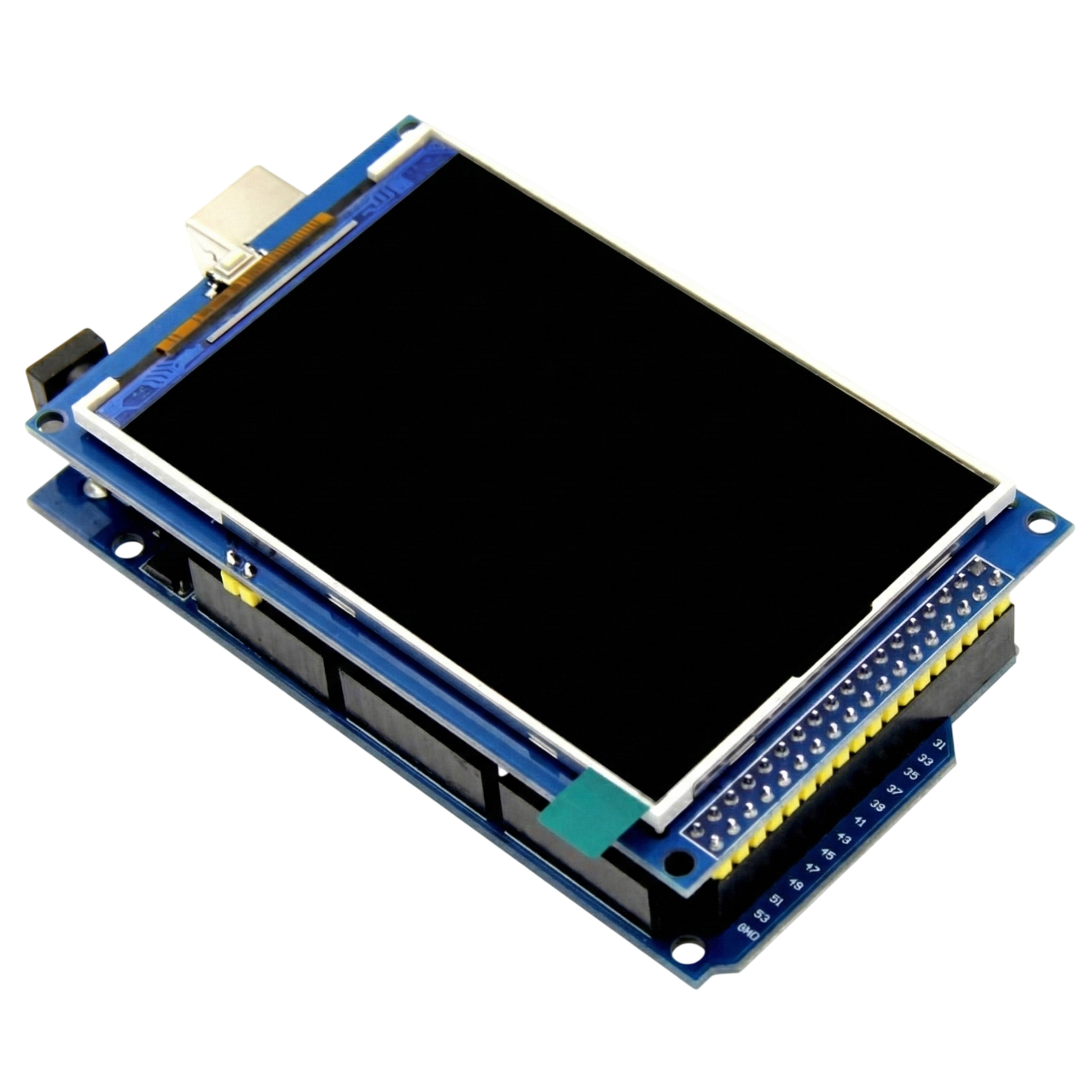

This TFT LCD display includes an on-board 5V/3.3V level shifting IC for seamless integration with both 5V Arduino boards like the Mega 2560 and 3.3V boards like the Due. The module also features an SD card slot for data logging and loading images, along with comprehensive Arduino library support with rich example programs. Built to military-grade process standards, the display operates reliably in temperatures from -20°C to 60°C with high-brightness LEDs for clear visibility.
Perfect for creating graphical user interfaces, data visualization dashboards, weather stations, IoT control panels, and interactive games. Whether you're building a touch-controlled home automation interface, a real-time sensor data display, or an embedded graphics project, this TFT LCD provides the visual performance you need. Fully compatible with Arduino Mega, Mega 2560, Due, and Giga R1 WiFi boards with extensive tutorial and library support.
Key Features
- Vibrant 3.5-Inch HD Display — 320x480 pixel resolution with 65K colors for bright, detailed visuals in Arduino projects
- ILI9486 Driver Chip — Reliable and widely supported display controller with excellent Arduino library compatibility
- Fast 16-Bit Parallel Interface — Ensures rapid data transmission for smooth graphics rendering and responsive animations
- Easy Plug-In Design — Shield-style form factor plugs directly onto Arduino Mega, Mega 2560, Due, and Giga R1 WiFi boards
- Automatic Level Shifting — On-board 5V/3.3V level shifting IC enables seamless compatibility with both voltage standards
- Integrated SD Card Slot — Supports data logging, image loading, and file storage for expandable functionality
- High Brightness LEDs — Clear visibility in various lighting conditions with adjustable backlight control
- Wide Temperature Range — Operates reliably from -20°C to 60°C for industrial and outdoor applications
- Military-Grade Quality — Built to high process standards for long-term stability and reliable operation
- Rich Example Library — Comprehensive Arduino library with graphics demos, touch examples, and starter programs
- Mega-Compatible Pinout — Designed specifically for Arduino Mega form factor with full pin access
- Tutorial Support — Detailed tutorials for Arduino Mega, Mega 2560, Due, and Giga R1 WiFi boards
- Versatile Applications — Perfect for GUI interfaces, data visualization, IoT control panels, and interactive displays
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | TFT LCD Color Display Shield |
| Display Driver | ILI9486 |
| Screen Size | 3.5 inches (diagonal) |
| Resolution | 320 x 480 pixels |
| Color Depth | 65K colors (RGB565) |
| Interface | 16-bit parallel |
| Touch Controller | Optional touch panel support |
| SD Card Slot | Yes, for data logging and image storage |
| Operating Voltage | 5V DC (with 3.3V logic compatibility) |
| Backlight | High-brightness LED with adjustable control |
| Backlight Current | ~100 mA (typical) |
| Viewing Angle | 140° (horizontal and vertical) |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Level Shifting | On-board 5V/3.3V level shifter IC |
| Pixel Pitch | 0.11mm x 0.11mm |
| Active Area | 48.96mm x 73.44mm |
| Board Dimensions | 85mm x 54mm x 15mm (approx.) |
| Form Factor | Arduino Mega shield compatible |
| Pin Access | Full pin headers for stacking |
| Library Support | Adafruit GFX, TFTLCD-Library, and compatible libraries |
| Package Quantity | 1 piece |
| Compatibility | Arduino Mega, Mega 2560, Due, Giga R1 WiFi, and compatible Mega-form factor boards |
| Applications | GUI interfaces, data visualization, IoT control panels, weather stations, sensor displays, touchscreen projects, embedded graphics |

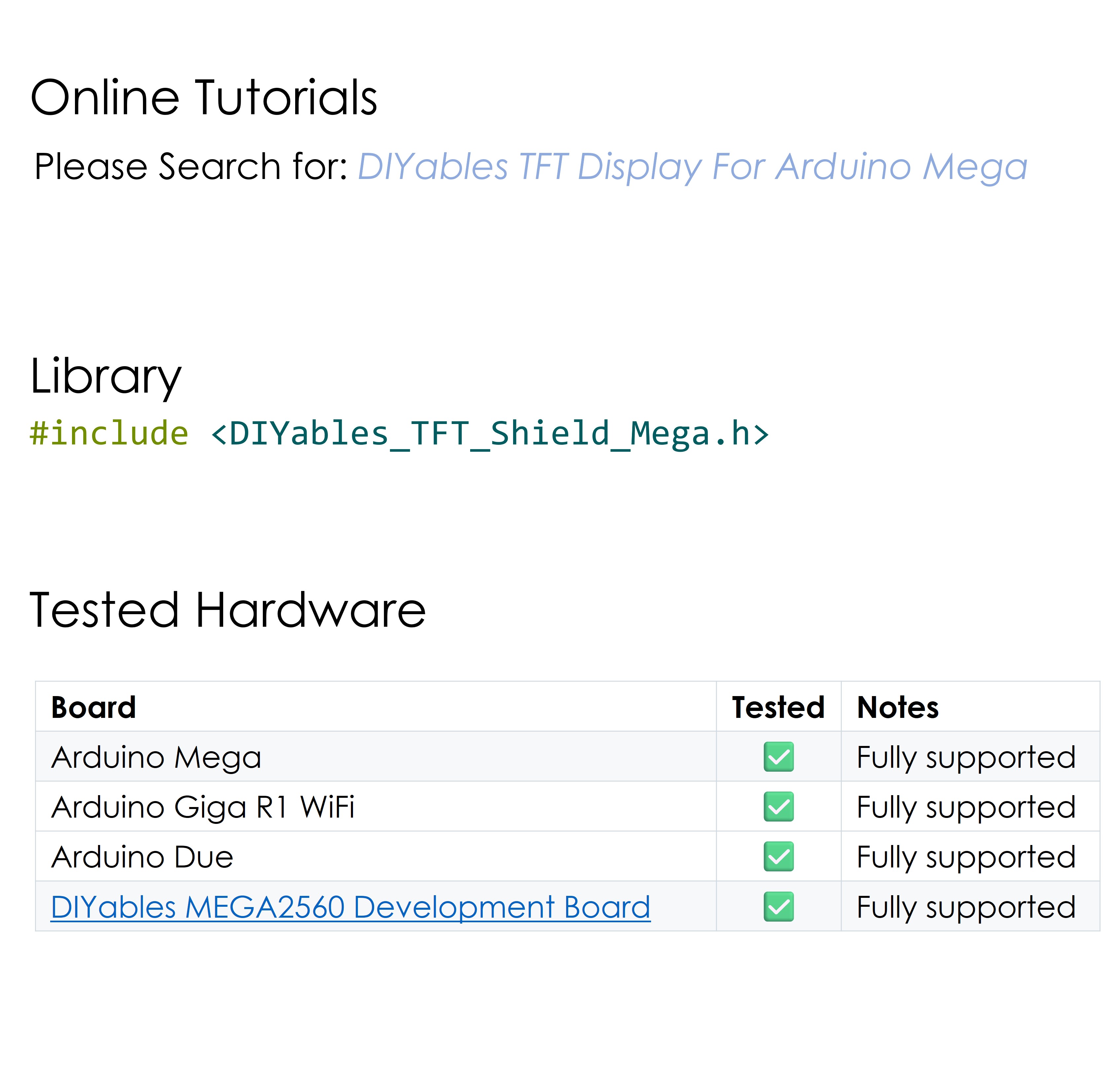

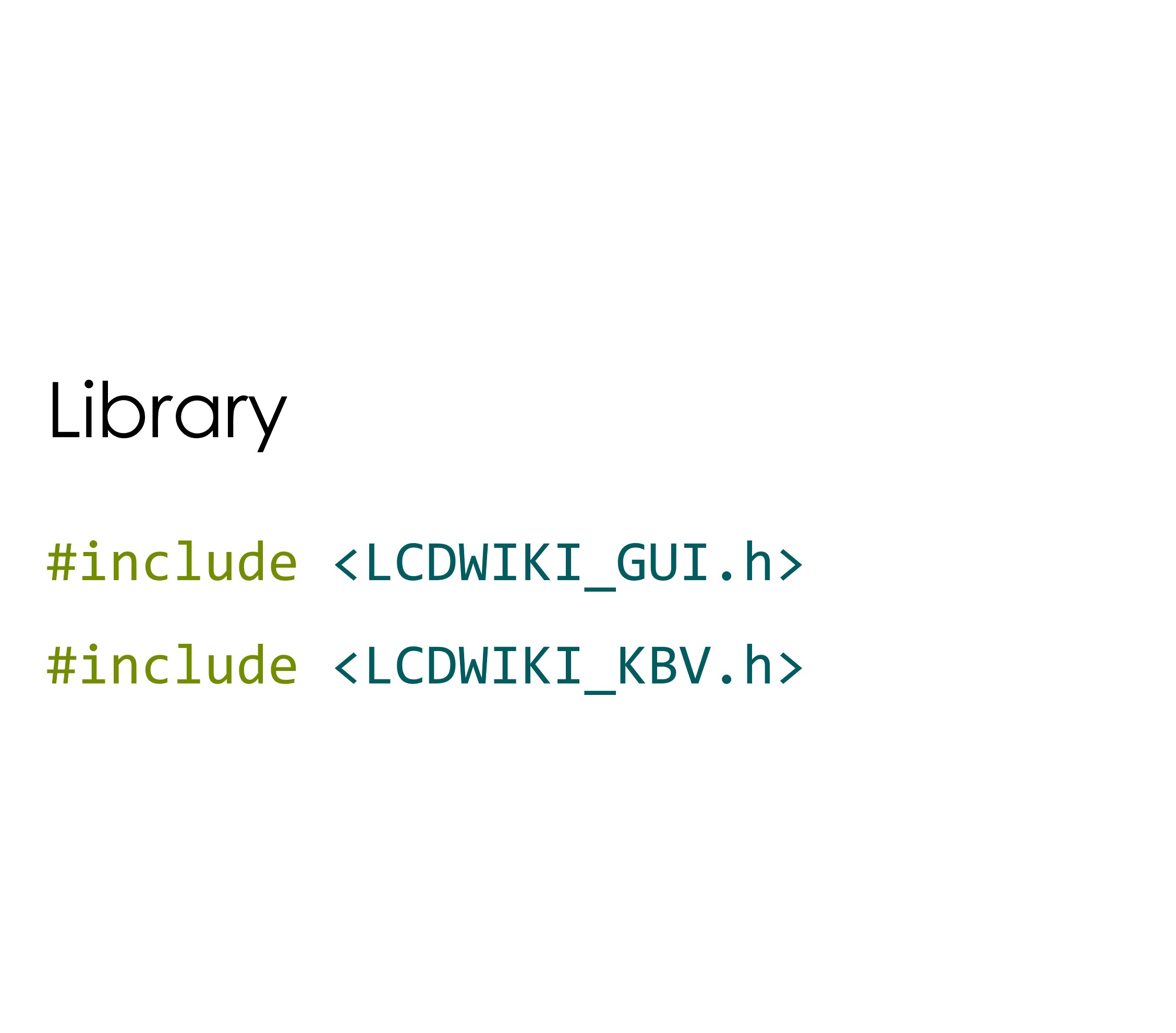

Library
- You can use one of the below libary:
- DIYables TFT Shield Mega Library - Coming Soon
- DIYables LCD WIKi Library
Tutorials
COMPATIBLE HARDWARE
- Arduino Mega 2560 — Direct plug-in with shield form factor, 5V logic
- Arduino Mega (original) — Full compatibility with 16-bit parallel interface
- Arduino Due — 3.3V logic compatible with on-board level shifting
- Arduino Giga R1 WiFi — Full shield compatibility with advanced graphics capabilities
- DHT11/DHT22 Temperature Sensors — Display environmental data on screen
- DS18B20 Temperature Sensor — Show temperature readings with graphics
- Real-Time Clock (RTC) Modules — Create clock and calendar displays
- GPS Modules — Build navigation interfaces and location displays
- SD Card Modules — Load images and log data (on-board slot available)
- Ultrasonic Sensors — Create distance measurement displays
- Touch Panel Controllers — Add touchscreen functionality (with compatible touch overlay)
- Sensor Shields and Expansion Boards — Stack with Mega-compatible shields
- Power Supply Modules — 5V regulated power for display and backlight
- IoT Sensors and Modules — Build visual dashboards and control interfaces
- Any Arduino Mega-compatible board — Requires 16-bit parallel interface support and sufficient GPIO pins
