DIYables DIYables STEM V4 IoT Advanced Starter Kit, Arduino Uno R4 WiFi Compatible
Click to zoom
Quick Overview
The DIYables STEM V4 IoT Starter Kit is built around the DIYables STEM V4 IoT board, a development board fully compatible with Arduino Uno R4 WiFi. It combines an RA4M1 32-bit ARM Cortex-M4 microcontroller with an ESP32-S3 coprocessor for WiFi and Bluetooth, and programs in Arduino IDE using the Arduino Uno R4 WiFi board setting, libraries, and Uno shields.

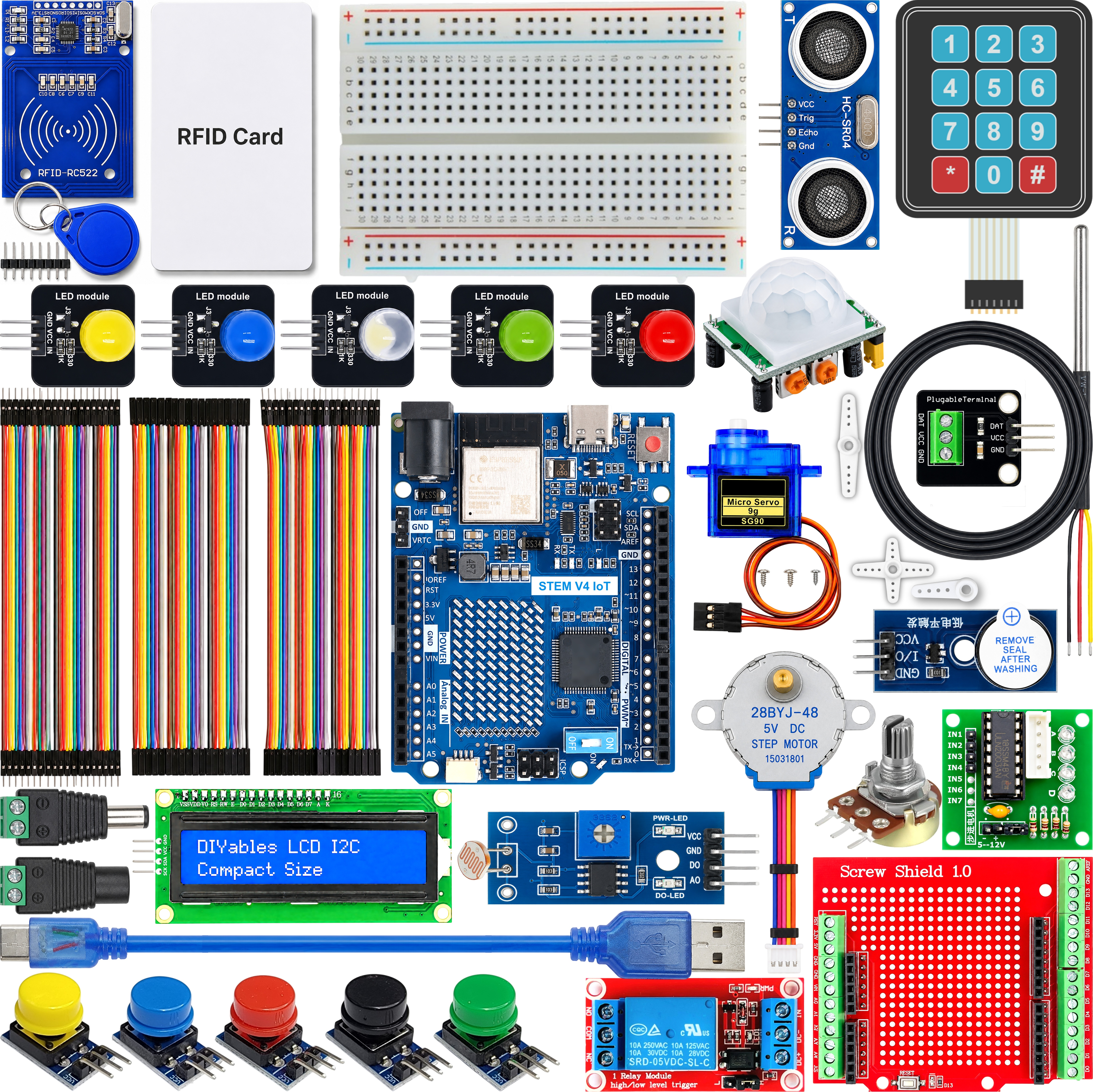

The kit pairs the board with a Proto Screw Shield V1.0 expansion board, half-size breadboard, three types of jumper wires, a USB Type-C cable, and DC power jacks. Inputs and sensors include an RC522 RFID reader with tags, HC-SR04 ultrasonic sensor, HC-SR501 PIR motion sensor, DS18B20 temperature sensor, LDR light sensor module, potentiometer, button module, and 3x4 keypad. Outputs include a 1602 LCD display with blue backlight, SG90 servo motor, 28BYJ-48 stepper motor with ULN2003 driver, 5V 1-channel relay, LED modules, and an active piezo buzzer.
Ideal for beginners, students, teachers, and homeschoolers. With online tutorials provided, it covers everything from blinking LEDs and reading buttons to RFID door locks, motion alarms, smart home automation, and WiFi IoT dashboards.
Key Features
- STEM V4 IoT Board — Fully compatible with Arduino Uno R4 WiFi, with RA4M1 ARM Cortex-M4 and ESP32-S3 WiFi and Bluetooth coprocessor
- Arduino IDE Ready — Uses the Arduino Uno R4 WiFi board setting, libraries, and Uno shields
- RFID Included — RC522 RFID reader with tags for access control and door lock projects
- Motion, Distance, and Temperature Sensing — HC-SR501 PIR, HC-SR04 ultrasonic, and DS18B20 temperature sensors
- Light and User Input — LDR light sensor module, potentiometer, button module, and 3x4 keypad
- Motors and Relay — SG90 servo, 28BYJ-48 stepper with ULN2003 driver, and 5V 1-channel relay
- Display and Sound — 1602 LCD with blue backlight, LED modules, and active piezo buzzer
- Easy Prototyping — Proto Screw Shield V1.0, half-size breadboard, and three types of jumper wires
- USB Type-C and DC Power — USB Type-C cable for programming and DC power jacks for external supply
- Tutorial Support — Online step-by-step tutorials for every component and IoT project
- STEM Education Ready — Suitable for classrooms, homeschool, maker spaces, and self-learning
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | IoT Starter Kit / STEM Education Kit |
| Development Board | DIYables STEM V4 IoT (compatible with Arduino Uno R4 WiFi) |
| Microcontroller | RA4M1 32-bit ARM Cortex-M4 (48 MHz) |
| Coprocessor | ESP32-S3 (WiFi and Bluetooth) |
| Onboard Display | 12x8 LED matrix (on STEM V4 IoT board) |
| USB Port | USB Type-C |
| Sensors | RC522 RFID, HC-SR04 ultrasonic, HC-SR501 PIR motion, DS18B20 temperature, LDR light |
| Display | LCD 1602A V1.4, blue background, 5V |
| Actuators | SG90 servo, 28BYJ-48 stepper with ULN2003 driver, 5V 1-channel relay, active piezo buzzer |
| Input Devices | 3x4 keypad, button module, potentiometer |
| Expansion Board | Proto Screw Shield V1.0 |
| Prototyping Tools | Half-size breadboard, male-to-male, male-to-female, and female-to-female jumper wires |
| Accessories | USB Type-C cable, 2 DC power jacks |
| Programming | Arduino IDE (Arduino Uno R4 WiFi board setting) |

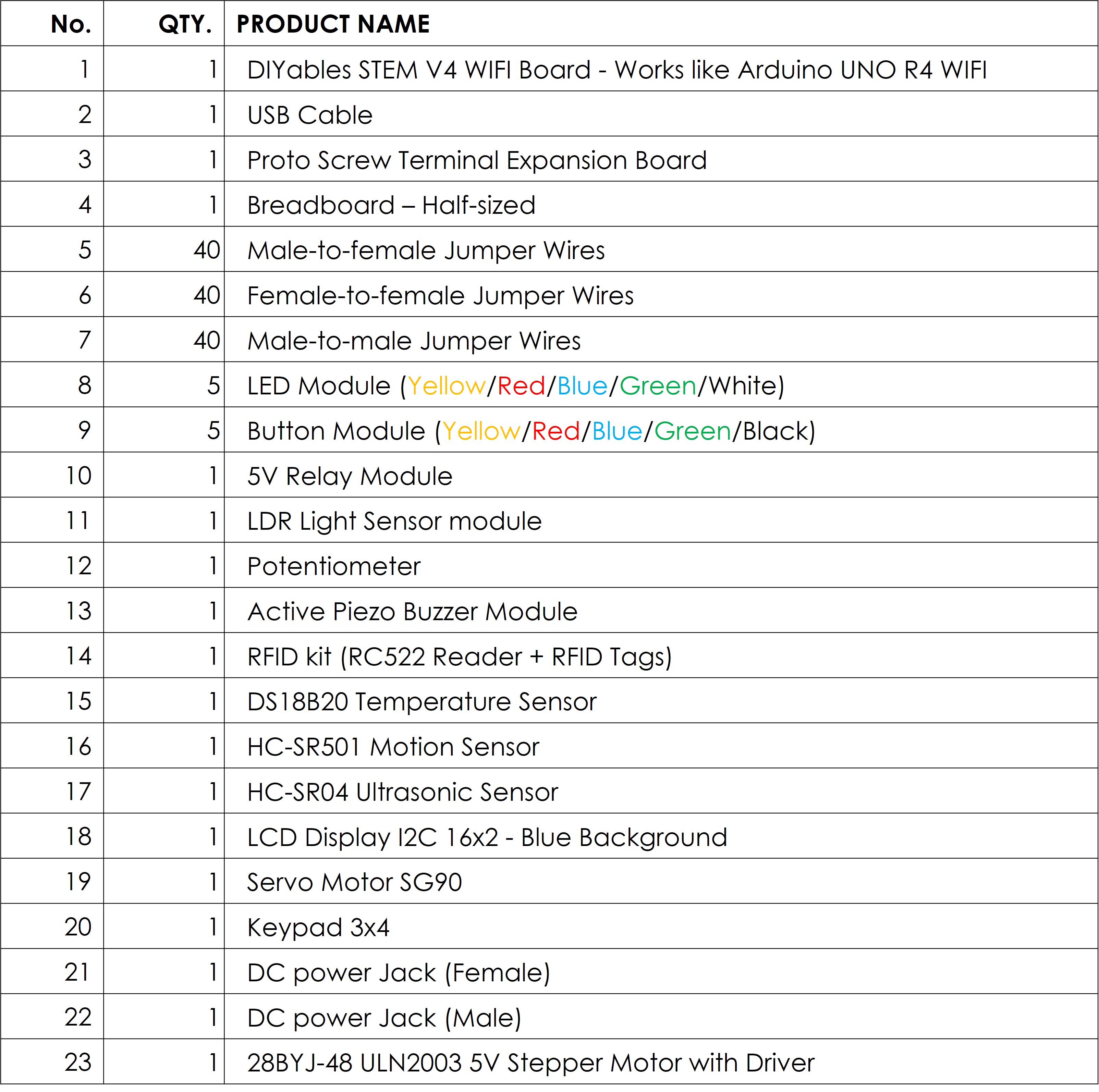

PACKAGE
A package includes:
| Qty | Items |
|---|---|
| 1 | DIYables STEM V4 IoT Board (compatible with Arduino Uno R4 WiFi) |
| 1 | Proto Screw Shield V1.0 Expansion Board |
| 1 | Half-Sized Breadboard |
| 1 | Set of Male-to-Female Jumper Wires |
| 1 | Set of Male-to-Male Jumper Wires |
| 1 | Set of Female-to-Female Jumper Wires |
| 1 | Set of LED Modules |
| 1 | Button Module |
| 1 | LDR Light Sensor Module |
| 1 | Potentiometer |
| 1 | Active Piezo Buzzer Module |
| 1 | RC522 RFID Kit (Reader and Tags) |
| 1 | DS18B20 Temperature Sensor |
| 1 | HC-SR501 PIR Motion Sensor |
| 1 | HC-SR04 Ultrasonic Sensor |
| 1 | LCD 1602A V1.4 (Blue Background, 5V, with Potentiometer) |
| 1 | SG90 Servo Motor |
| 1 | 3x4 Keypad |
| 1 | 5V 1-Channel Relay Module |
| 1 | 28BYJ-48 5V Stepper Motor with ULN2003 Driver |
| 2 | DC Power Jack |
| 1 | USB Type-C Cable |
Tutorials
COMPATIBLE HARDWARE
- Arduino IDE (Windows, Mac, Linux) — Select "Arduino Uno R4 WiFi" as the board
- Arduino Uno R4 WiFi libraries — WiFi, Bluetooth, LED matrix, and sensor libraries
- Arduino Uno shields and expansion boards — Standard Uno header layout
- USB Type-C cable (included) — Programming and power
- External DC power supply — Through the included DC power jacks
