DIYables DIYables STEM V4B IoT Starter Kit Arduino UNO R4 WiFi
Click to zoom
Quick Overview
The DIYables STEM V4B IoT Starter Kit is an all-in-one electronics and coding kit built around the DIYables STEM V4B IoT board — a board that works like the Arduino UNO R4 WiFi, combining the RA4M1 microcontroller with an ESP32-S3 WiFi module and adding an on-board prototyping area with extra pin breakout for enhanced connectivity. The kit includes 21 item sets covering sensors, displays, actuators, and expansion hardware, giving beginners and students everything they need to start building real IoT and electronics projects immediately.

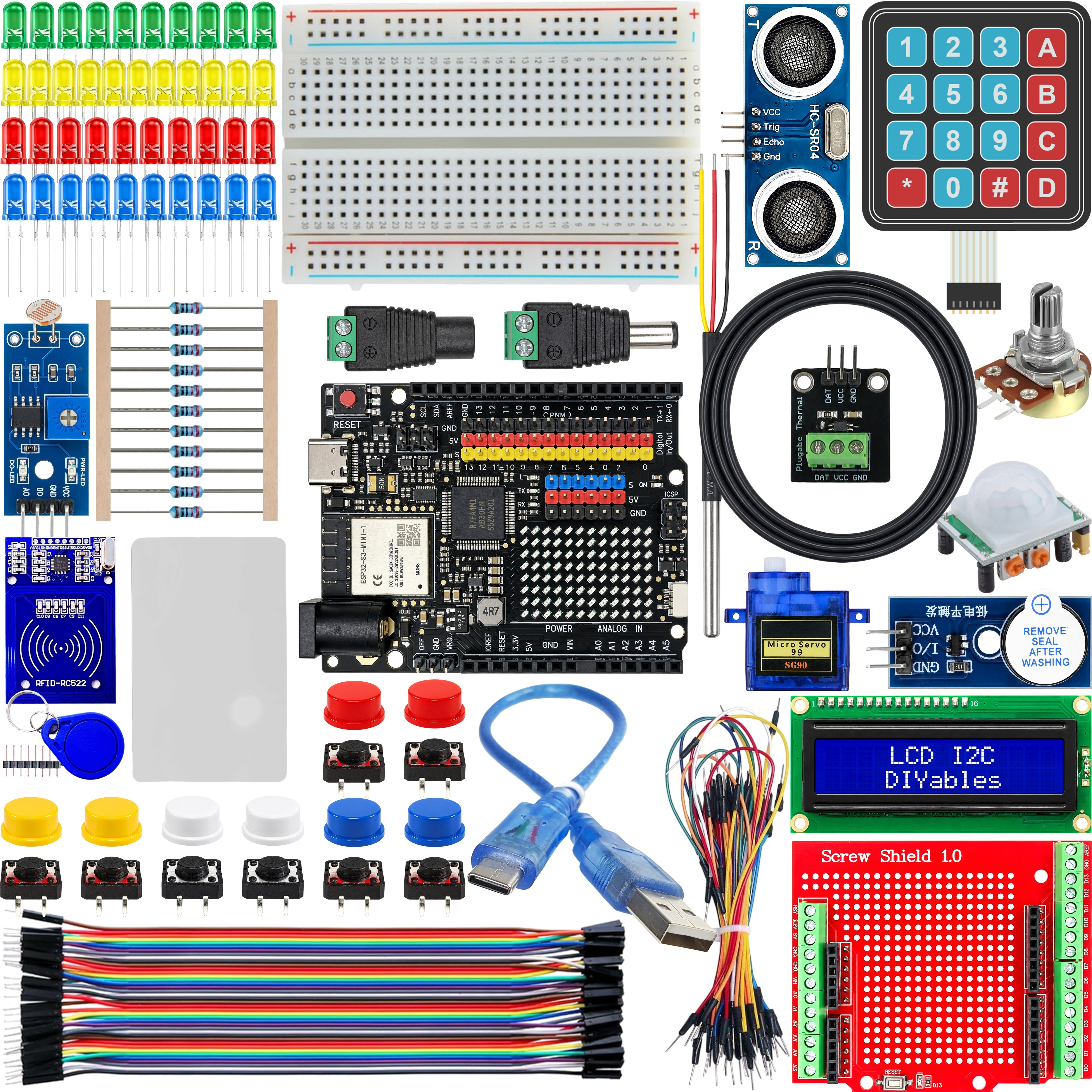

The kit includes popular sensors such as the HC-SR501 PIR motion sensor, HC-SR04 ultrasonic sensor, DS18B20 temperature sensor, light sensor module, potentiometer, and active piezo buzzer module. For output and interaction, it features an I2C LCD 16x2 blue-background display, SG90 servo motor, 4x4 matrix keypad, an RFID kit with RC522 reader and tags, plus 8 buttons with colored caps, 40 LEDs in four colors, and 80 resistors. The Proto Screw Terminal Expansion Board, half-size breadboard, male-to-female and male-to-male jumper wires, USB cable, and DC power jack complete the setup.
Ideal for STEM education, classroom projects, homeschooling, maker learning, IoT prototyping, and anyone starting their journey in embedded programming and electronics with Arduino UNO R4 WiFi. Free online tutorials are available — search "DIYables STEM V4B Kit".
Key Features
- DIYables STEM V4B IoT Board — Works like the Arduino UNO R4 WiFi, with an on-board prototyping area and extra pin breakout for enhanced GPIO access and IoT connectivity
- 21 Item Sets Included — Comprehensive kit with sensors, display, actuators, and expansion hardware for a wide range of hands-on electronics and coding projects
- Popular Sensors Included — HC-SR501 PIR motion, HC-SR04 ultrasonic, DS18B20 temperature, light sensor module, potentiometer, and active piezo buzzer for varied project scenarios
- Display, Keypad and Servo — I2C LCD 16x2 blue-background display, SG90 servo motor, and 4x4 matrix keypad for interactive project interfaces
- RFID Kit Onboard — RC522 RFID reader with card and key-fob tags for access-control, attendance, and door-lock learning projects
- Plenty of Basics — 80 resistors, 40 LEDs in four colors, and 8 buttons with colored caps for circuit fundamentals and repeated classroom use
- Proto Screw Terminal Expansion Board — Screw-terminal shield for secure sensor and module wiring on top of the STEM V4B board
- Complete Setup Included — USB cable, half-size breadboard, DC power jack, male-to-female and male-to-male jumper wires for immediate project start without additional purchases
- Free Online Tutorials — Step-by-step tutorials available online covering sensors, displays, motor control, RFID, IoT, and coding — search "DIYables STEM V4B Kit"
- STEM and Education Ready — Ideal for STEM classrooms, homeschooling, student projects, maker learning, and IoT prototyping
- Arduino IDE Compatible — Full Arduino IDE support for easy programming, library integration, and rapid project development
SPECIFICATION
| Specification | Value |
|---|---|
| Kit Type | IoT STEM Starter Kit |
| Main Board | DIYables STEM V4B IoT Board |
| Board Compatibility | Works like Arduino UNO R4 WiFi |
| Included Sensors | HC-SR501 PIR, HC-SR04 Ultrasonic, DS18B20 Temperature, Light Sensor Module, Potentiometer |
| Included Actuators | SG90 Servo Motor, Active Piezo Buzzer Module |
| Display | I2C LCD 16x2 Module - Blue Background |
| Input Devices | 4x4 Matrix Keypad, 8 Buttons with Colored Caps, RFID Kit (RC522 Reader + Tags) |
| Components | 80 Resistors, 40 LEDs (Yellow/Red/Blue/Green) |
| Expansion Board | Proto Screw Terminal Expansion Board for Arduino UNO R4 |
| Connectivity | USB Cable, DC Power Jack |
| Prototyping | Half-Size Breadboard, Male-to-Female and Male-to-Male Jumper Wires |
| Tutorial Support | Yes (online — search "DIYables STEM V4B Kit") |
| Development Environment | Arduino IDE |
| Applications | STEM education, IoT prototyping, sensor projects, robotics, home automation learning |

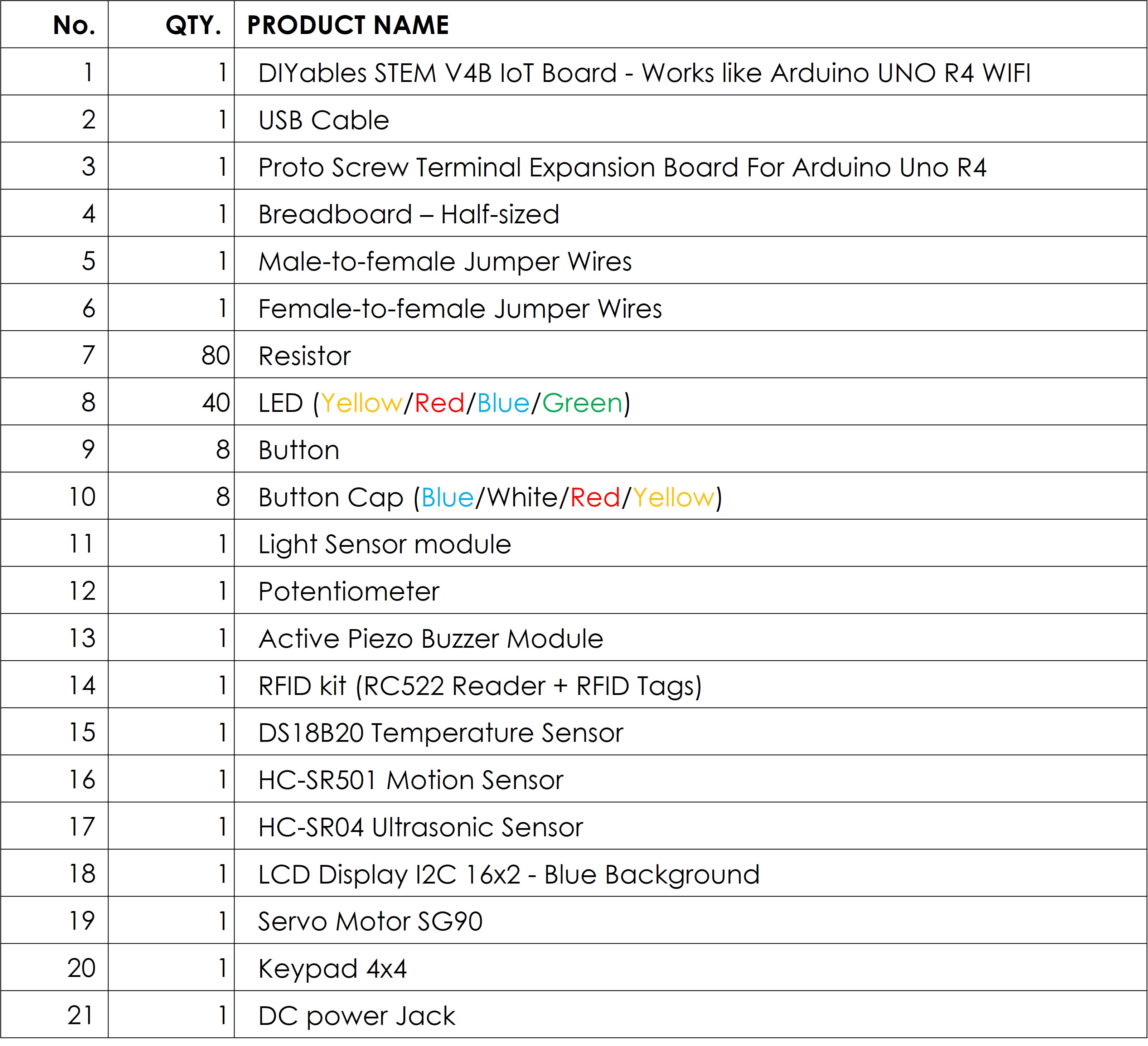

PACKAGE
A package includes:
| Qty | Items |
|---|---|
| 1 | DIYables STEM V4B IoT Board (works like Arduino UNO R4 WiFi) |
| 1 | USB Cable |
| 1 | Proto Screw Terminal Expansion Board for Arduino UNO R4 |
| 1 | Breadboard - Half-Sized |
| 1 | Set of Male-to-Female Jumper Wires |
| 1 | Set of Male-to-Male Jumper Wires |
| 80 | Resistor |
| 40 | LED (Yellow/Red/Blue/Green) |
| 8 | Button |
| 8 | Button Cap (Blue/White/Red/Yellow) |
| 1 | Light Sensor Module |
| 1 | Potentiometer |
| 1 | Active Piezo Buzzer Module |
| 1 | RFID Kit (RC522 Reader + RFID Tags) |
| 1 | DS18B20 Temperature Sensor |
| 1 | HC-SR501 Motion Sensor |
| 1 | HC-SR04 Ultrasonic Sensor |
| 1 | LCD Display I2C 16x2 - Blue Background |
| 1 | Servo Motor SG90 |
| 1 | Keypad 4x4 |
| 1 | DC Power Jack |
Tutorials
COMPATIBLE HARDWARE
- Arduino UNO R4 WiFi — STEM V4B board works like this platform and shares the same UNO form factor
- Arduino IDE — primary programming environment for all kit projects
- Arduino libraries (LiquidCrystal I2C, Servo, MFRC522, Keypad, NewPing, DallasTemperature, etc.) — standard library support
- 5V DC power supply or USB — board power options
- Any 5V-compatible sensor or module — via the Proto Screw Terminal Expansion Board
