DIYables 5.5 x 2.1mm Female DC Jack to 2-Pin Spring Terminal Block, Quick Connect Press-Type Adapter
Click to zoom
Quick Overview

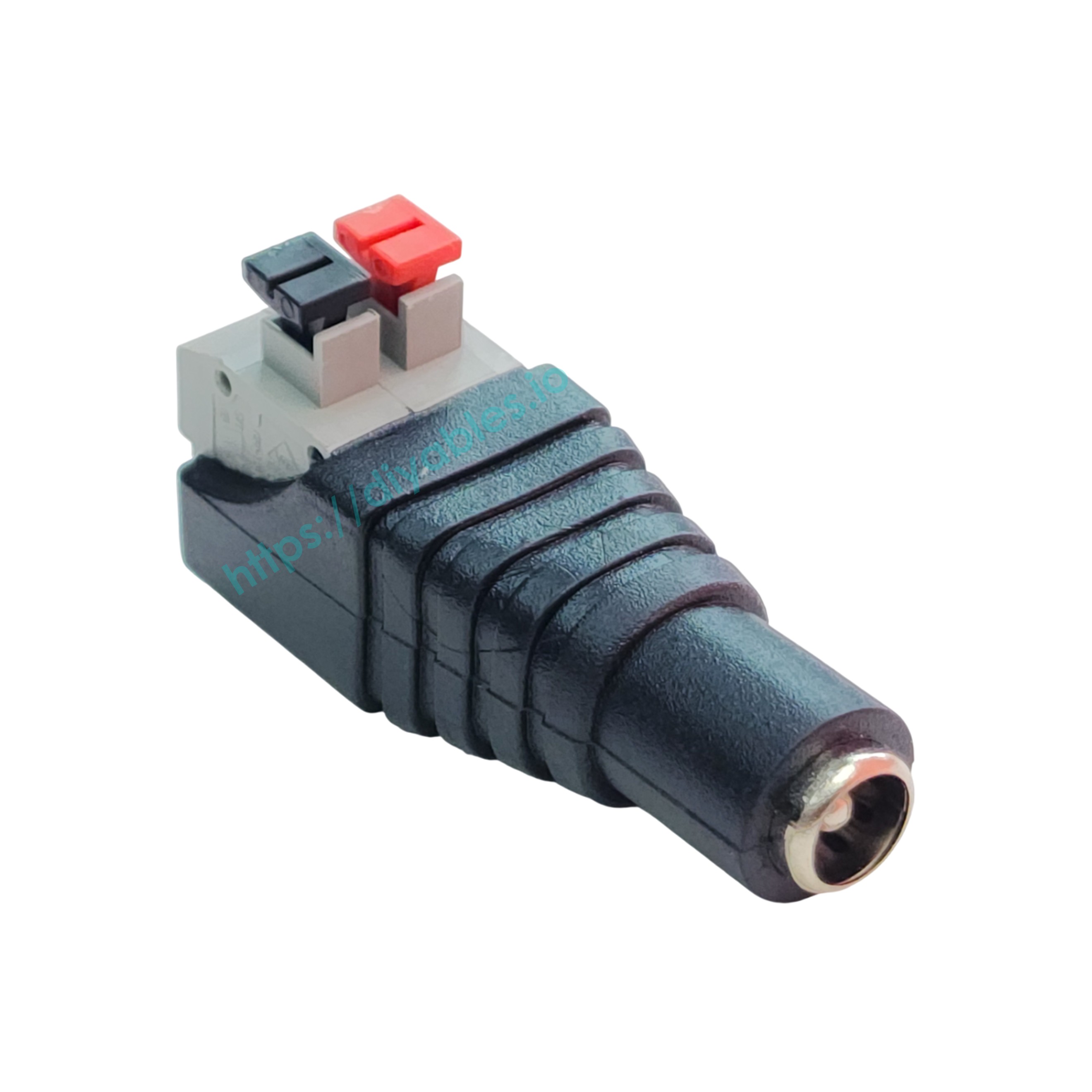

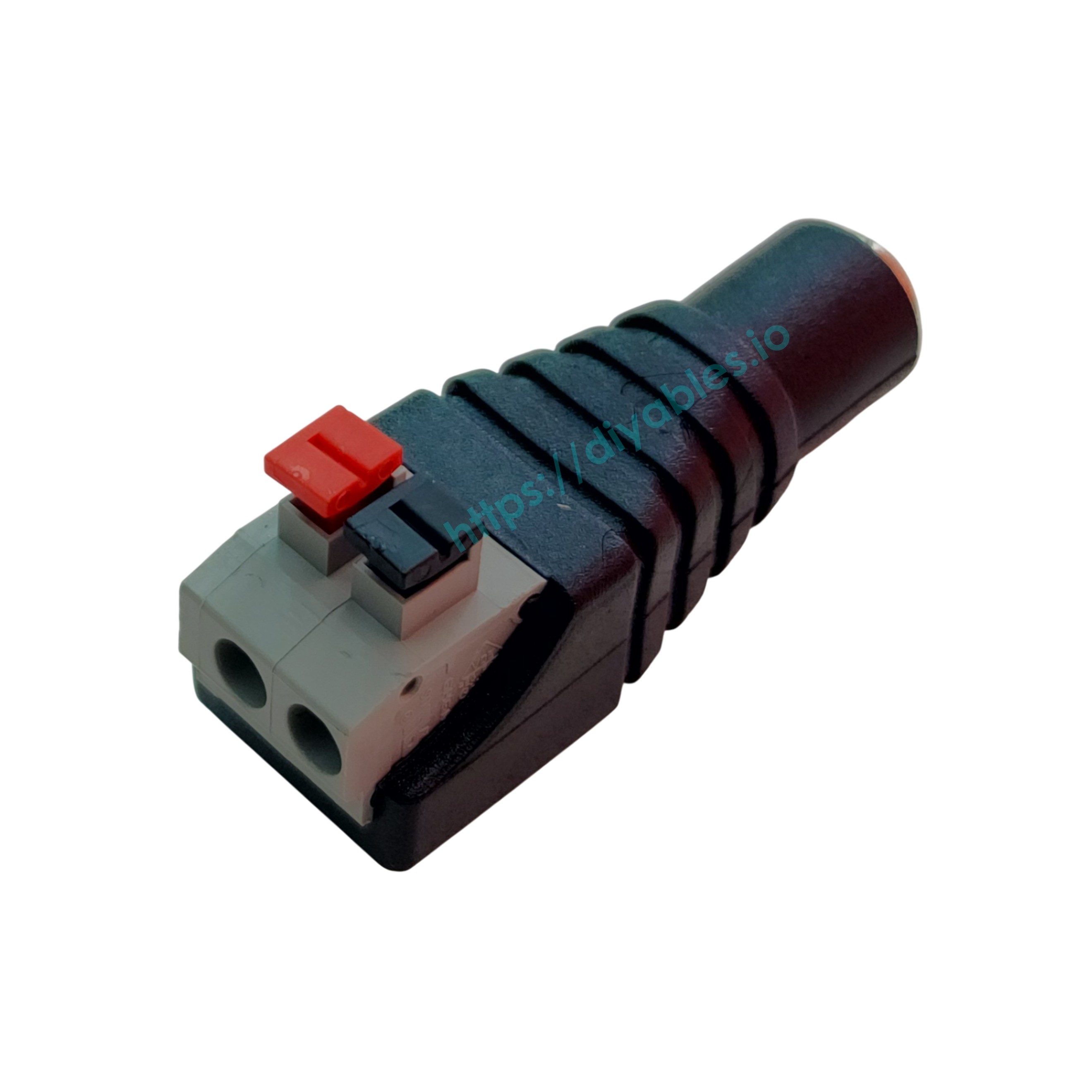

The DIYables 5.5 x 2.1mm Female DC Jack to 2-Pin Spring Terminal Block Adapter is a convenient power connection solution that eliminates the need for soldering or screw terminals. This quick-connect adapter converts a standard 5.5 x 2.1mm female DC barrel jack into a press-type 2-pin spring terminal block, allowing you to easily connect bare wires with a simple press-and-insert action. Rated for 3–24V DC operation with up to 8A current capacity (8A at 12V or 4A at 24V), it supports up to 100W of power transfer and is perfect for Arduino, ESP32, ESP8266, and Raspberry Pi power supply connections.
This adapter features a durable flame-retardant construction with PVC insulation and a red-gray PC terminal housing for safety and heat resistance. The press-type spring design ensures a secure, reliable connection without any tools, and the adapter is rated for 6,000 plug and unplug cycles for long-term durability. Each pack includes 5 adapters, providing excellent value for multiple projects or installations. The compact design maintains a professional appearance while simplifying power distribution in electronics projects.
Ideal for LED strip lighting installations, CCTV camera power connections, cooling fan wiring, and general DC power distribution in Arduino, ESP32, ESP8266, and Raspberry Pi projects. Perfect for makers who need a quick, reliable way to connect power supplies to terminal blocks without soldering, or for converting existing DC jack power supplies to work with screw-free terminal connections. Great for prototyping, permanent installations, and any application requiring tool-free, reversible power connections.
Key Features
- Standard DC Jack Connector — 5.5 x 2.1mm female DC barrel jack compatible with most common power adapters
- Tool-Free Connection — Press-type spring terminal design allows quick wire insertion without screws or soldering
- High Current Capacity — Handles up to 8A at 12V or 4A at 24V, supporting up to 100W power transfer
- Wide Voltage Range — Operates with 3–24V DC power supplies for flexible application compatibility
- Flame-Retardant Housing — Durable PVC with red-gray PC terminal housing for safety and heat resistance
- Long Durability — Rated for 6,000 plug and unplug cycles for reliable long-term use
- Secure Spring Connection — Spring-loaded terminals provide strong wire grip without loosening over time
- Compact Design — Small form factor maintains clean, professional appearance in installations
- Value Pack — Includes 5 adapters for multiple projects or backup replacements
- Wide Compatibility — Works with Arduino, ESP32, ESP8266, Raspberry Pi power supplies and DC wall adapters
- Tutorial Support — Comprehensive power supply tutorials for Arduino, ESP32, ESP8266, and Raspberry Pi platforms
- Versatile Applications — Perfect for LED strips, CCTV cameras, cooling fans, and general DC power distribution
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | DC Jack to Spring Terminal Block Adapter |
| Connector Type | 5.5 x 2.1mm Female DC Barrel Jack |
| Terminal Type | 2-Pin Spring Terminal Block (Press-Type) |
| Operating Voltage | 3–24V DC |
| Maximum Current | 8A at 12V, 4A at 24V |
| Maximum Power | 100W |
| Wire Gauge | Supports 12–24 AWG wire |
| Terminal Connection | Tool-free press-and-insert spring mechanism |
| Housing Material | Flame-retardant PVC with PC terminal housing |
| Housing Color | Red-gray |
| Contact Material | Copper alloy with nickel plating |
| Insulation Resistance | >100MΩ at 500V DC |
| Durability Rating | 6,000 plug and unplug cycles |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Dimensions | 35mm x 20mm x 15mm (approx.) |
| Weight | ~8g per adapter |
| Package Quantity | 5 pieces |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, LED strips, CCTV cameras, cooling fans, DC power supplies |
| Applications | LED strip power connections, CCTV camera installations, cooling fan wiring, Arduino/ESP32/Raspberry Pi power distribution, DC power adapter conversion |
PACKAGE
A package includes:
| Qty | Items |
|---|---|
| 5 | 5.5 x 2.1mm Female DC Jack to 2-Pin Spring Terminal Block Adapters |
COMPATIBLE HARDWARE
- 5.5 x 2.1mm DC Power Adapters — Standard barrel plug power supplies (3-24V DC)
- Arduino Power Supplies — 9V, 12V DC adapters for powering Arduino projects
- ESP32 Development Boards — 5V power supplies for ESP32 modules and projects
- ESP8266 Boards — 5V DC power adapters for NodeMCU, Wemos D1, and similar boards
- Raspberry Pi Power Supplies — 5V adapters for all Raspberry Pi models via GPIO
- LED Strip Controllers — 12V/24V power connections for single-color and RGB LED strips
- CCTV Security Cameras — 12V DC power distribution for surveillance camera systems
- Cooling Fans — 5V, 12V, 24V DC fan power connections
- Motor Controllers — DC motor driver power input connections
- Terminal Block Power Supplies — Convert DC jack adapters to terminal block format
- Voltage Regulators — Input power connections for buck/boost converter modules
- Sensor Power Distribution — Centralized power supply for multiple 5V/12V sensors
- Breadboard Power Supplies — Tool-free connection to screw terminal power modules
- LED Driver Modules — Quick power input for LED driver circuits
- Any Device with 5.5 x 2.1mm DC Jack — Compatible with standard center-positive or center-negative configurations
