DIYables IR Receiver and Transmitter Sensor Module Kit
Click to zoom
Quick Overview

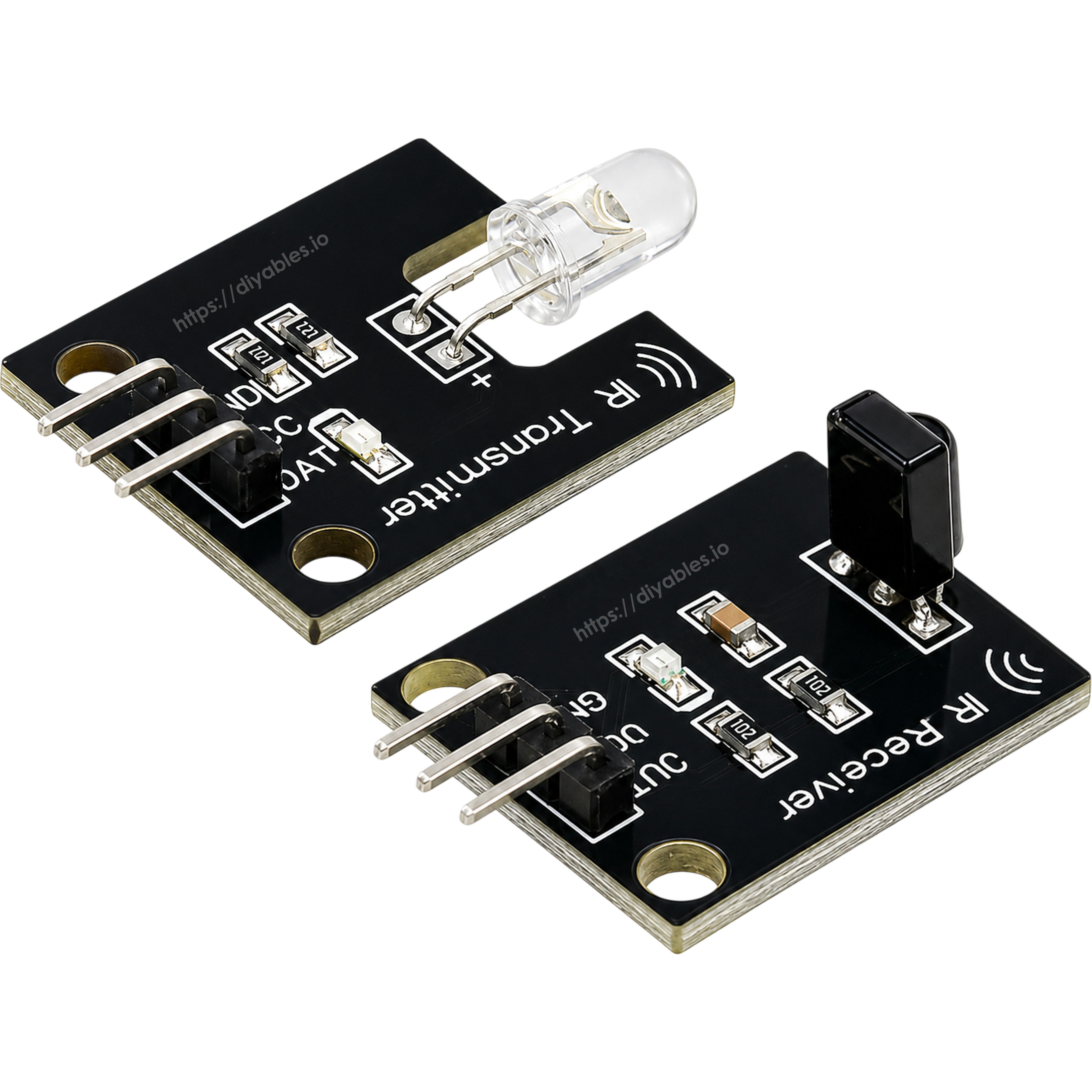

The DIYables 38KHz IR Receiver and Transmitter Sensor Module Kit includes both an infrared receiver and transmitter for complete IR communication in your projects. The receiver uses the 1838 chip with high sensitivity, a center wavelength of 850nm to 940nm, and a detection range of up to 1.3 meters. The transmitter uses a single-tube direct transmission design with a 20-degree emission angle, and the waveform is modulated by your program.

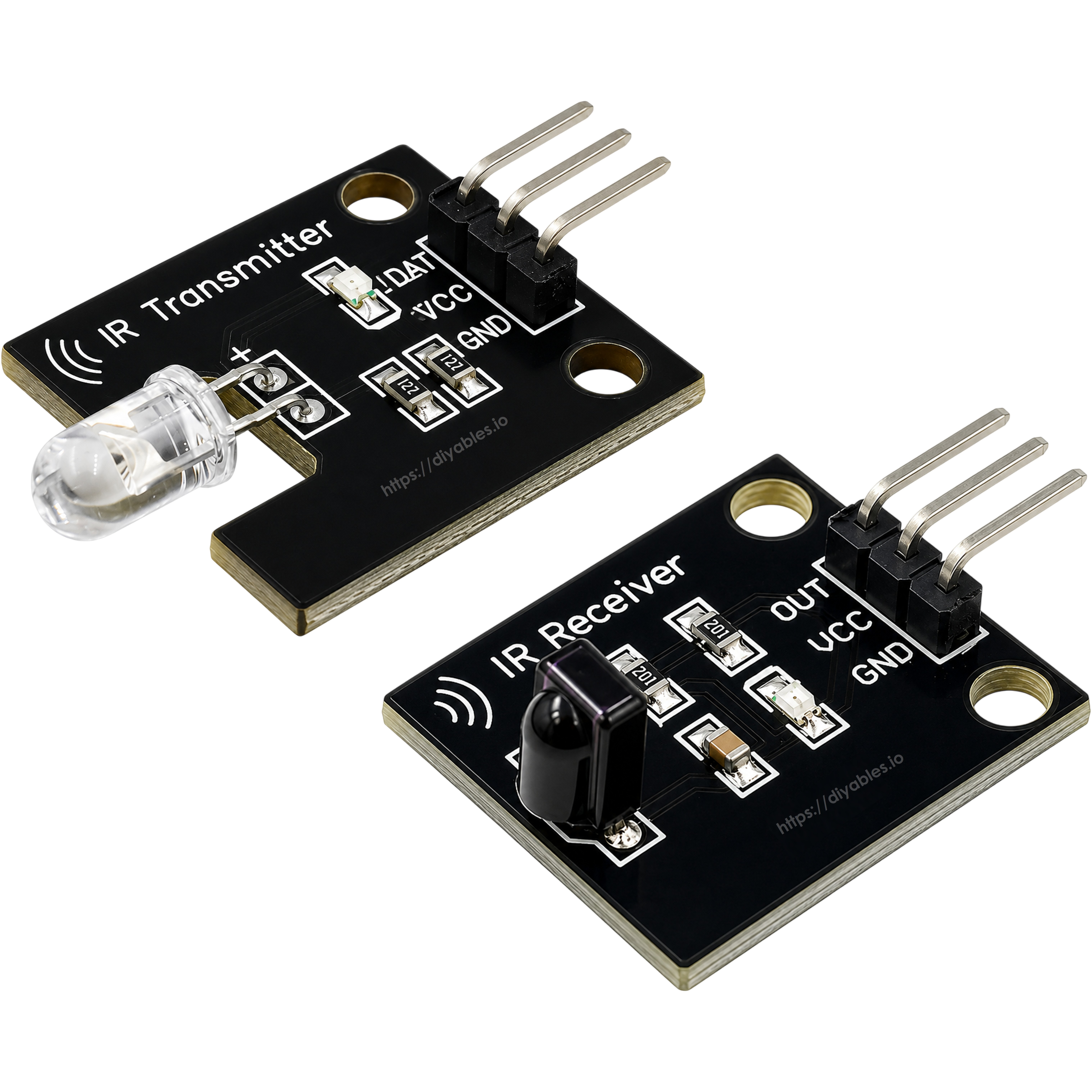

Each module features a real-time signal indicator LED on the transmitter side, making it easy to observe transmission status and debug your IR communication setup. Both modules operate at 5V with digital signal I/O — connect DAT to the digital output and OUT to the GPIO port of your microcontroller for simple integration.
Ideal for infrared remote control, IR communication, home automation, obstacle avoidance, and robotics projects using Arduino, ESP32, ESP8266, Raspberry Pi, and other 5V microcontroller platforms.
Key Features
- 1838 Infrared Receiver — High-sensitivity 1838 IR receiver chip operating at 38KHz with a detection range of up to 1.3 meters
- 850nm–940nm Wavelength — Center wavelength range of 850nm to 940nm for reliable infrared signal reception
- 20-Degree Emission Angle — Focused 20-degree IR emission angle for directional signal transmission
- Signal Indicator LED — Real-time signal indicator LED on the transmitter for easy observation and debugging during operation
- Single-Tube Transmitter Design — Direct single-tube infrared transmission; waveform modulation is handled in software for flexible control
- 5V Digital Signal I/O — Operates at 5V with digital signal output; simple three-wire connection (VCC, GND, DAT/OUT)

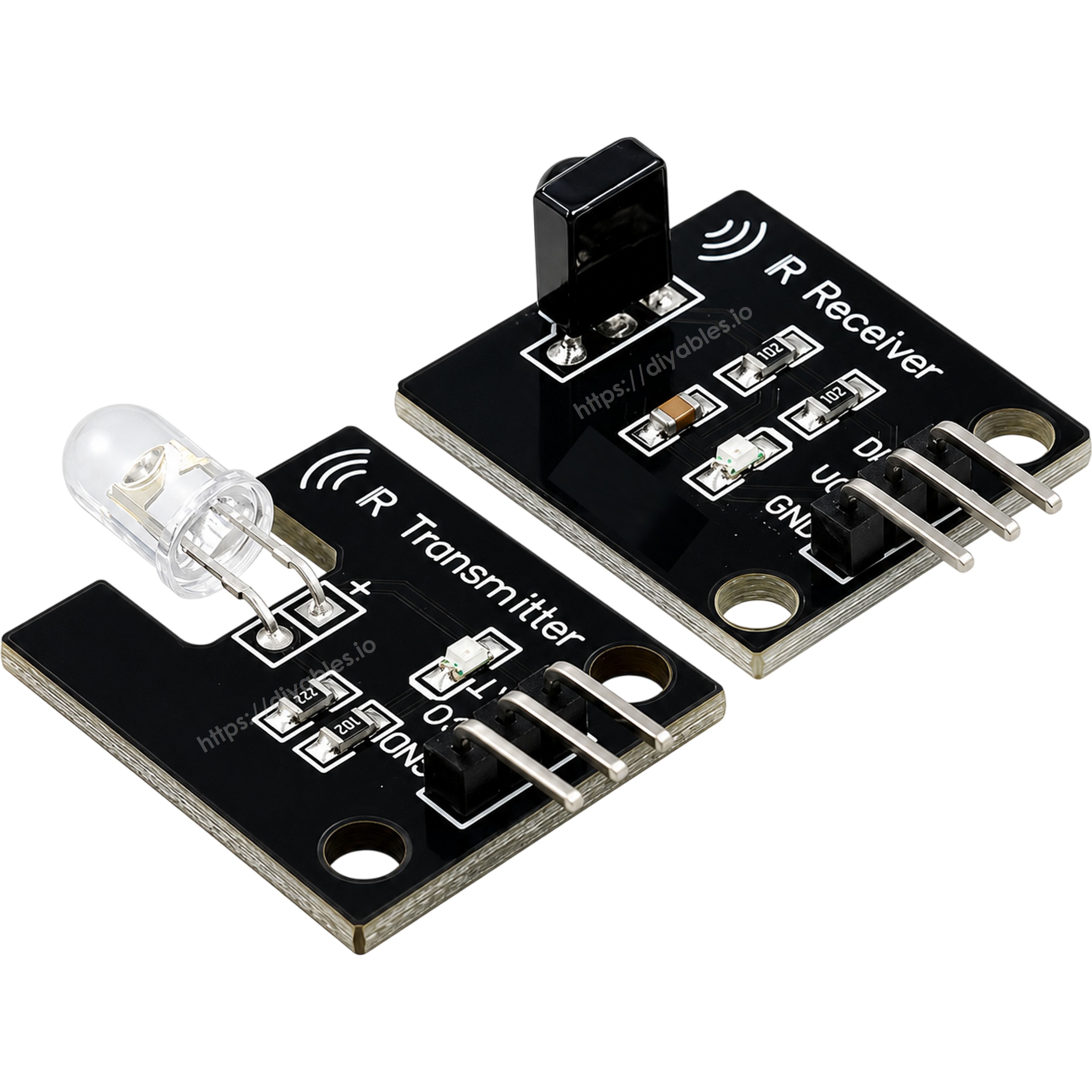

- M3 Mounting Holes — Two M3 fixing holes (3.1mm aperture) on each PCB for secure and easy installation
- Wide Compatibility — Works with Arduino, ESP32, ESP8266, Raspberry Pi, UNO R3, AVR, and ARM platforms
- 5 Sets Value Pack — Includes 5 complete IR receiver and transmitter module sets for multiple installations or spares
- Versatile Applications — Suitable for infrared remote control, IR communication, obstacle avoidance, home automation, and robotics
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | IR Receiver and Transmitter Sensor Module Kit |
| Receiver Chip | 1838 |
| Operating Voltage | 5V DC |
| Signal Type | Digital |
| Center Wavelength | 850nm – 940nm |
| Carrier Frequency | 38KHz |
| Detection Range | Up to 1.3 meters (at 5V, 38KHz) |
| Emission Angle | Approximately 20 degrees |
| Mounting Holes | 2 × M3 (3.1mm aperture) |

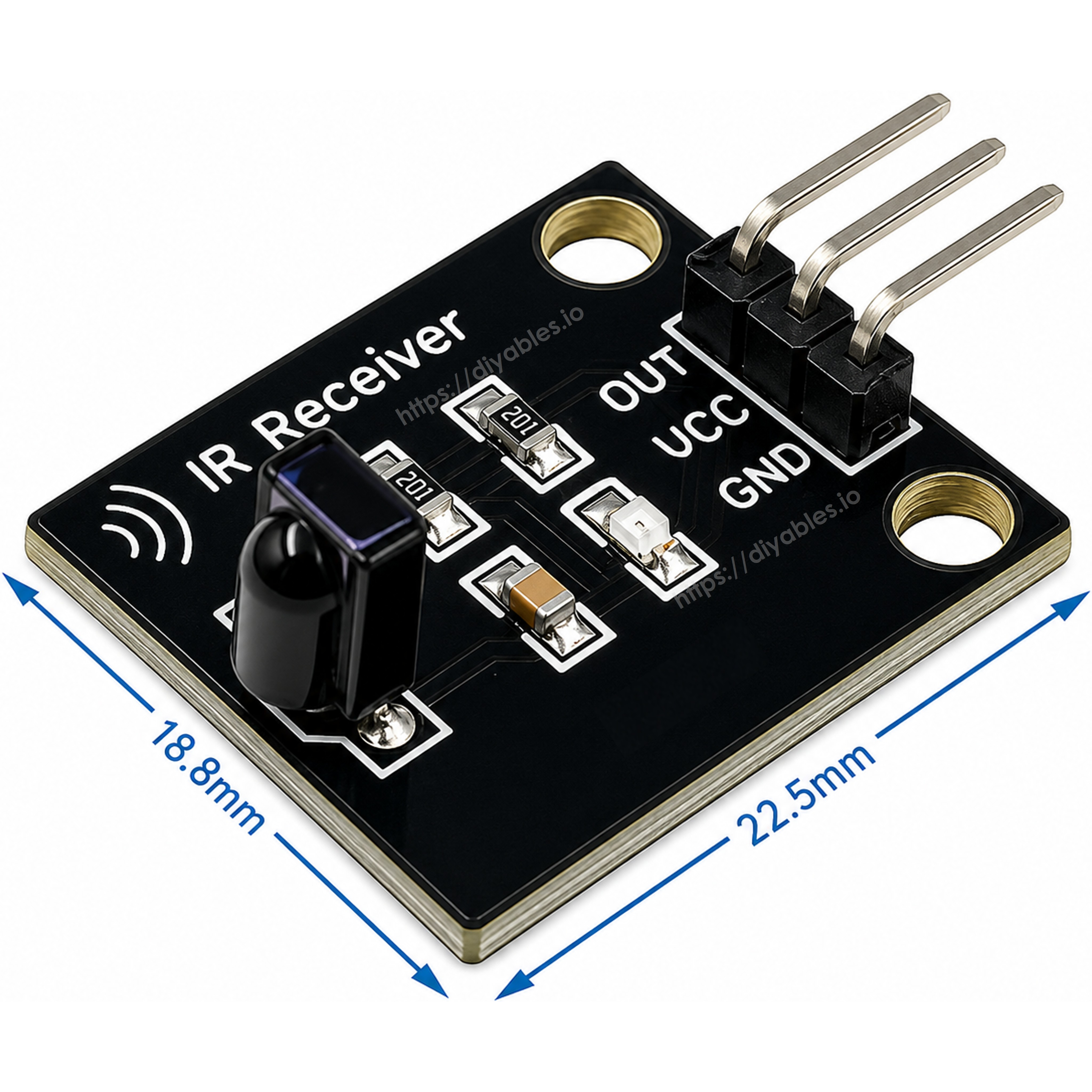

| Receiver PCB Size | 18.8mm x 22.5mm (approx.) |

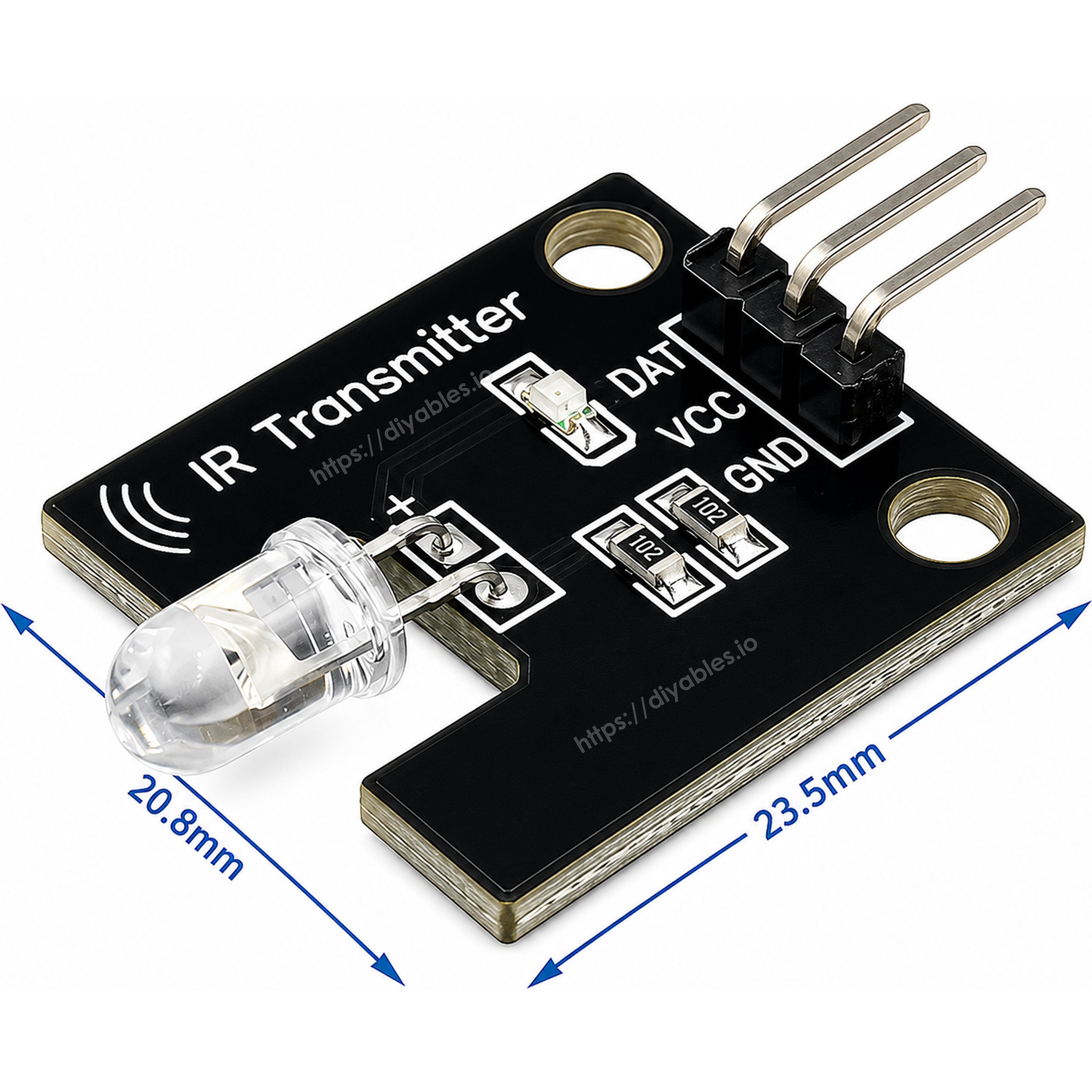

| Transmitter PCB Size | 20.8mm x 23.5mm (approx.) |
| Output Type | Digital output |
| Interface | Digital (DAT / OUT pin) |

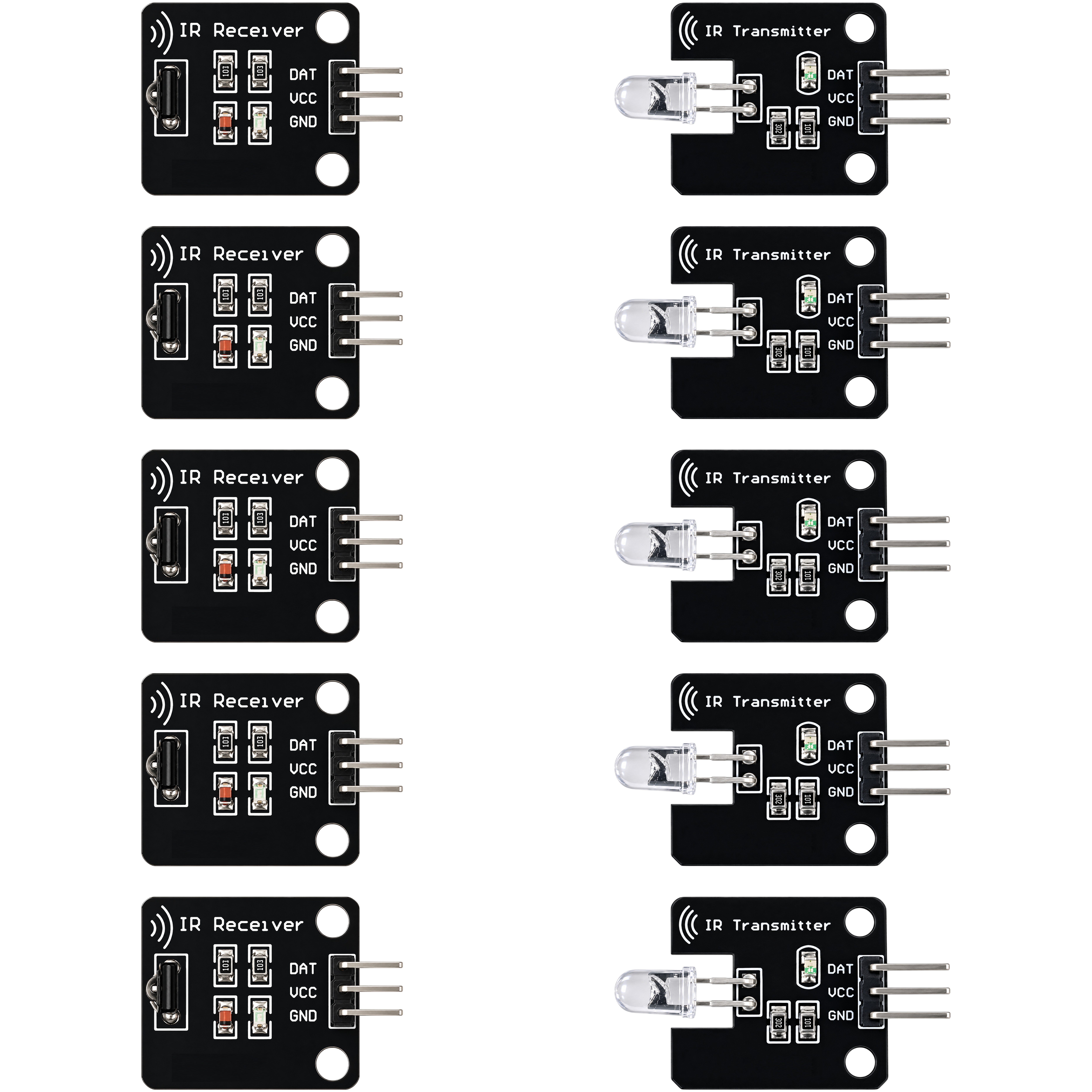

| Package Quantity | 5 Sets (5 receivers + 5 transmitters) |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, UNO R3, AVR, ARM |
| Applications | Infrared remote control, IR communication, obstacle avoidance, home automation, robotics |
PACKAGE
A package includes:
| Qty | Items |
|---|---|
| 5 | IR Receiver Module (1838 chip) |
| 5 | IR Transmitter Module |
COMPATIBLE HARDWARE
- Arduino boards (UNO, Mega, Nano, etc.) — 5V digital GPIO interface
- Arduino Uno R4 WiFi/Minima — 5V digital GPIO interface
- Arduino Nano ESP32 — digital GPIO interface
- Arduino Nano 33 IoT — digital GPIO interface
- Arduino MKR WiFi 1010 — digital GPIO interface
- ESP32 development boards — 3.3V/5V digital GPIO interface
- ESP32 C3 Super Mini — 3.3V/5V digital GPIO interface
- ESP8266 boards (NodeMCU, Wemos D1, etc.) — digital GPIO interface
- Raspberry Pi (all models) — digital GPIO interface
- Raspberry Pi Pico — digital GPIO interface
- Any microcontroller with a digital GPIO pin — 5V logic compatible
