DIYables GUVA-S12SD UV Sensor Module 240-370nm 130 Degree, Presoldered
Click to zoom
Quick Overview

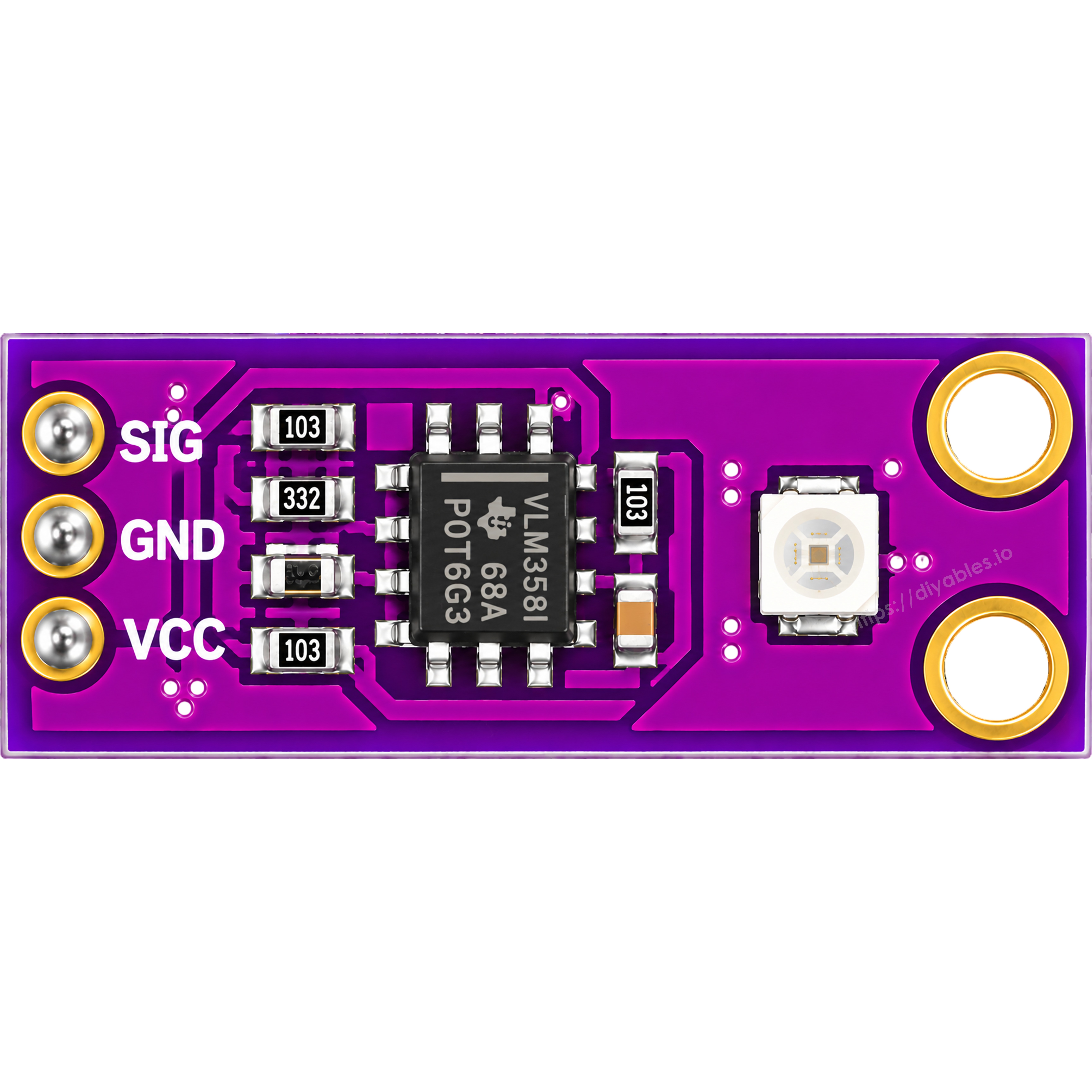

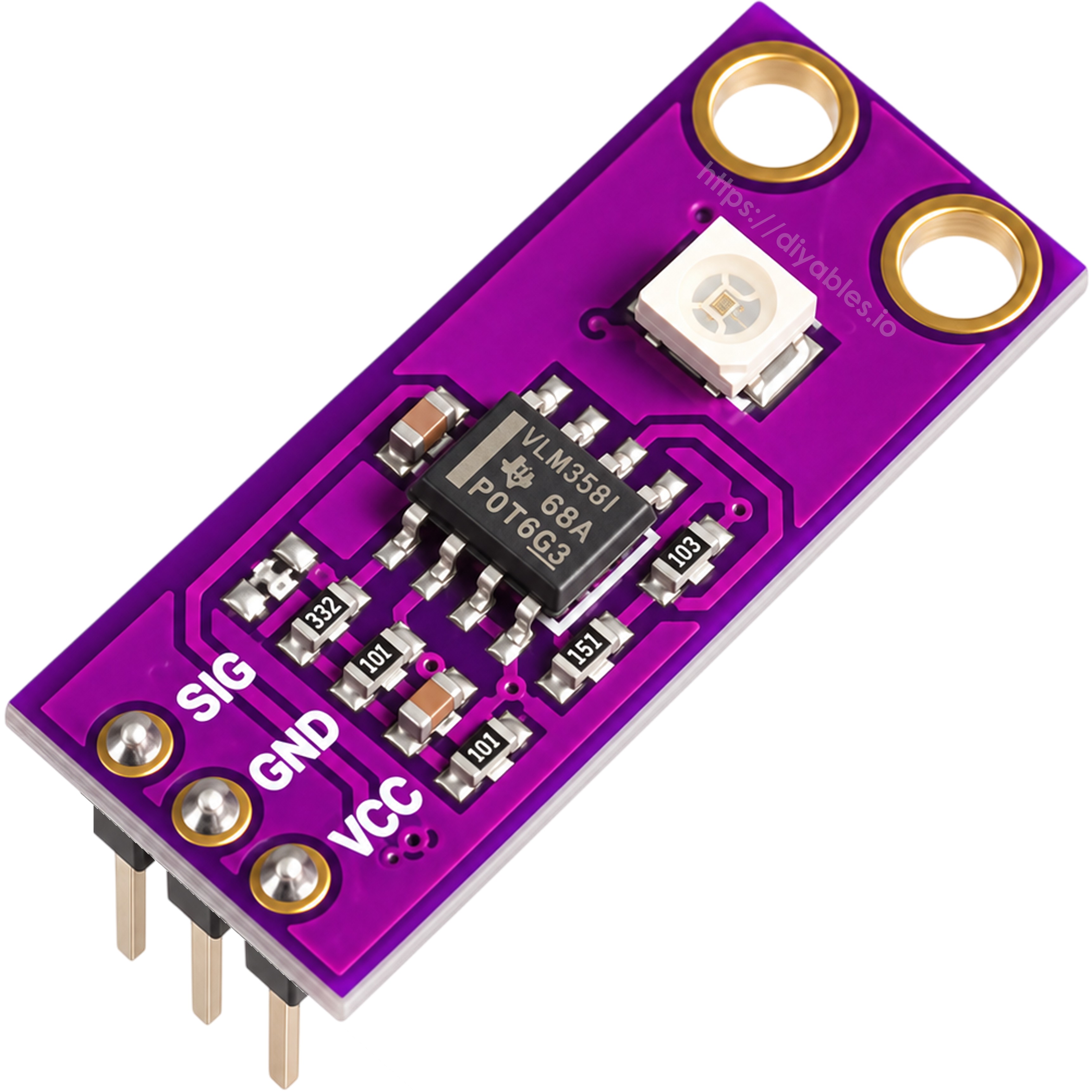

This DIYables GUVA-S12SD UV sensor module detects ultraviolet light across a 240nm to 370nm wavelength range, making it well suited for measuring solar intensity and sunlight exposure. Its 130 degree large angle detection area captures UV signal from a wide field of view rather than a narrow, direct-line sensing spot.

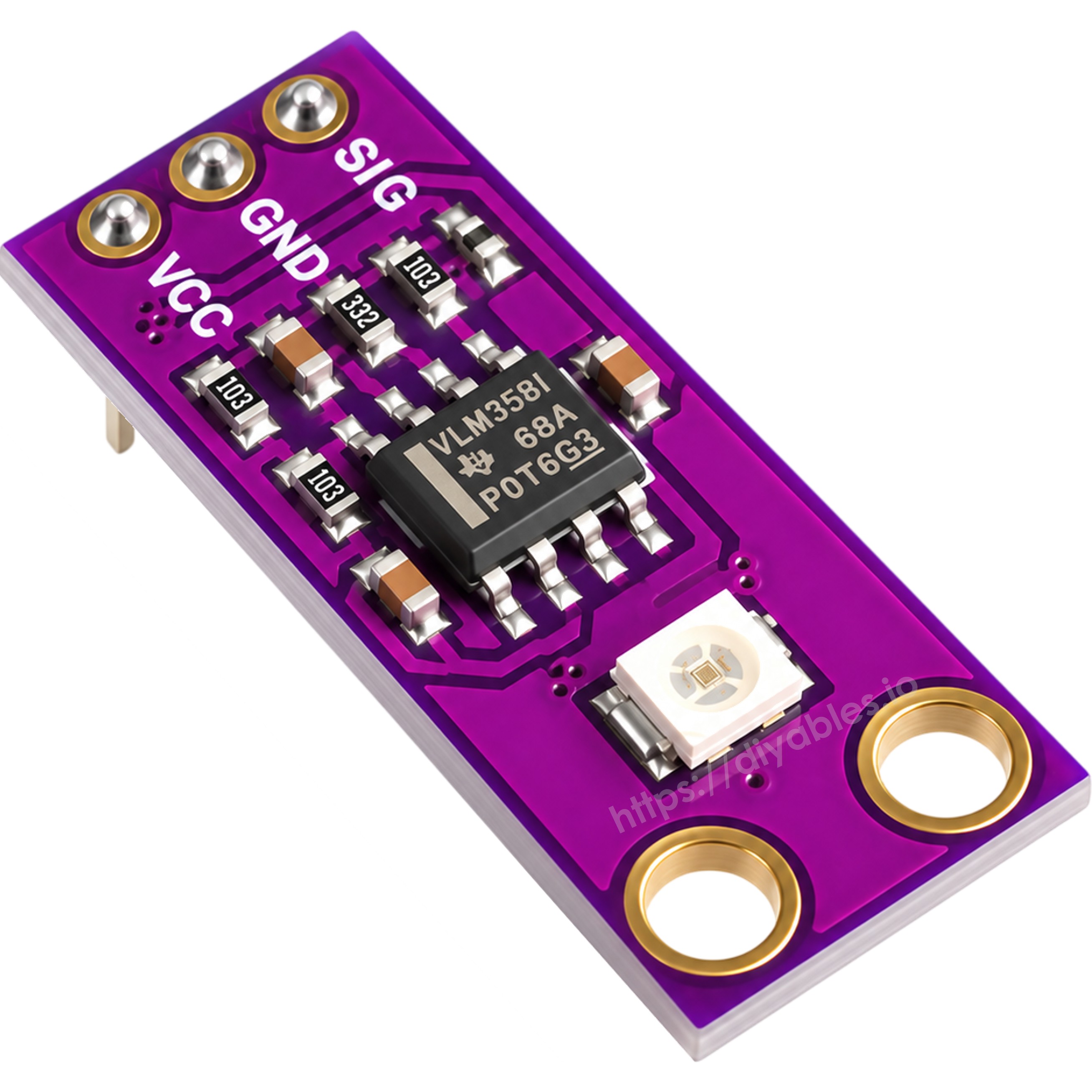

The module operates on a 2.5V to 5V supply with low power consumption and a good linear response, delivering high sensitivity and long-term stability for consistent readings. The compact 11mm x 27mm board comes presoldered with header pins for immediate breadboard use with Arduino, ESP32, and other 3.3V/5V microcontrollers.

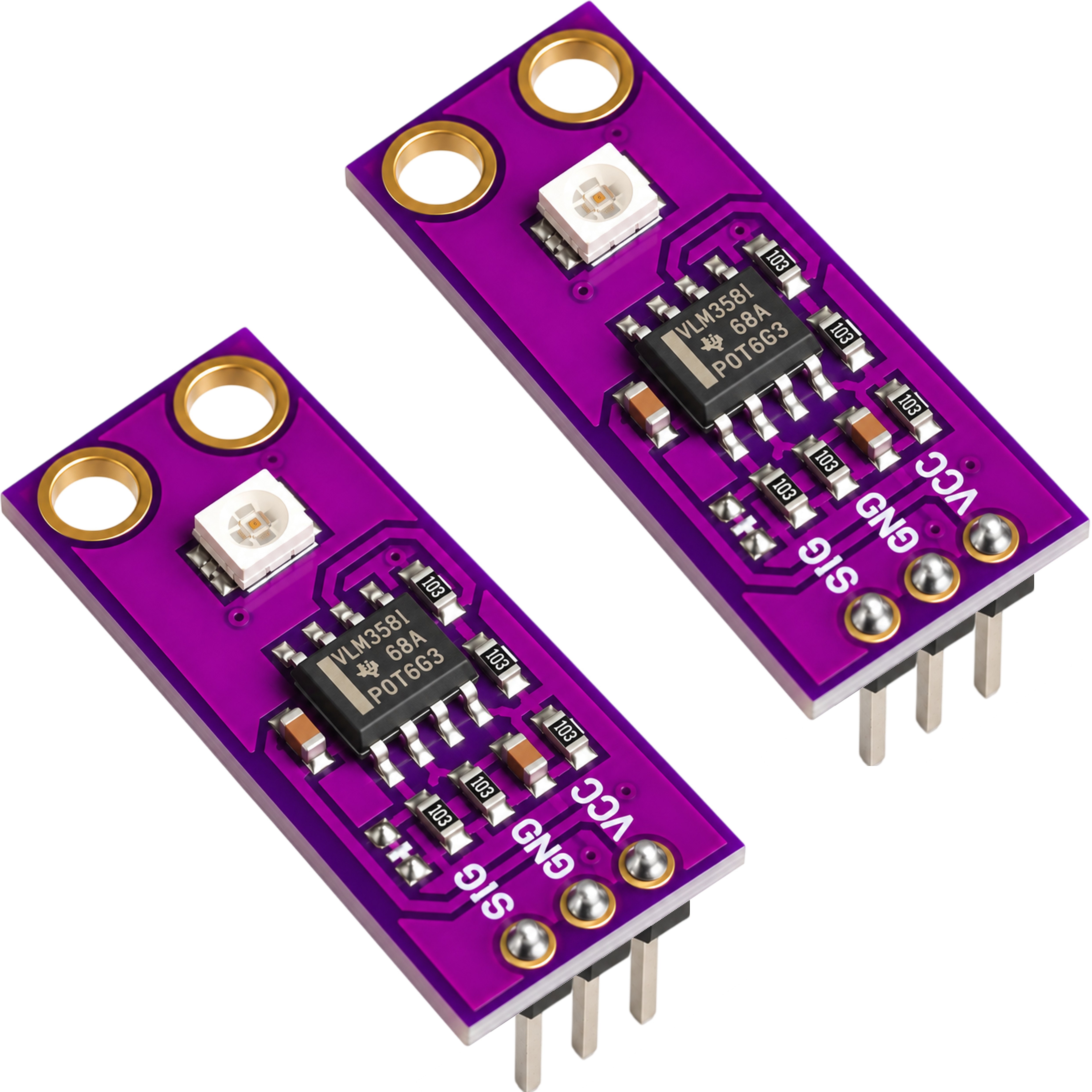

This listing includes 2 GUVA-S12SD UV sensor modules, ideal for UV testers, UV watches, outdoor sports equipment, solar intensity monitoring, and other Arduino-based UV detection projects.
Key Features
- Wide UV Detection Range — Detects UV wavelengths from 240nm to 370nm for accurate solar intensity and sunlight exposure measurement
- Compact Sensor Size — Compact 11mm x 27mm module with 130 degree large angle detection area fits easily into Arduino projects
- Low Power 2.5-5V Operation — Operates on a 2.5V to 5V supply with low power consumption and good linear response for consistent readings
- High Sensitivity and Stability — Delivers high sensitivity and long-term stability for reliable UV and solar intensity detection

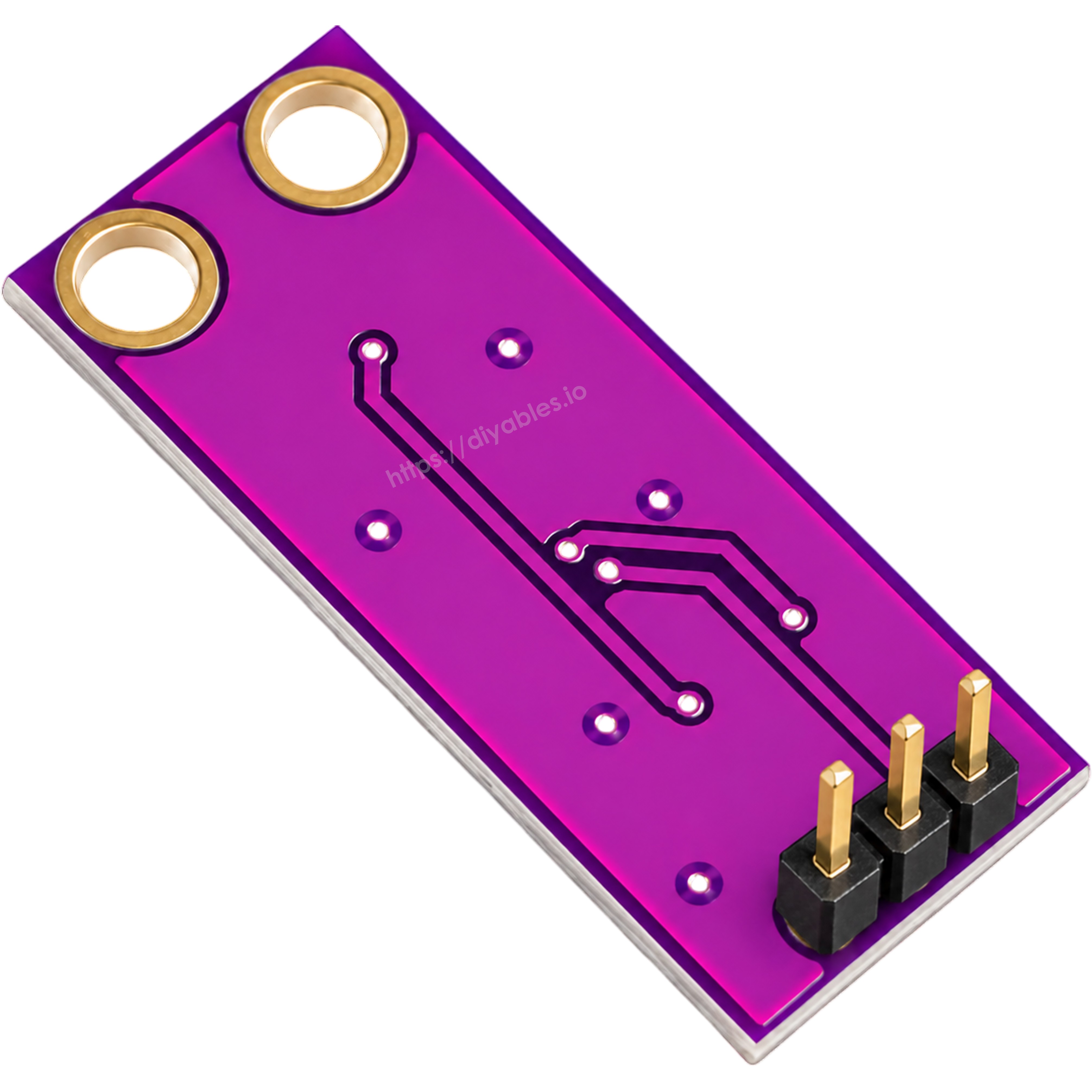

- Presoldered Ready to Use — Header pins are presoldered for immediate breadboard use without extra soldering
- 2-Pack Value Set — Includes 2 GUVA-S12SD UV sensor modules for multiple projects or spares
- Versatile Applications — Suited for UV testers, UV watches, outdoor sports equipment, and solar intensity monitoring
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | UV (Ultraviolet) Sensor Module |
| Sensor Chip | GUVA-S12SD |
| Wavelength Detection Range | 240nm - 370nm |
| Detection Angle | 130 degrees |
| Operating Voltage | 2.5V - 5V DC |
| Output Type | Analog |
| Board Dimensions | 11mm x 27mm |
| Header | Presoldered |
| Package Quantity | 2 pieces |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi |
| Applications | UV testers, UV watches, outdoor sports equipment, solar intensity monitoring |
COMPATIBLE HARDWARE
- Arduino boards (UNO, Mega, Nano, etc.) — Analog input pin
- Arduino Uno R4 WiFi/Minima — Analog input pin
- ESP32 development boards — ADC input pin
- ESP8266 boards (NodeMCU, Wemos D1, etc.) — ADC input pin
- Raspberry Pi (all models) — Requires external ADC (no native analog input)
- Any microcontroller with an analog input pin — 2.5V-5V logic compatible
