DIYables DIYables MEGA2560 R3 Development Board Compatible with Arduino Mega 2560 Rev3, ATmega2560 ATmega16U2, USB Cable Included, Microcontroller Board for Projects
Click to zoom
Quick Overview

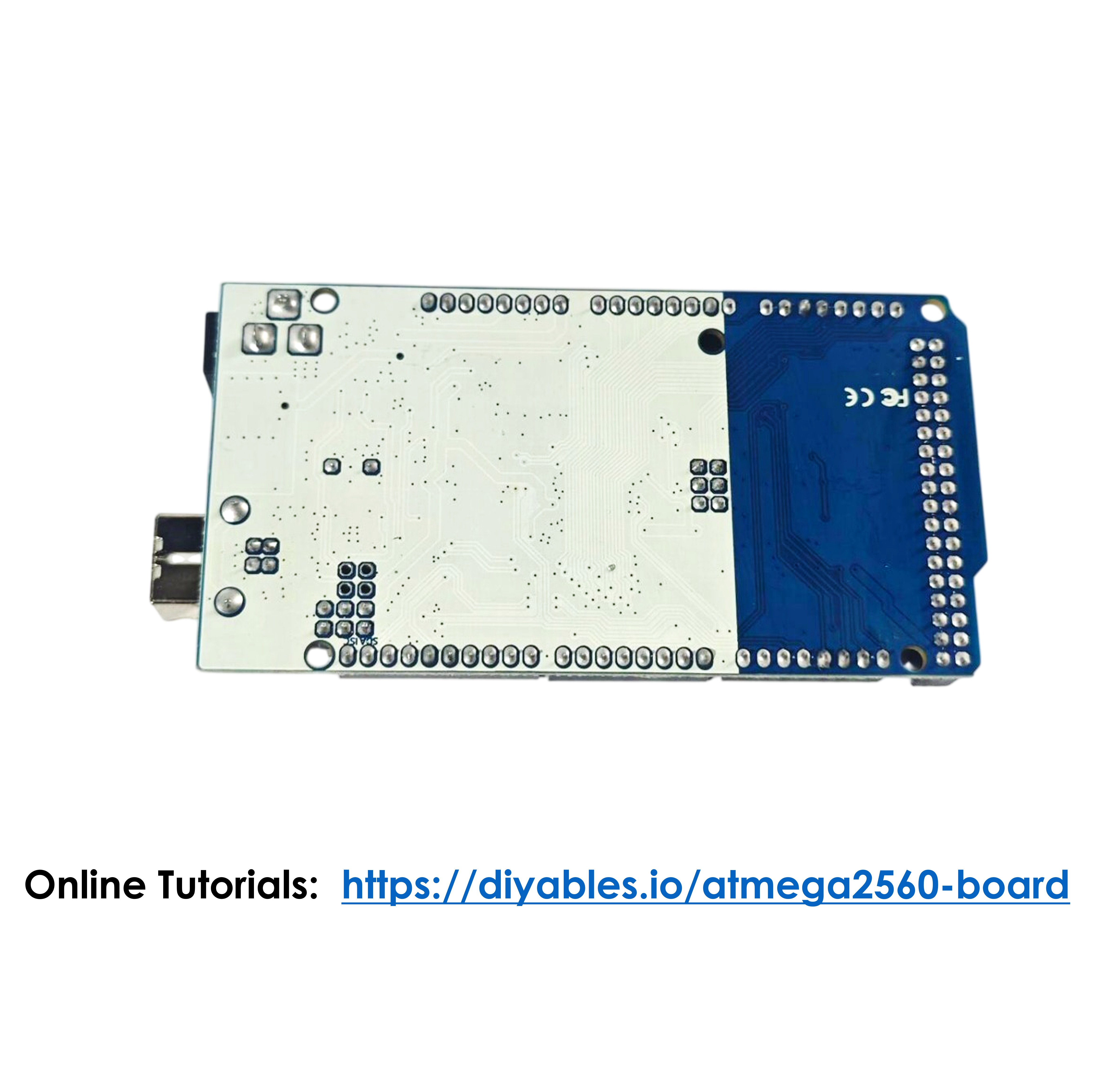

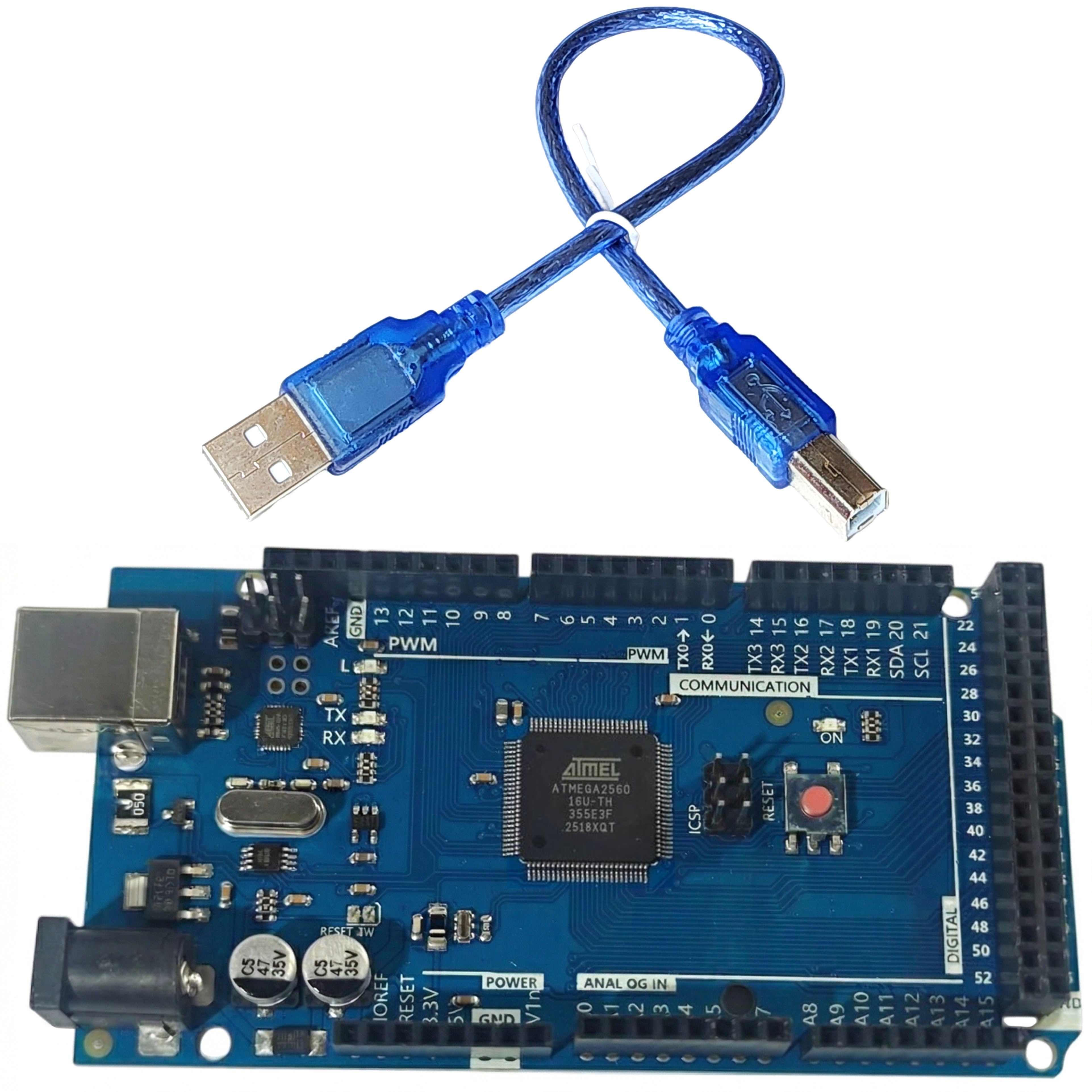

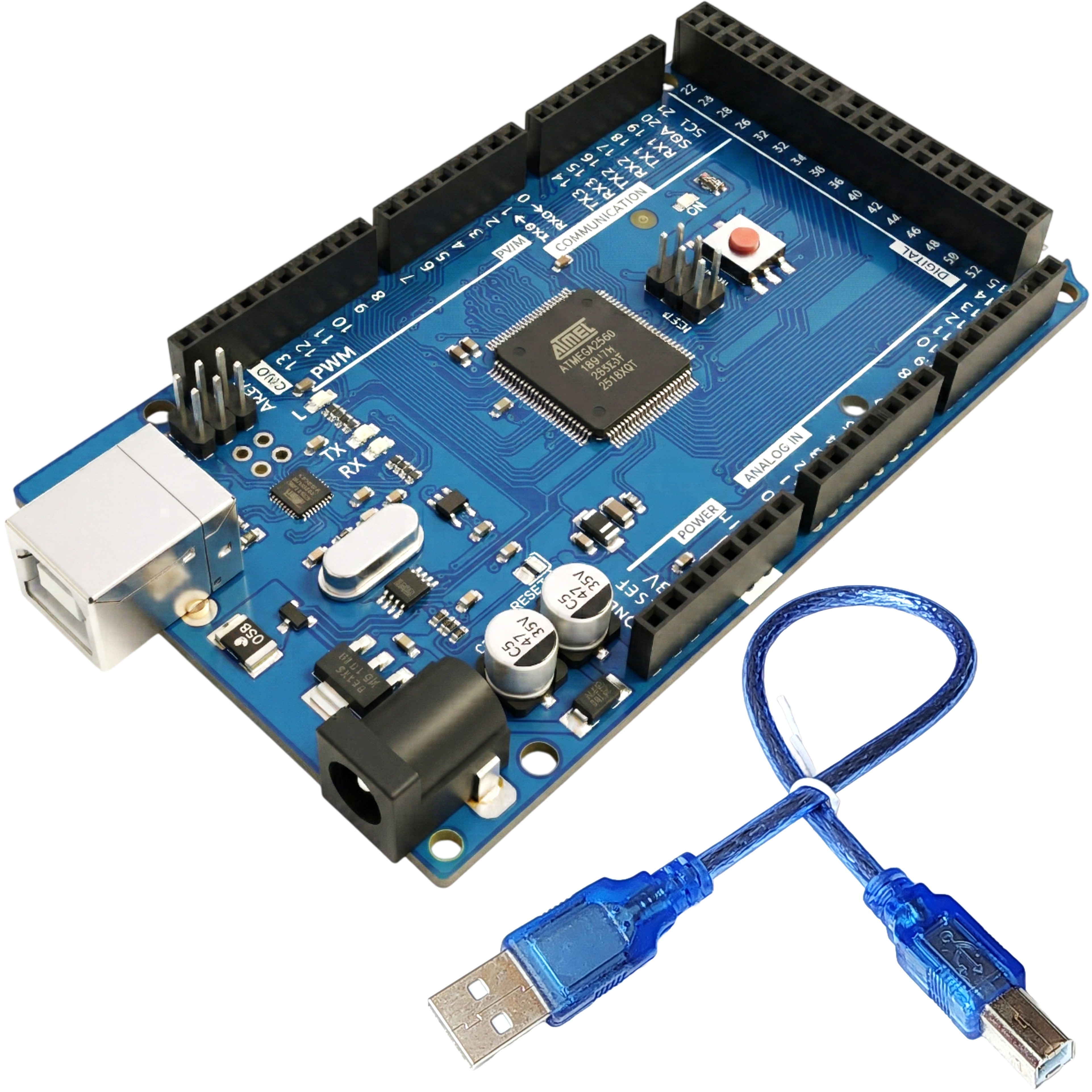

The DIYables MEGA2560 R3 development board is fully compatible with Arduino Mega 2560 Rev3, offering the same pin layout, functionality, and programming experience. Powered by the ATmega2560 microcontroller with ATmega16U2 as the USB-to-serial converter (replacing the older ATmega8U2), this board provides 54 digital I/O pins (15 PWM), 16 analog inputs, USB connectivity, and a 16 MHz crystal oscillator.
The board operates at 5V with a recommended input voltage of 7-12V and includes 256 KB flash memory, 8 KB SRAM, and 4 KB EEPROM for advanced projects. It connects via USB for easy programming with the Arduino IDE and can be powered through USB or an external DC adapter. A USB cable is included for immediate setup right out of the box.
Ideal for complex electronics, robotics, home automation, IoT applications, and embedded system development, this board delivers a high pin count and ample memory for projects that require more I/O and processing capability than standard Arduino boards.
Key Features
- Compatible with Arduino Mega 2560 — Fully compatible with Arduino IDE and Mega 2560 Rev3 projects for easy coding, uploading, and prototyping
- ATmega2560 with ATmega16U2 — Features ATmega2560 microcontroller with ATmega16U2 USB-to-serial converter for stable communication and reliable performance
- High Pin Count and Flexibility — Provides 54 digital I/O pins including 15 PWM outputs and 16 analog inputs for complex electronics and IoT applications
- Stable Power and Memory — Operates at 5V with recommended input 7V to 12V and includes 256 KB flash, 8 KB SRAM, and 4 KB EEPROM for advanced projects
- USB Cable Included Ready to Use — Comes with USB cable for immediate setup, ideal for Arduino learning, robotics, automation, and embedded system development
- 16 MHz Clock Speed — Fast execution for real-time control applications
- Arduino IDE Compatible — Works with all standard Arduino libraries and sketches
- Shield Compatible — Standard Mega pin layout accepts all Arduino Mega shields
- External Power Support — 7-12V DC input via barrel jack for standalone operation
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | Development Board (Arduino Mega 2560 Compatible) |
| Microcontroller | ATmega2560 |
| USB-to-Serial Converter | ATmega16U2 |
| Operating Voltage | 5V |
| Input Voltage (Recommended) | 7-12V |
| Input Voltage (Limit) | 6-20V |
| Digital I/O Pins | 54 (15 PWM) |
| Analog Input Pins | 16 |
| DC Current per I/O Pin | 40 mA |
| DC Current for 3.3V Pin | 50 mA |
| Flash Memory | 256 KB (8 KB used by bootloader) |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Clock Speed | 16 MHz |
| USB Interface | USB-B |
| Included Accessories | USB cable |
Tutorials
COMPATIBLE HARDWARE
This DIYables MEGA2560 R3 board is compatible with all Arduino Mega shields and accessories including:
- Arduino Mega Shields
- Sensor Modules
- Motor Driver Shields
- LCD Display Modules
- TFT Touch Screen Shields
- Relay Modules
- Servo Motors
- Stepper Motors with Drivers
- LED Modules and Strips
- Buzzer Modules
- Button and Switch Modules
- Temperature and Humidity Sensors
- Ultrasonic Distance Sensors
- 3D Printer Controller Boards (RAMPS)
ARDUINO IDE BOARD SELECTION
- Connect the DIYables MEGA2560 R3 Development board to your computer using a USB cable.
- Launch the Arduino IDE on your computer.

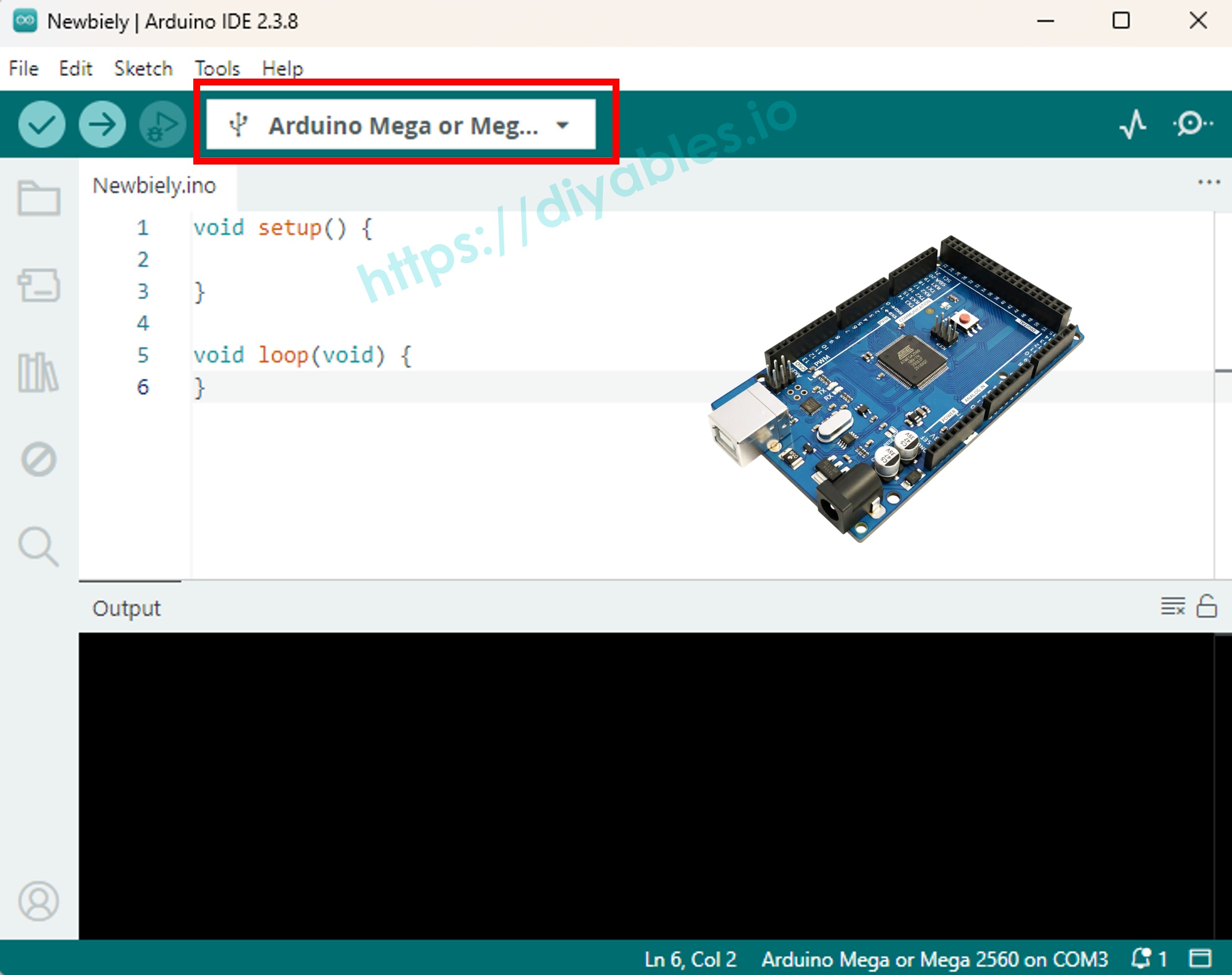

- Select the Arduino Mega or Mega 2560 and COM port.
