DIYables ESP32-S3-WROOM-1-N16R8 Dev Board and Screw Terminal Board, Presoldered
Click to zoom
Quick Overview

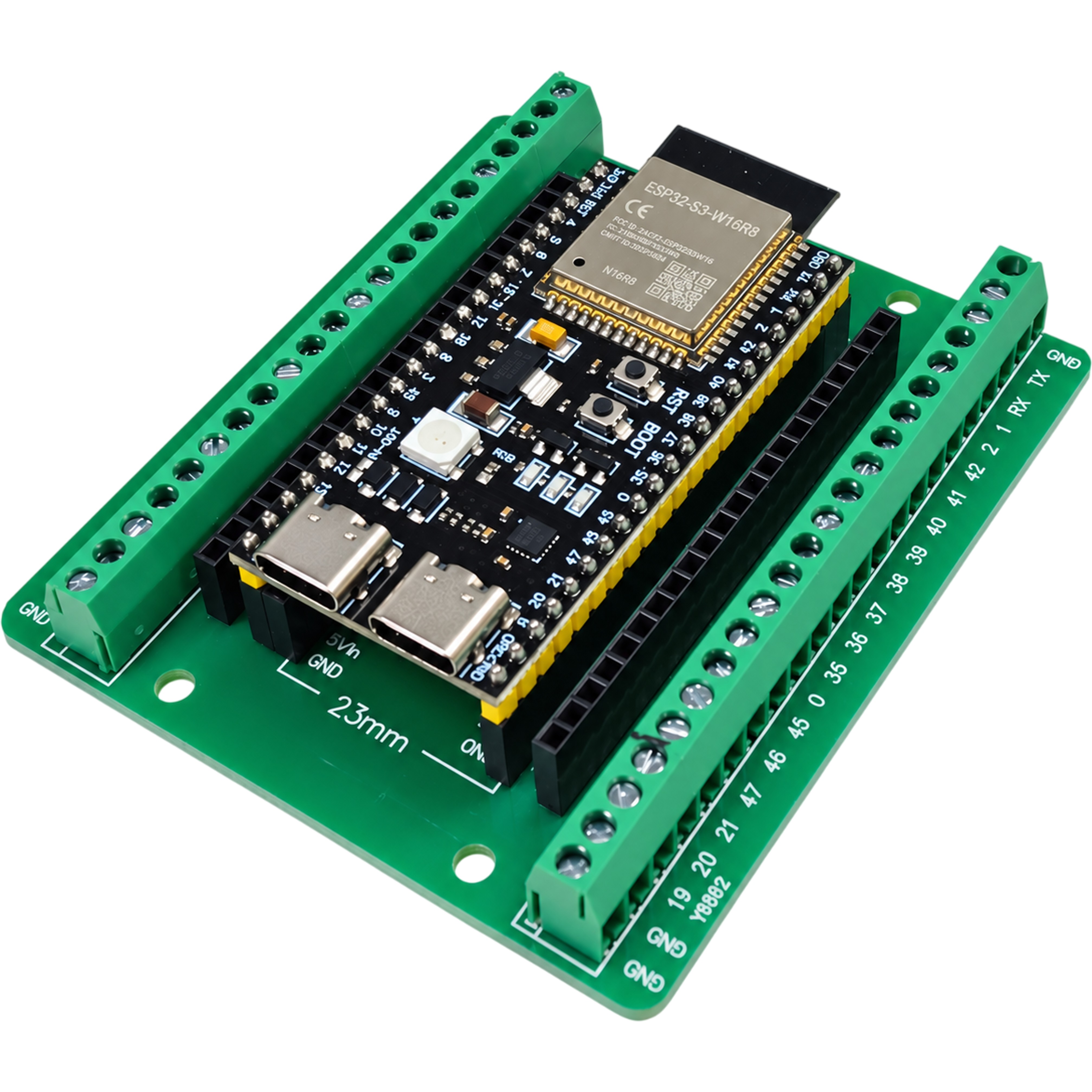

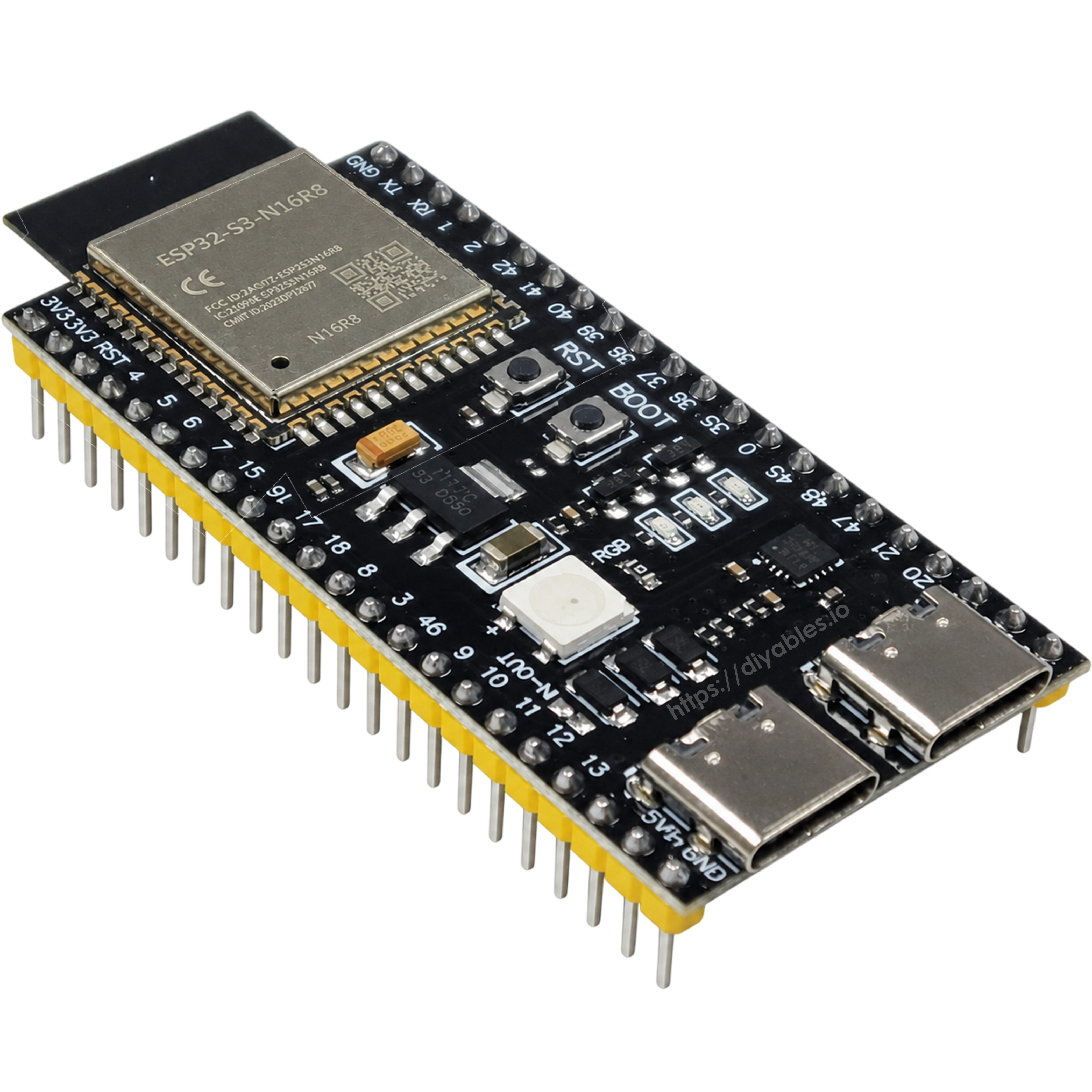

This DIYables combo pairs an ESP32-S3-WROOM-1-N16R8 development board with a stackable 44 pin screw terminal expansion board, so you get both the compute module and a clean way to wire it up. The dev board is built around the ESP32-S3-WROOM-1-N16R8 module with a dual-core processor, 16MB flash, 8MB PSRAM, 512KB SRAM, and 384KB ROM, plus integrated 2.4GHz WiFi and Bluetooth 5 LE dual-mode wireless for IoT, AI, and automation work. Two USB Type-C ports handle programming, debugging, and flashing through either USB direct connection or UART download mode, and the header pins arrive presoldered so the board drops straight onto a breadboard.

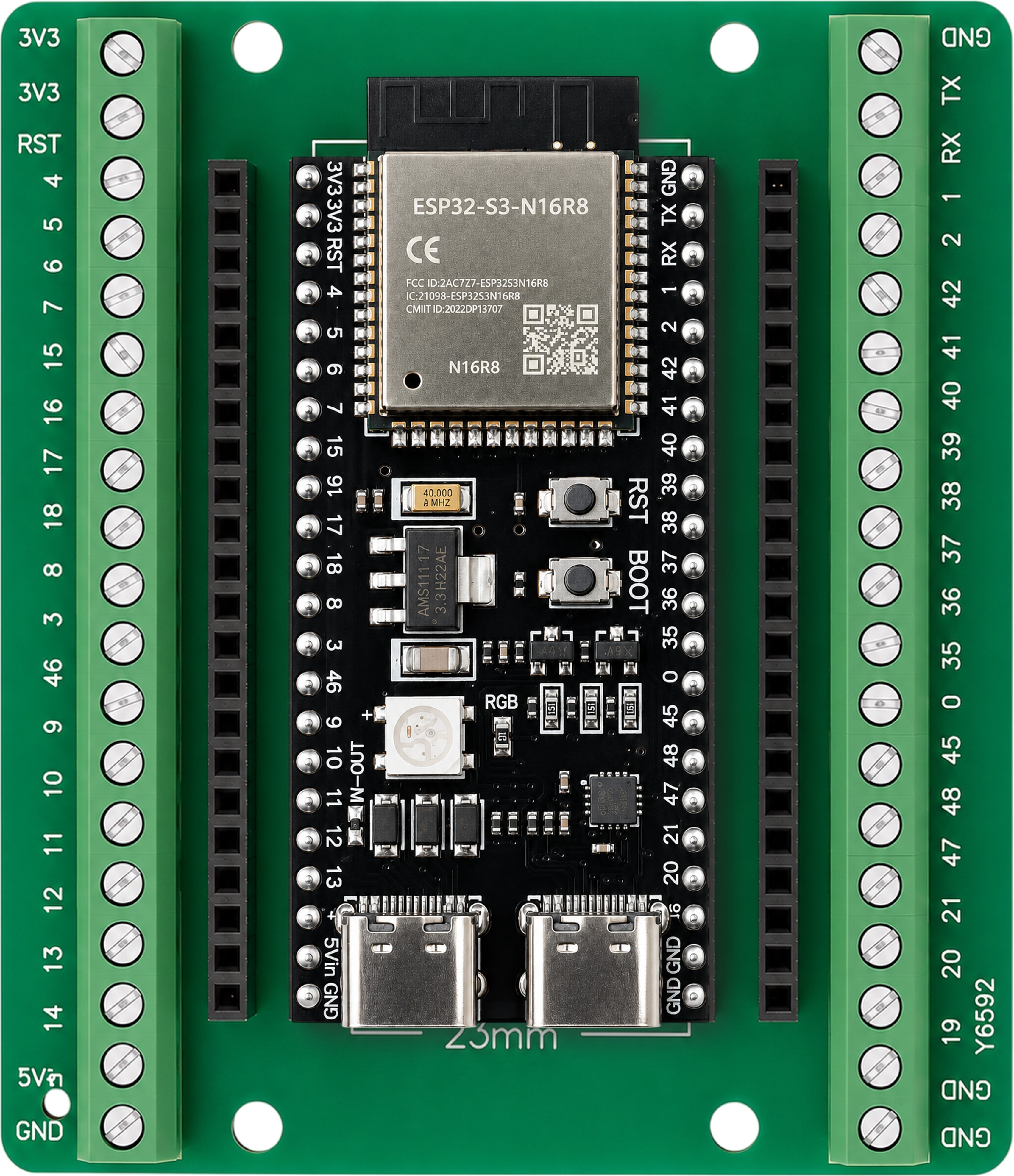

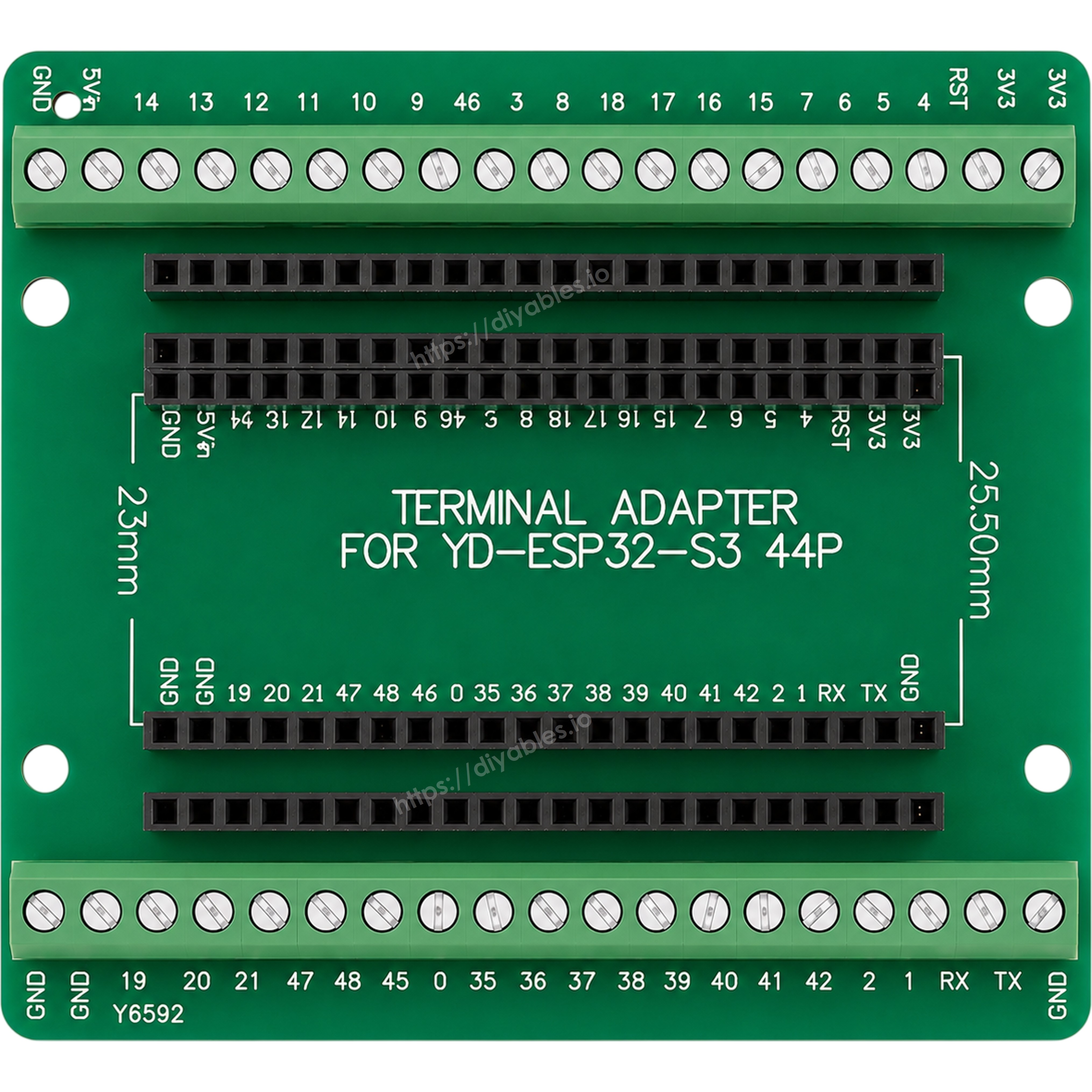

The expansion board takes that dev board on top and routes every one of its 44 pins out to a clearly labeled industrial grade screw terminal. Wires go in with a screwdriver instead of a soldering iron, solid and stranded conductors both clamp down securely, and the connection holds through vibration in a way jumper wires never do. A pin header row sits alongside the terminals, so standard jumper connections stay available wherever they are more convenient.
Ideal for robotics, home automation, industrial control panels, sensor networks, IoT deployments, and any build that starts on the bench and ends up permanently installed. Development works through Arduino IDE, MicroPython, or ESP-IDF.
Key Features
- ESP32-S3-WROOM-1-N16R8 Module — 16MB flash, 8MB PSRAM, 512KB SRAM, and 384KB ROM dual-core module for powerful IoT, AI, and embedded applications
- WiFi and Bluetooth 5 LE — Integrated 2.4GHz WiFi and Bluetooth 5 LE dual-mode communication for smart devices and wireless control
- Dual USB Type-C Ports — Supports programming, debugging, and flashing via USB direct connection or UART download mode
- Onboard RGB LED and Buttons — Addressable RGB LED plus RST and BOOT buttons on the dev board for status output and download mode
- Presoldered Dev Board — Header pins are presoldered for quick breadboard setup without extra soldering
- Stackable Screw Terminal Board — The 44 pin dev board plugs directly on top of the expansion board, no wiring harness needed
- All 44 Pins Broken Out — Every GPIO is routed to a clearly labeled screw terminal for organized, professional wiring
- No Soldering Required — Industrial grade terminals accept wires directly with simple screwdriver tightening
- Vibration Resistant Connections — Screw-down terminals hold solid or stranded wire firmly for long term and industrial installations
- Dual Connection Design — Screw terminal blocks and standard pin header rows are both available for flexible wiring
- Clearly Labeled Pins — Pin names are printed beside each terminal for quick identification and error free wiring
- Arduino IDE, MicroPython, and ESP-IDF Compatible — Full support across all three development environments
- Tutorial Support — Step by step ESP32-S3 tutorials are available online
- Versatile Applications — Robotics, home automation, industrial control, sensor networks, and IoT deployments
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | ESP32-S3 Development Board and Screw Terminal Expansion Board Combo |
| Module | ESP32-S3-WROOM-1-N16R8 |
| Flash Memory | 16 MB |
| PSRAM | 8 MB |
| SRAM | 512 KB |
| ROM | 384 KB |
| WiFi | 2.4 GHz 802.11 b/g/n |
| Bluetooth | Bluetooth 5 LE |
| USB Ports | Dual USB Type-C |
| Dev Board Header Pins | Presoldered |
| Dev Board Extras | Addressable RGB LED, RST button, BOOT button |
| Expansion Board Type | Stackable screw terminal breakout |
| Expansion Board Pins | 44 pins, all broken out to labeled screw terminals |
| Connection Options | Screw terminal block and pin header rows |
| Wire Compatibility | Solid core and stranded wires |
| Operating Voltage | 3.3V |
| Input Voltage | 5V via USB Type-C |
| Package Quantity | 1 dev board and 1 expansion board |
| Compatibility | Arduino IDE, MicroPython, ESP-IDF |
| Applications | Robotics, home automation, industrial control, sensor networks, IoT |
※ NOTE THAT:

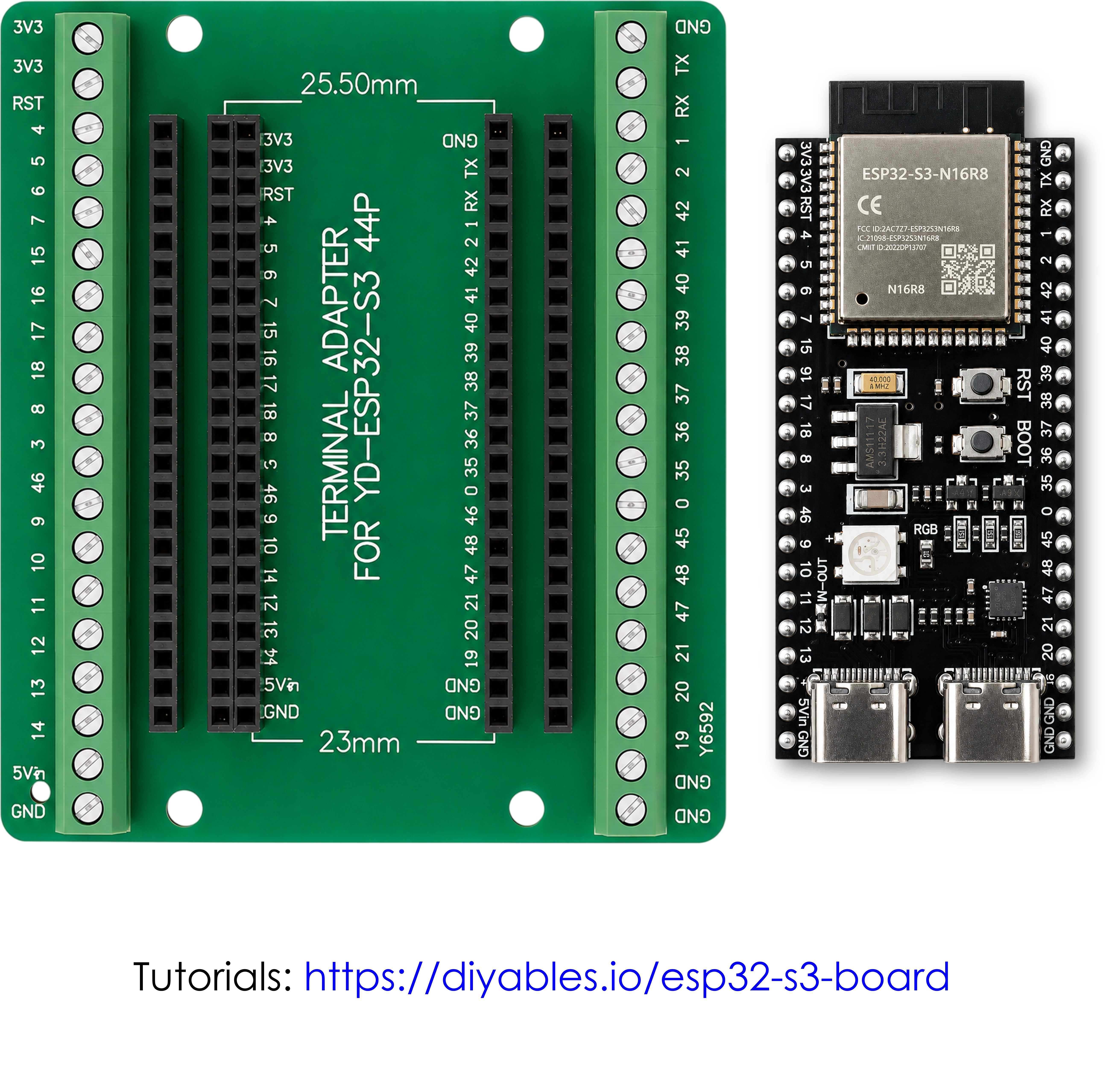

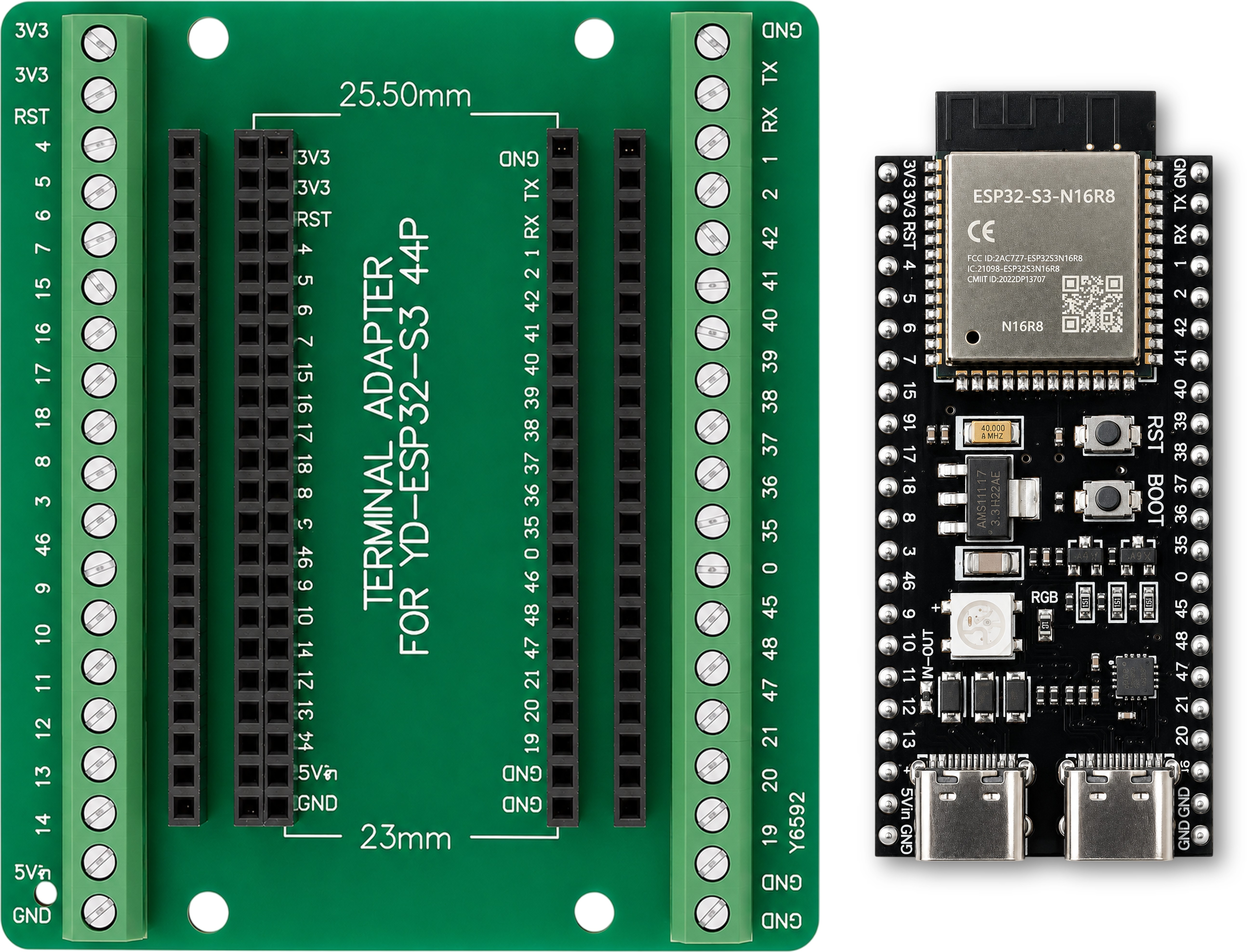

The screw terminal expansion board works only with ESP32-S3 boards that have exactly 44 pins matching its socket layout, such as the included ESP32-S3-WROOM-1-N16R8 dev board. There is no standard ESP32-S3 board layout, so it is not a universal fit for all ESP32-S3 variants.
If using the ESP32-S3 with analog sensors, configure the ADC with 11 dB attenuation to set the voltage reference range to handle up to 3.3V.
PACKAGE
A package includes:
| Qty | Items |
|---|---|
| 1 | ESP32-S3-WROOM-1-N16R8 Development Board (Presoldered) |
| 1 | 44-Pin Screw Terminal Expansion Board |
