DIYables ESP32-S3 Supermini Development Board WiFi Bluetooth 5 ESP32-S3FH4R2 for Arduino MicroPython, Ultra Small IoT Module, Presoldered
Click to zoom
Quick Overview
The DIYables ESP32-S3 Super Mini is an ultra-compact development board powered by the ESP32-S3FH4R2 chip, featuring built-in WiFi 802.11b/g/n and Bluetooth 5.0. At just 23.2mm × 18.2mm, it delivers the full wireless capability of the ESP32-S3 in one of the smallest available form factors, making it compatible with Arduino IDE and MicroPython for flexible development.
Header pins come pre-soldered, so the board plugs directly into a breadboard or connects to modules without any additional soldering. The ESP32-S3FH4R2 integrates 4MB flash and 2MB PSRAM, providing ample memory for embedded applications, wireless communication, and sensor data handling.
Ideal for space-constrained IoT builds, wearable electronics, wireless sensing nodes, and portable embedded projects where a compact yet powerful microcontroller is required.
Key Features
- Presoldered Ready to Use — Header pins pre-soldered for instant breadboard and module connection, no soldering required
- ESP32-S3FH4R2 Chip — Dual-core Xtensa LX7 processor with 4MB flash and 2MB PSRAM for capable embedded processing
- WiFi 802.11b/g/n — 2.4 GHz WiFi for reliable wireless IoT connectivity and network communication
- Bluetooth 5.0 — Bluetooth 5 (BLE) support for low-power wireless device pairing and data transfer

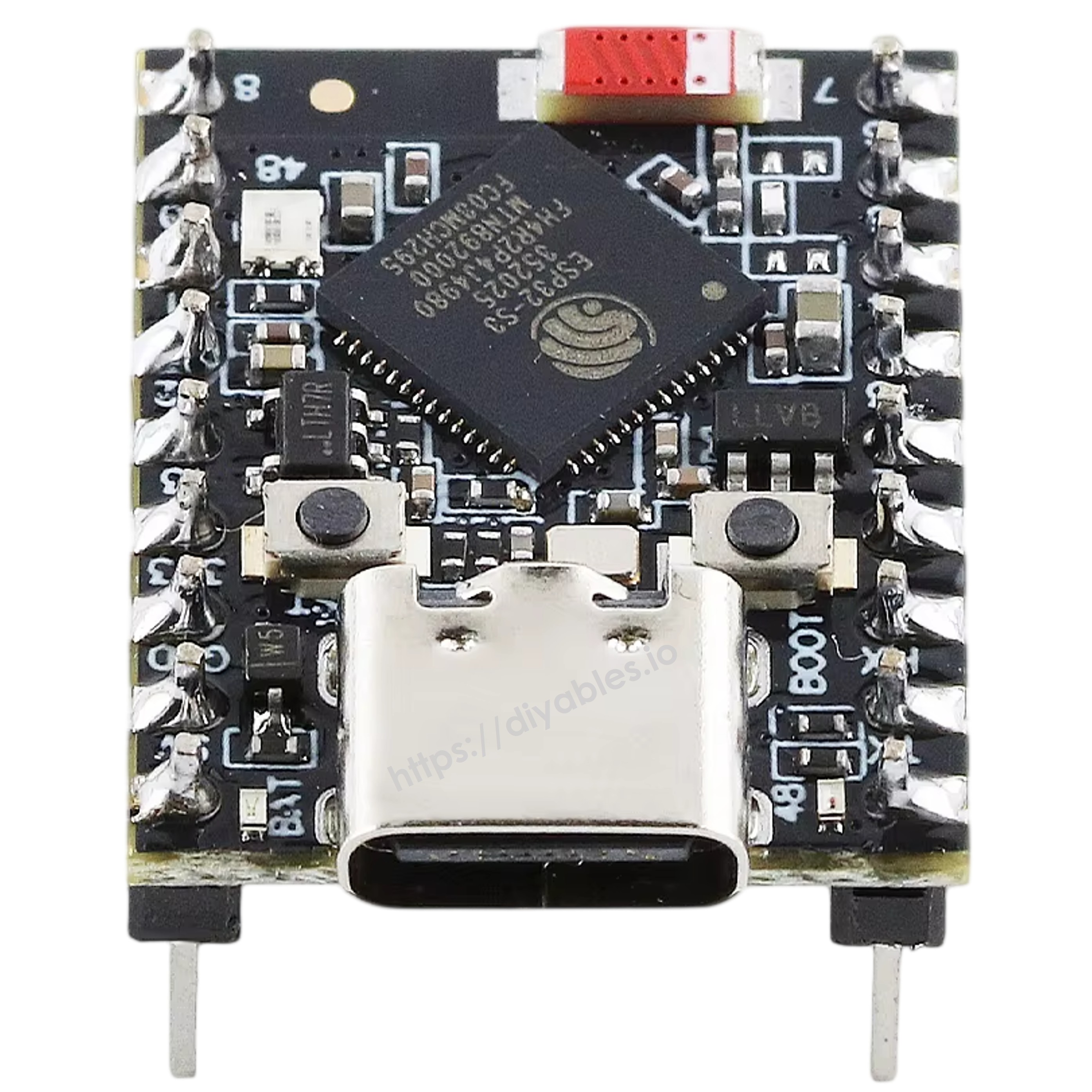

- Ultra Compact Design — Only 23.2mm × 18.2mm footprint with lightweight build, ideal for space-constrained and wearable projects
- High Performance & Stable — Efficient processing architecture with stable operation even in demanding embedded environments
- Arduino IDE Support — Fully compatible with Arduino IDE for programming with familiar C/C++ workflow
- MicroPython Support — Supports MicroPython for rapid prototyping and development with Python syntax
- Wide Compatibility — Works with Arduino IDE, MicroPython, and ESP-IDF for versatile development options
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | Development Board |
| Model/Chip | ESP32-S3FH4R2 |
| CPU | Xtensa LX7 dual-core, up to 240 MHz |
| Flash | 4MB |
| PSRAM | 2MB |
| WiFi | 802.11b/g/n (2.4 GHz) |
| Bluetooth | Bluetooth 5.0 (BLE) |
| Operating Voltage | 3.3V DC |
| USB Interface | USB Type-C |

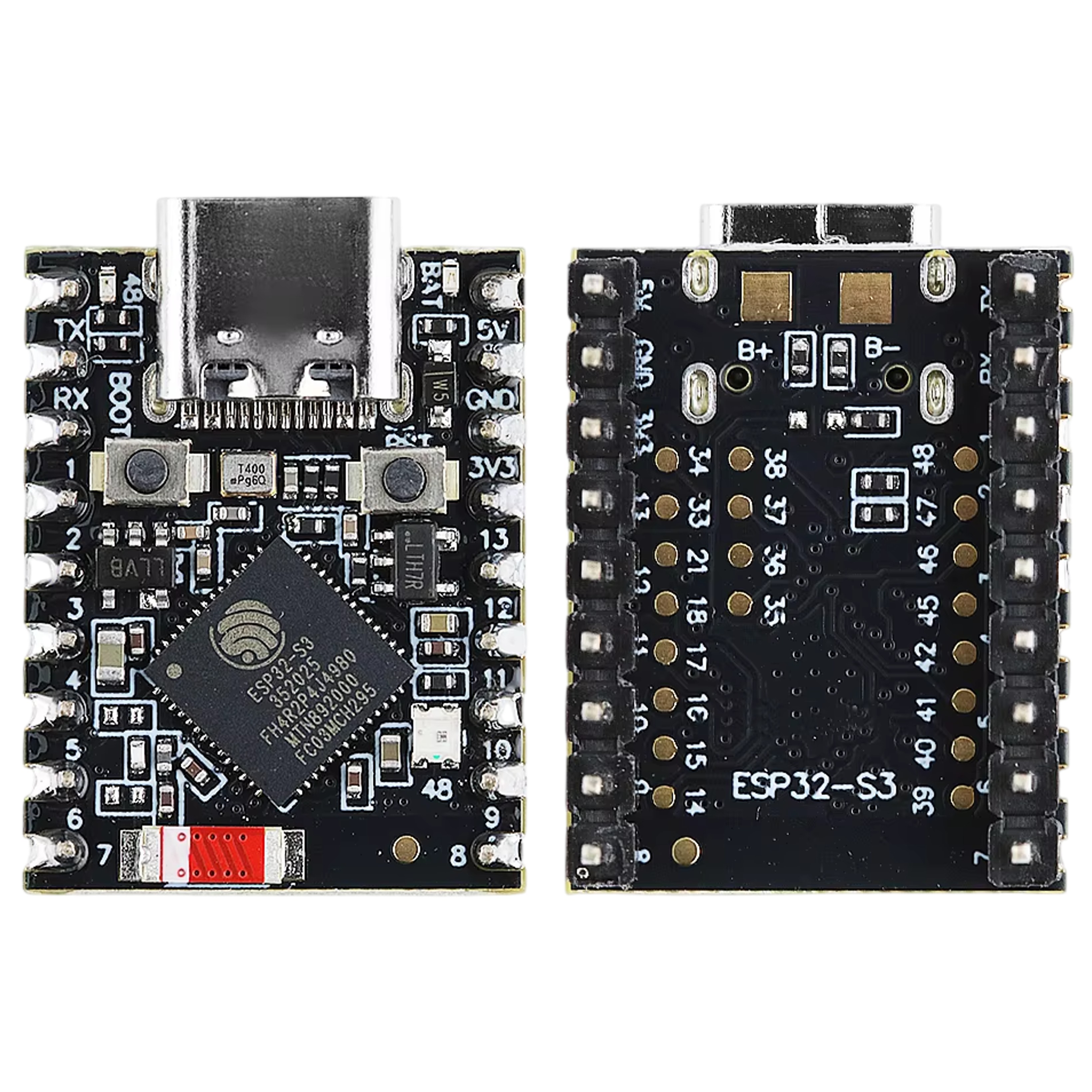

| Dimensions | 23.2mm × 18.2mm (approx.) |
| Package Quantity | 1 piece |
| Compatibility | Arduino IDE, MicroPython, ESP-IDF |
| Applications | IoT, wearables, wireless sensing, robotics, compact embedded systems |
COMPATIBLE HARDWARE
- Breadboards — Direct plug-in via presoldered header pins
- I2C sensors and modules (OLED displays, BME280, MPU6050, etc.) — Via I2C interface at 3.3V logic
- SPI devices (TFT displays, SD card modules, etc.) — Via SPI interface at 3.3V logic
- UART modules (GPS, Bluetooth serial, etc.) — Via UART interface
- Servo motors and PWM devices — Via GPIO PWM pins
- Any 3.3V compatible peripheral — Via GPIO, I2C, SPI, or UART
