DIYables Screw Terminal Block Shield Expansion Board for Arduino Nano
Click to zoom
Quick Overview

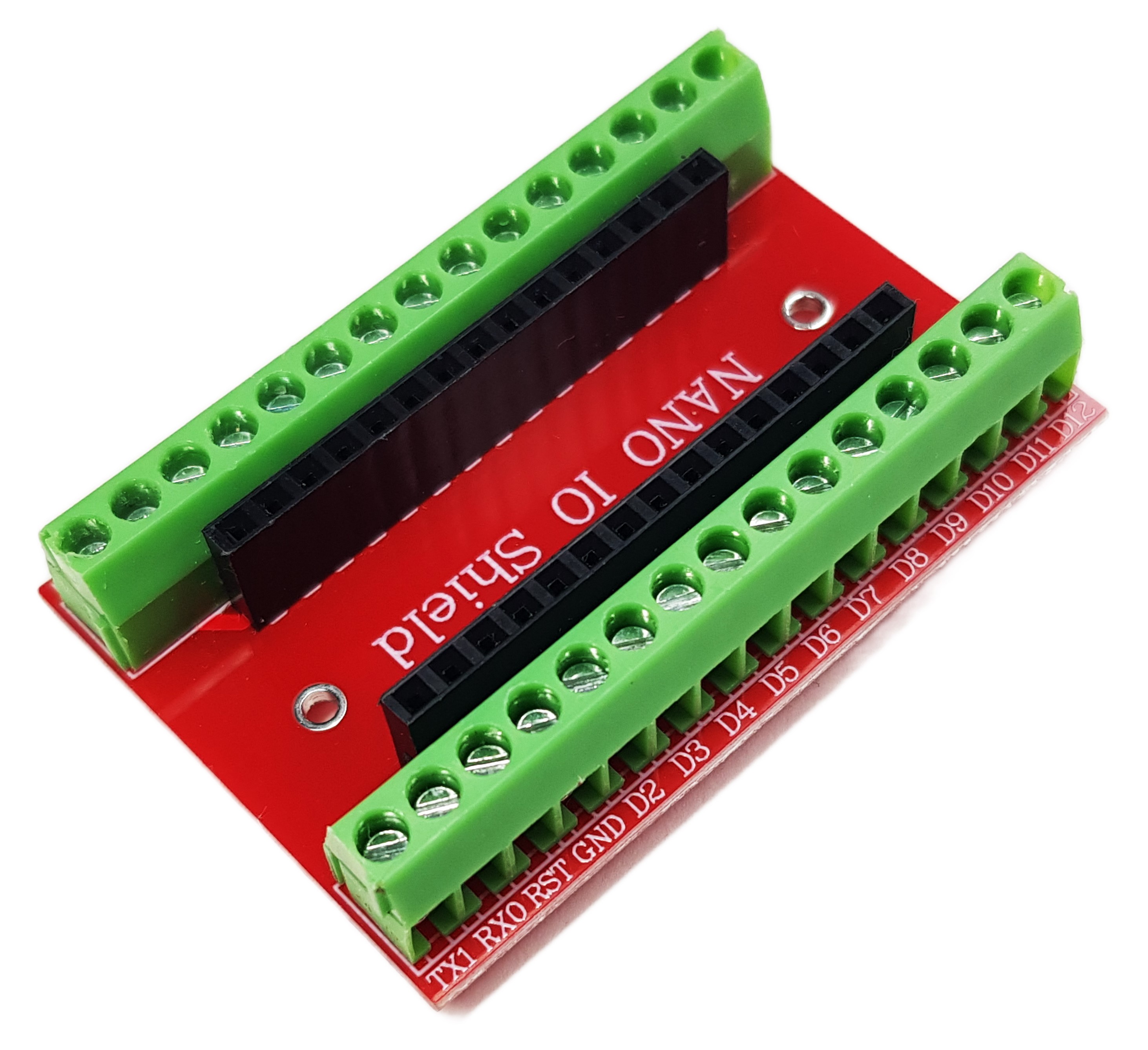

The DIYables Screw Terminal Block Shield is a stackable expansion board that breaks out all Arduino Nano pins to clearly labeled screw terminals with 3.5mm pitch. Simply plug your Arduino Nano board directly onto this shield, and all pins become accessible via secure, solderless screw terminals. Compatible with all Arduino Nano family boards including Nano, Nano R4, Nano 33 IoT, Nano RP2040 Connect, Nano 33 BLE Sense, Nano 33 BLE, Nano Every, and Nano ESP32.
Stack your Nano onto the shield and connect wires directly to the screw terminals—no soldering, breadboards, or fragile jumper wires needed. The industrial-grade screw terminals accept both solid and stranded wires for professional, maintainable connections in robotics, home automation, industrial control, and IoT projects.
Key Features
- Stackable Expansion Shield : Single board design allows Arduino Nano to plug directly on top, with all pins broken out to screw terminals for easy access and professional wiring
- All Pins Broken Out : Every Arduino Nano pin accessible via clearly labeled screw terminals with 3.5mm pitch for secure, professional wire connections
- No Soldering Required : Industrial-grade screw terminals accept wires directly with simple screwdriver tightening, eliminating soldering and enabling quick modifications
- Secure Wire Connections : Robust screw-down connections provide vibration-resistant, reliable contacts that won't accidentally disconnect like jumper wires or breadboard connections
- Universal Nano Family Compatibility : Compatible with all Arduino Nano family boards including Nano, Nano R4, Nano 33 IoT, Nano RP2040 Connect, Nano 33 BLE Sense, Nano 33 BLE, Nano Every, and Nano ESP32
- Clearly Labeled Pins : Pin names printed on the shield for quick identification, easy wiring, and error-free connections
- Accepts Multiple Wire Types : Screw terminals accommodate both solid core and stranded wires in various gauges for flexible connection options
- Simple Installation : Stack your Arduino Nano board onto the shield, tighten wires into terminals, and start working—setup takes minutes
- Perfect for Permanent Installations : Ideal for long-term deployments, industrial environments, and projects where reliability and maintenance are critical
- Organized Cable Management : Screw terminal layout allows clean wire routing and organization in your enclosure or project layout
- Professional Appearance : Clean, organized wiring solution delivers industrial-quality look for finished projects and commercial applications
- Versatile Applications : Excellent for robotics, home automation, IoT devices, sensor networks, industrial controllers, permanent installations, and educational projects
SPECIFICATION
| Specification | Value |
|---|---|
| Shield Type | Stackable Screw Terminal Expansion Shield |
| Board Design | Single shield (Arduino Nano plugs on top) |
| Terminal Type | Screw terminals (all pins) |
| Terminal Pitch | 3.5mm |
| Wire Compatibility | Solid core and stranded wires |
| Compatible Boards | Arduino Nano, Nano R4, Nano 33 IoT, Nano RP2040 Connect, Nano 33 BLE Sense, Nano 33 BLE, Nano Every, Nano ESP32 |
| Form Factor | Stackable expansion shield for Nano family |
COMPATIBLE HARDWARE
| Board | Compatible | Notes |
|---|---|---|
| Arduino Nano | ✅ | Fully supported |
| Arduino Nano R4 | ✅ | Fully supported |
| Arduino Nano 33 IoT | ✅ | Fully supported |
| Arduino Nano RP2040 Connect | ✅ | Fully supported |
| Arduino Nano 33 BLE Sense | ✅ | Fully supported |
| Arduino Nano 33 BLE | ✅ | Fully supported |
| Arduino Nano Every | ✅ | Fully supported |
| Arduino Nano ESP32 | ✅ | Fully supported |
| DIYables Compact V3.0 Board | ✅ | Fully supported |
