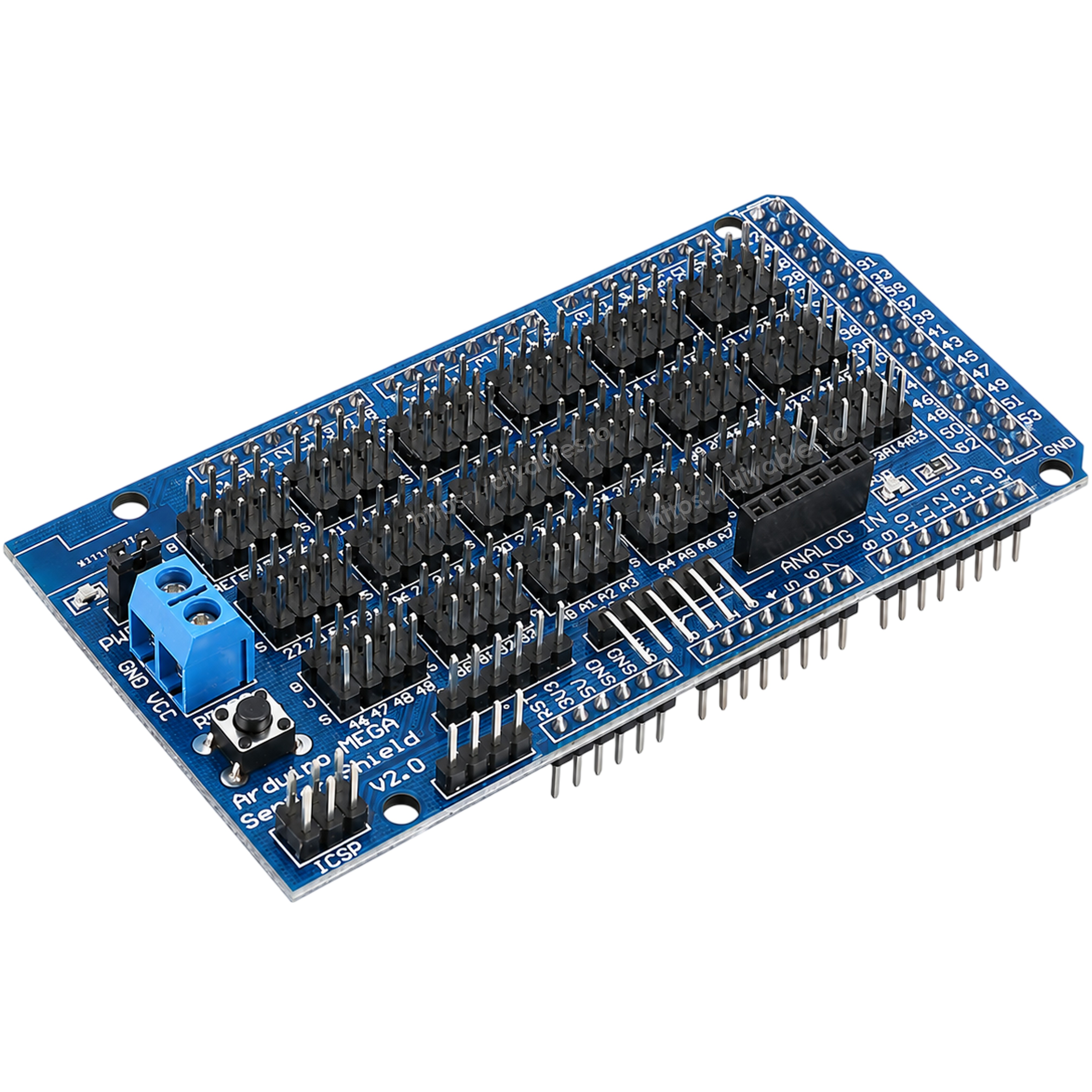

DIYables MEGA2560 Sensor Shield V2.0 Expansion Board for Arduino Mega 2560, Servo Motor Shield with I2C Bluetooth SD Card Interface for Robotics and DIY Projects
Click to zoom
Quick Overview

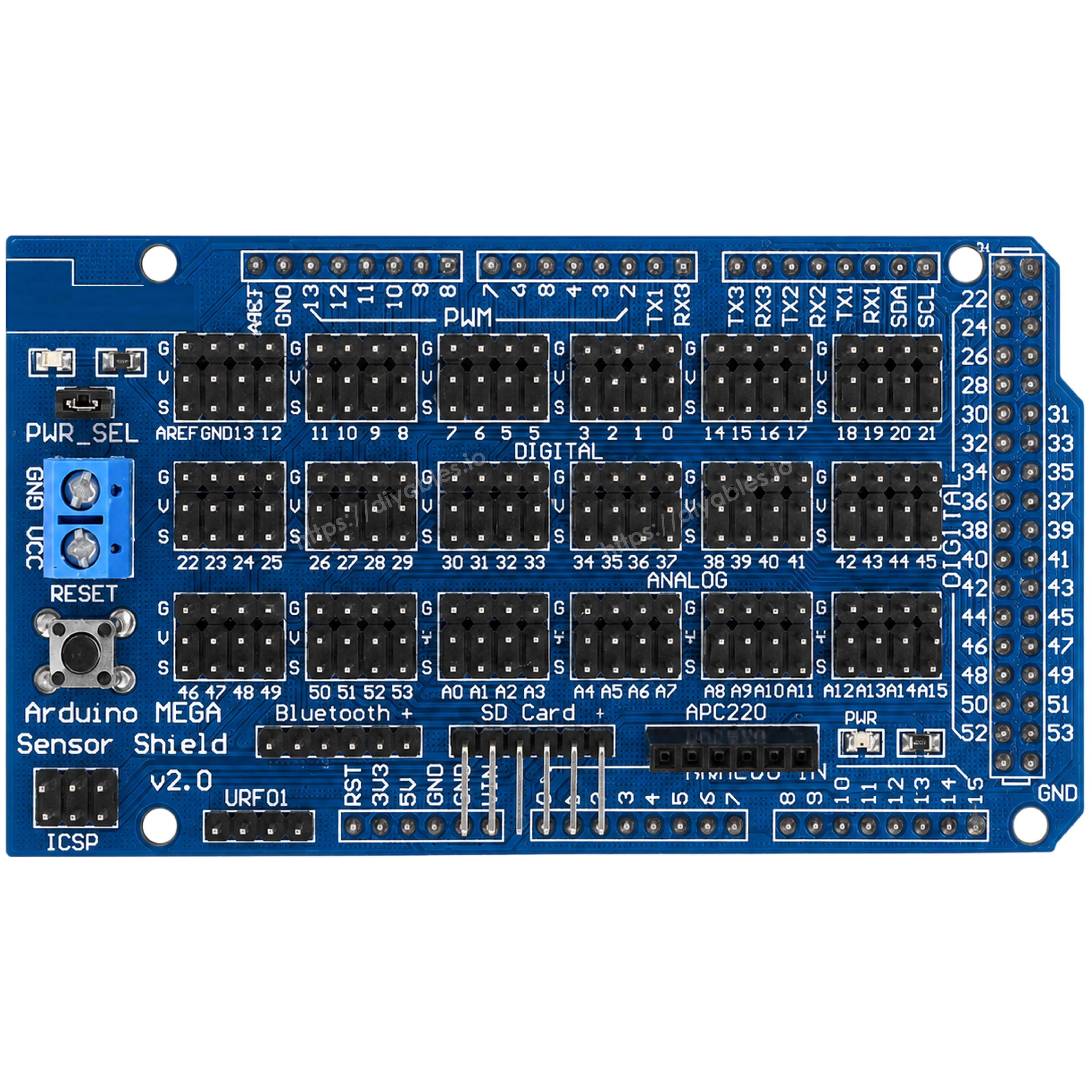

The DIYables MEGA2560 Sensor Shield V2.0 is an expansion board that plugs directly onto the Arduino Mega 2560, converting all digital and analog pins into standardized 3-pin VCC / GND / Signal headers. This makes connecting sensors, servos, relays, and modules straightforward without complex wiring or breadboards.
The shield provides multiple onboard interfaces including I2C, Bluetooth, SD card, APC220 RF, and ultrasonic sensor ports, enabling versatile project integration from a single board. The PCB uses immersion gold plating for reliable, corrosion-resistant connections and stable signal transmission over the long term.
Ideal for robotics, automation, IoT learning, and DIY electronics projects where simplified wiring and expandable I/O are essential, especially for beginners working with the Arduino Mega 2560 ecosystem.
Key Features
- MEGA2560 Sensor Shield V2.0 — Designed for Arduino Mega 2560, expands all digital and analog pins into 3-pin VCC / GND / Signal interfaces
- Easy Sensor and Servo Connection — Standard 3-pin layout enables quick plug-in connection of sensors, servos, relays, and modules
- Multiple Interface Support — Includes I2C, Bluetooth, SD card, APC220 RF, and ultrasonic sensor interfaces for versatile project integration

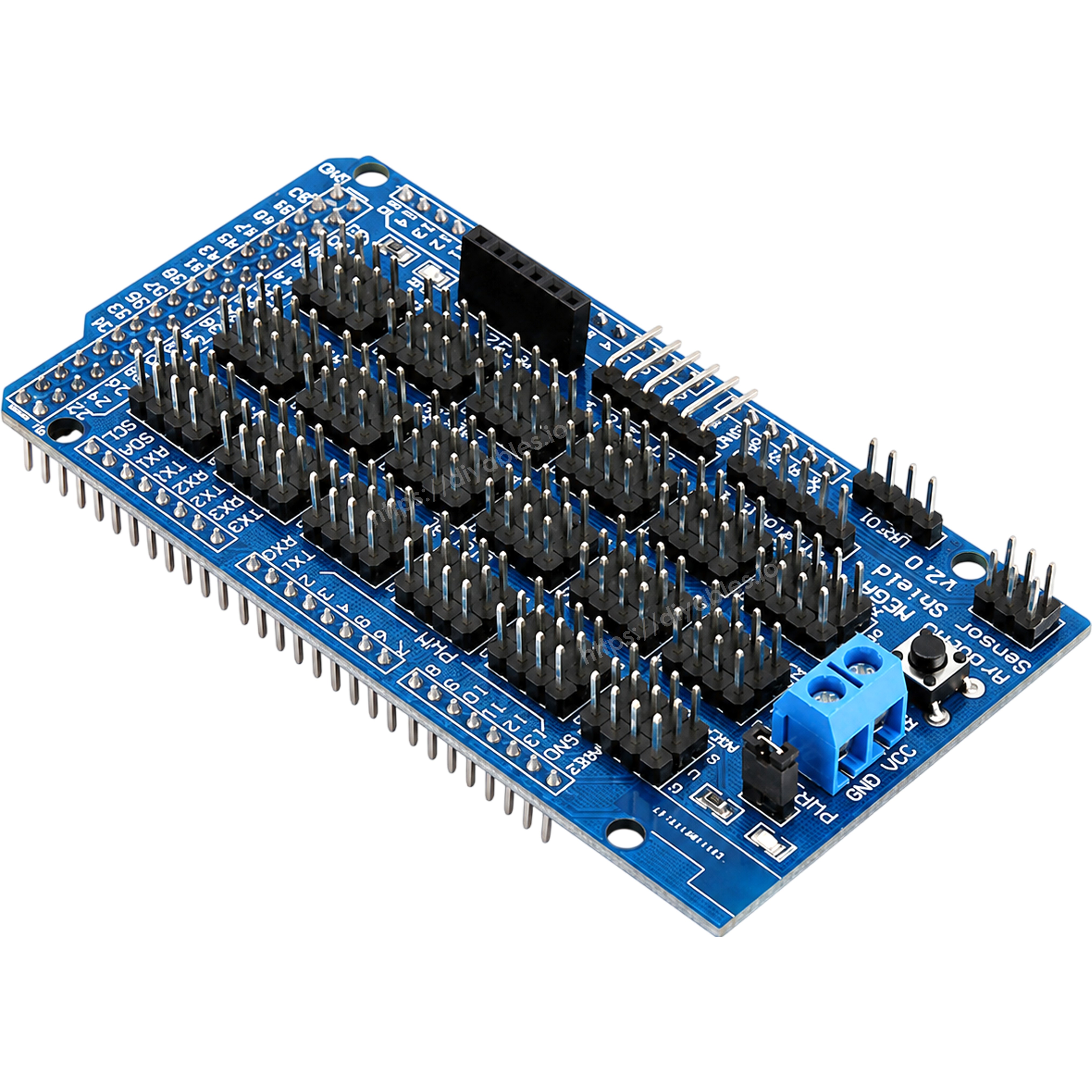

- Immersion Gold PCB — High-quality PCB with immersion gold finish for reliable connections, stable signal transmission, and long-term durability
- Beginner Friendly — Eliminates complex wiring, making it ideal for beginners learning robotics, automation, and electronics
- Wide Application Support — Suitable for robotics, automation, IoT, and DIY electronics projects using the Arduino Mega 2560
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | Sensor Expansion Shield |
| Version | V2.0 |
| Compatible Board | Arduino Mega 2560 |
| Pin Layout | 3-pin headers (VCC, GND, Signal) for all digital and analog pins |
| Interfaces | I2C, Bluetooth, SD card, APC220 RF, Ultrasonic sensor |
| PCB Finish | Immersion gold |
| Operating Voltage | 5V DC (via Arduino Mega 2560) |
| Package Quantity | 1 piece |
| Compatibility | Arduino Mega 2560 |
| Applications | Robotics, automation, IoT, electronics learning, DIY projects |
COMPATIBLE HARDWARE
- Arduino Mega 2560 — Direct plug-in shield (stacked connection)
- Servo motors — Via 3-pin VCC/GND/Signal headers
- Digital and analog sensors — Via 3-pin VCC/GND/Signal headers
- I2C devices (OLED, sensors, modules) — Via onboard I2C interface
- Bluetooth modules (HC-05, HC-06, etc.) — Via onboard Bluetooth interface
- SD card modules — Via onboard SD card interface
- APC220 RF modules — Via dedicated APC220 interface
- Ultrasonic sensors (HC-SR04, etc.) — Via dedicated ultrasonic interface
- Relays and actuators — Via standard 3-pin signal headers
