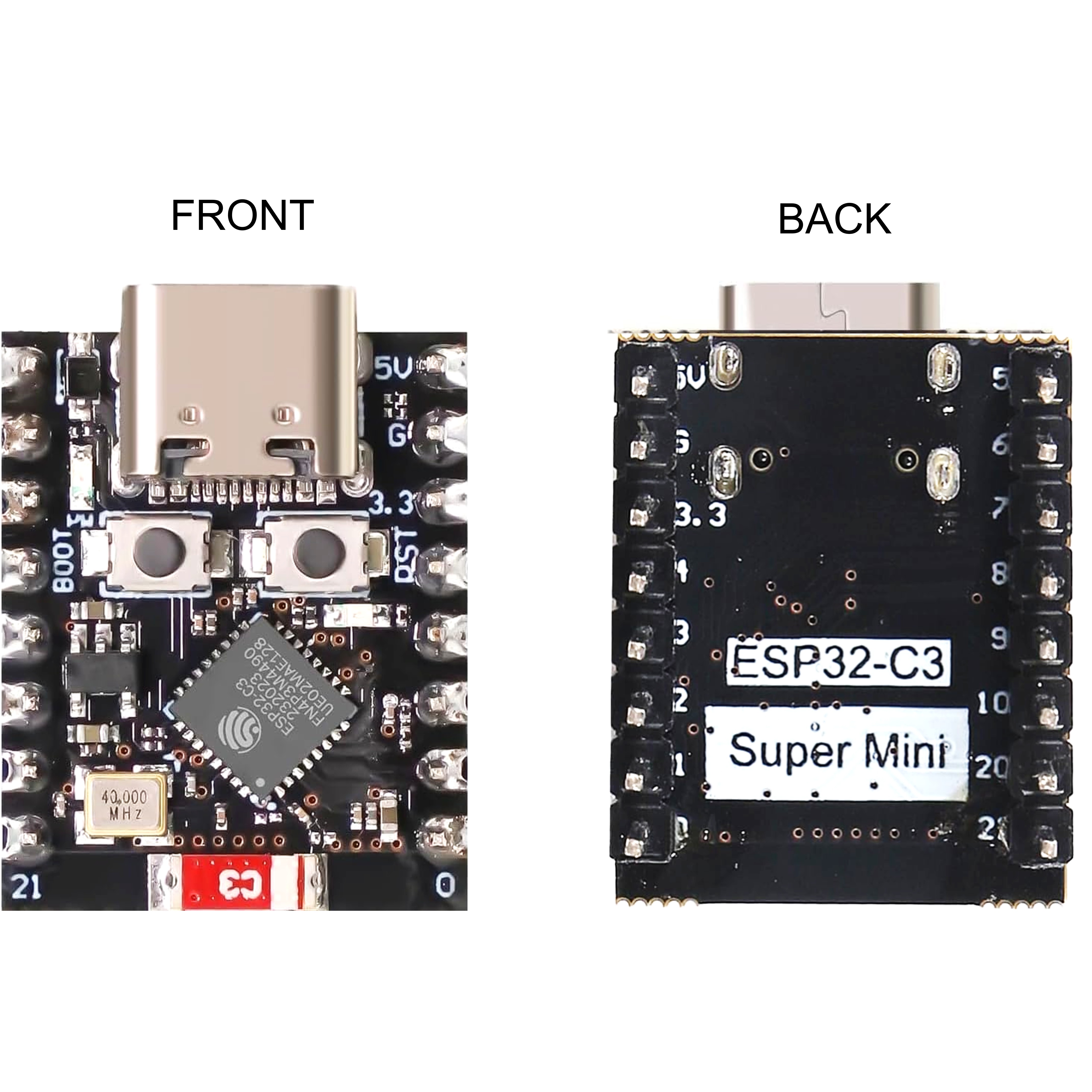

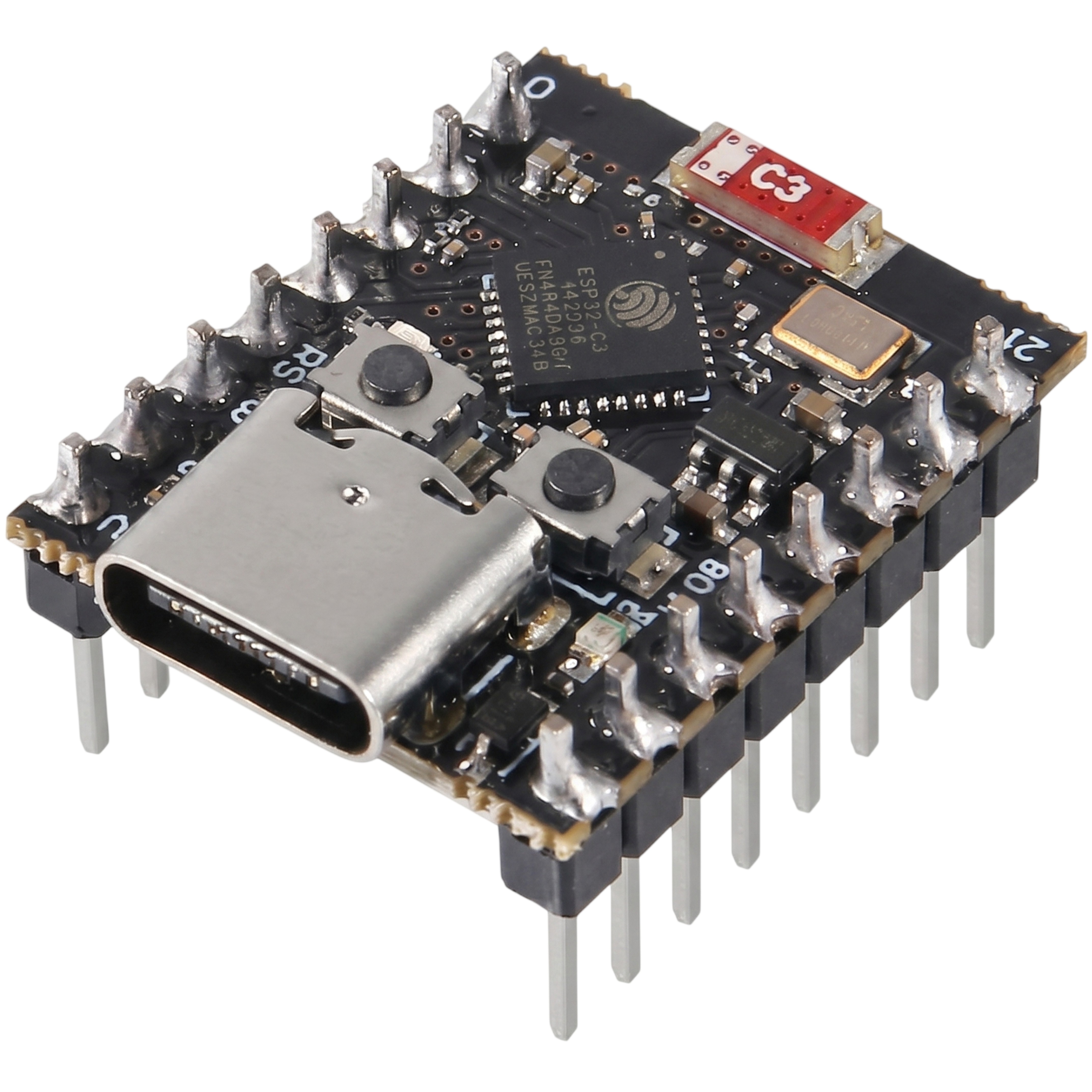

DIYables DIYables ESP32-C3 Supermini Development Board WiFi Bluetooth LE RISC-V MCU, 11 GPIO 4 ADC Low Power IoT Module for Wearables and DIY, Presoldered
Click to zoom
Quick Overview
The DIYables ESP32-C3 SuperMini Development Board is an ultra-compact WiFi and Bluetooth LE IoT module built on the ESP32-C3 chip featuring a single-core 32-bit RISC-V processor running up to 160 MHz. Designed for energy-efficient applications, this board is optimized for wearables, portable devices, and battery-powered smart systems. It comes fully presoldered with header pins already attached, making it immediately compatible with breadboards and jumper wires — no soldering required out of the box.
The board provides 11 digital GPIO pins (all PWM capable) and 4 analog ADC inputs for flexible sensor and peripheral expansion. Communication interfaces include UART, I2C, and SPI, and the modern USB-C port handles both power and programming. The super mini form factor with castellated edges allows use on breadboards or surface mounting in production designs. Integrated 2.4 GHz WiFi (802.11 b/g/n) and Bluetooth 5.0 LE enable reliable wireless connectivity for IoT applications.
This 2-pack set is ideal for prototyping multiple projects, educational use, and DIY electronics development. Fully compatible with Arduino IDE (with ESP32 board package), ESP-IDF, and MicroPython. Perfect for wearable IoT devices, BLE beacons, smart sensors, WiFi data loggers, home automation, and any application requiring a compact, low-power wireless module.
Key Features

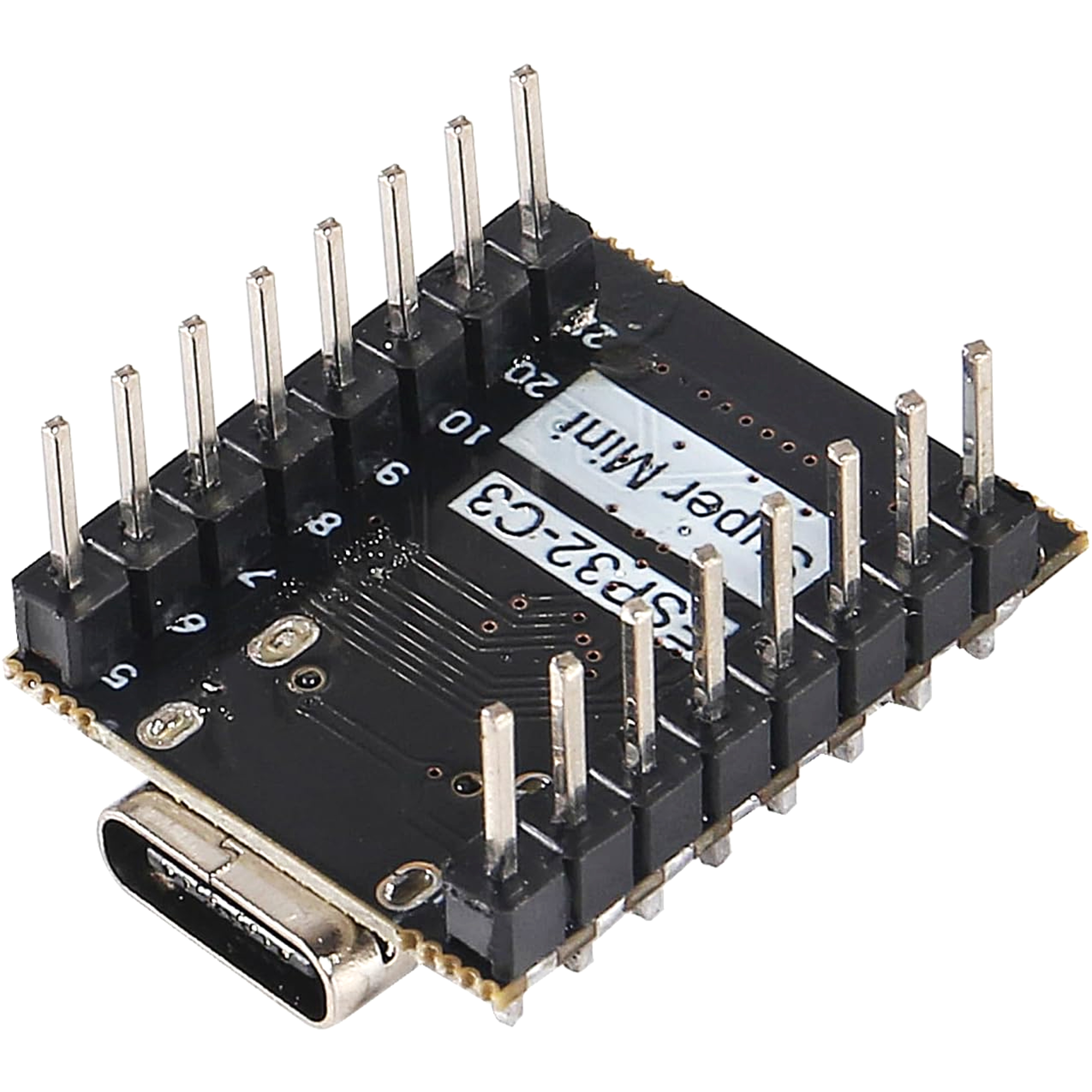

- Presoldered Ready to Use — Header pins are pre-soldered for immediate use with breadboards and jumper wires, saving setup time and eliminating soldering work
- ESP32-C3 RISC-V Processor — Single-core 32-bit RISC-V processor running up to 160 MHz with integrated WiFi and Bluetooth LE for reliable IoT performance
- Low Power IoT Design — Optimized for energy-efficient applications including wearables, portable devices, and battery-powered smart systems

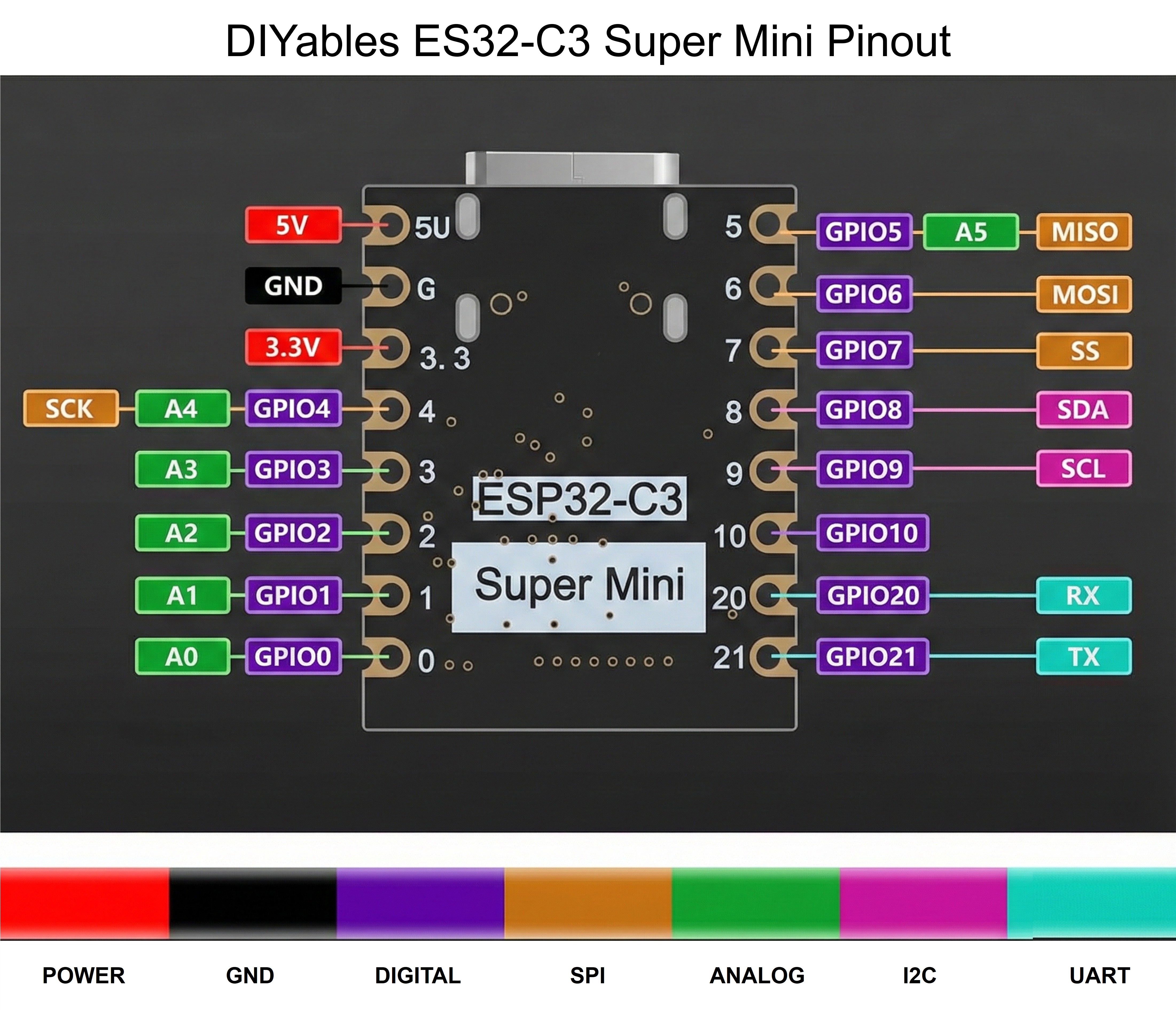

- 11 GPIO with 4 ADC Inputs — Provides 11 digital GPIO pins (all PWM capable) and 4 analog ADC channels for flexible sensor and peripheral expansion
- WiFi and Bluetooth 5.0 LE — Integrated 2.4 GHz WiFi 802.11 b/g/n and Bluetooth 5.0 LE for wireless connectivity and BLE applications
- USB-C Programming Interface — Modern USB-C port for power supply and code uploading with convenient plug orientation

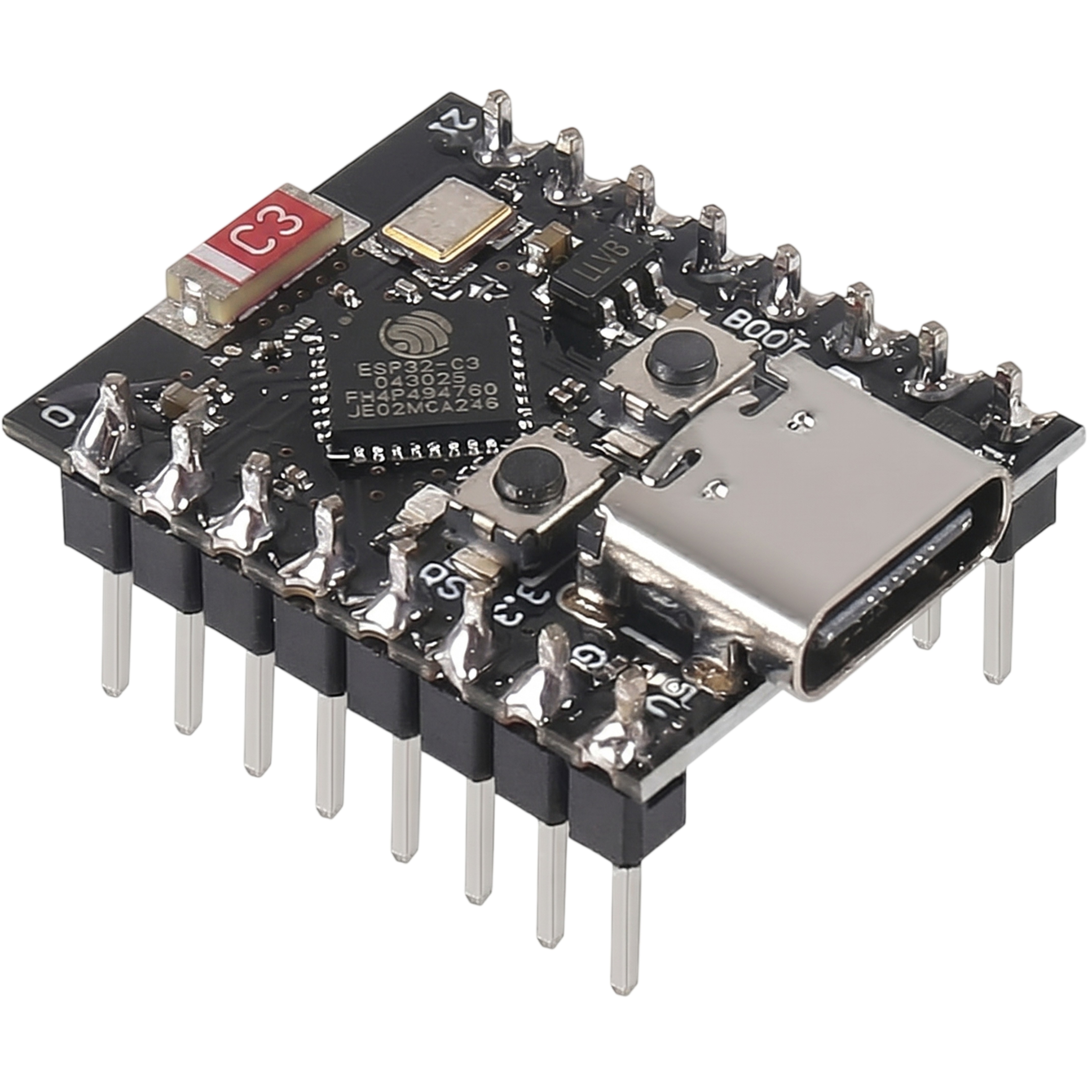

- Ultra-Compact Form Factor — Super mini design with castellated edges for breadboard prototyping or surface mount in production hardware
- Multiple Serial Interfaces — Supports UART, I2C, and SPI communication protocols for connecting sensors, displays, and modules
- 2-Pack Development Set — Includes two fully assembled presoldered boards ideal for prototyping, education, and DIY electronics projects
- Arduino IDE Compatible — Works with Arduino IDE after installing ESP32 board package; also supports ESP-IDF and MicroPython
- ...NOTE
- This board operates at 3.3V logic levels. Do not connect 5V signals directly to GPIO pins. Install the ESP32 board package in Arduino IDE before use.
- ...NOTE
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | WiFi Bluetooth LE Development Board |
| Microcontroller | ESP32-C3 |
| Processor Architecture | 32-bit RISC-V single-core |
| Processor Speed | Up to 160 MHz |
| WiFi Standard | 802.11 b/g/n (2.4 GHz) |
| Bluetooth | Bluetooth 5.0 LE (Low Energy) |
| Flash Memory | 4MB |
| SRAM | 400KB |
| Operating Voltage | 3.3V (internal) |
| Input Voltage | 5V DC (via USB-C) |
| Logic Level | 3.3V |
| Digital GPIO Pins | 11 |
| PWM Capable Pins | 11 (all GPIO pins) |
| Analog Input (ADC) | 4 channels, 12-bit resolution |
| Interface | UART, I2C, SPI, GPIO |
| USB Interface | USB-C (programming and power) |

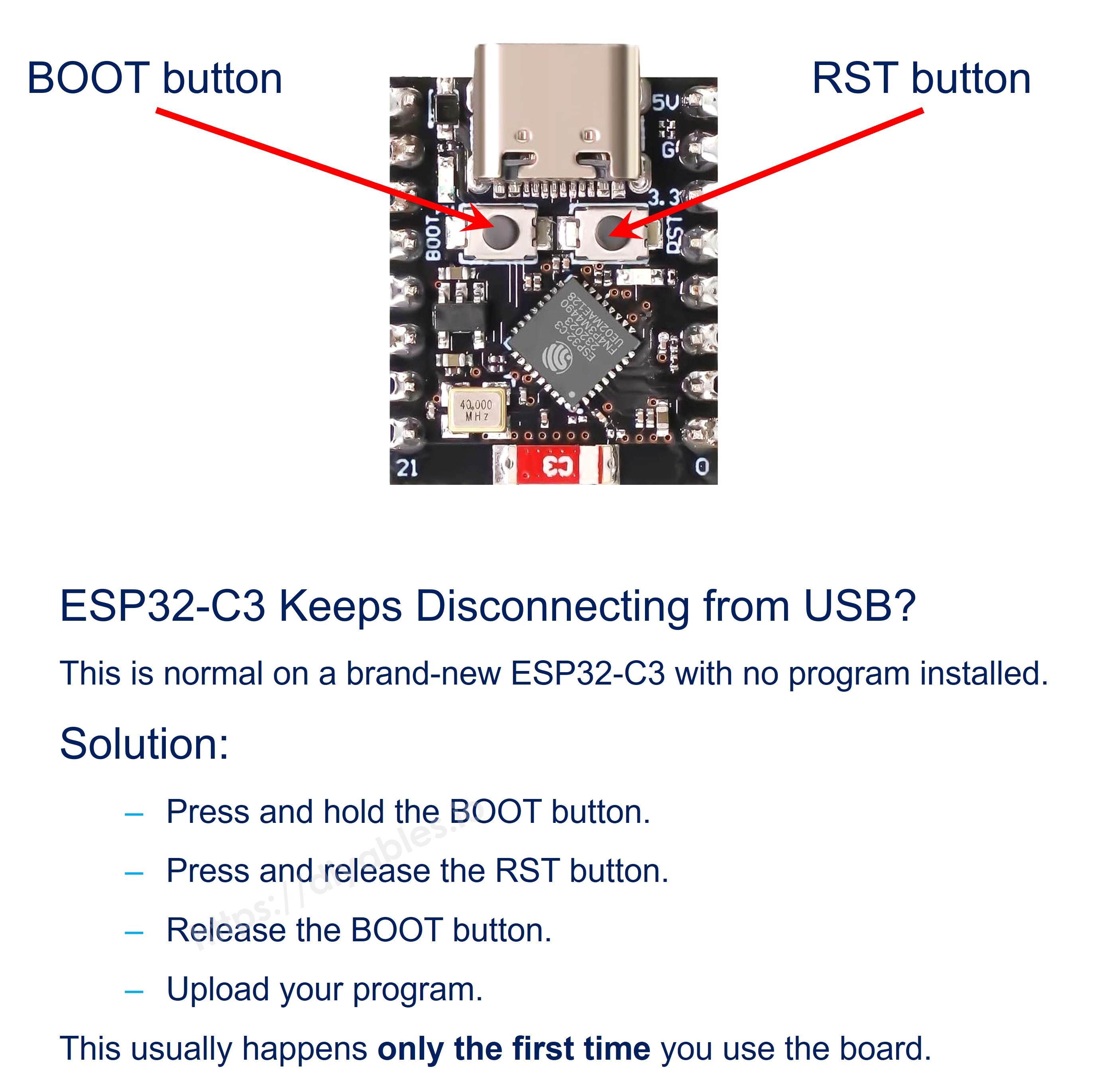

| Buttons | Reset button, Boot/Flash button |

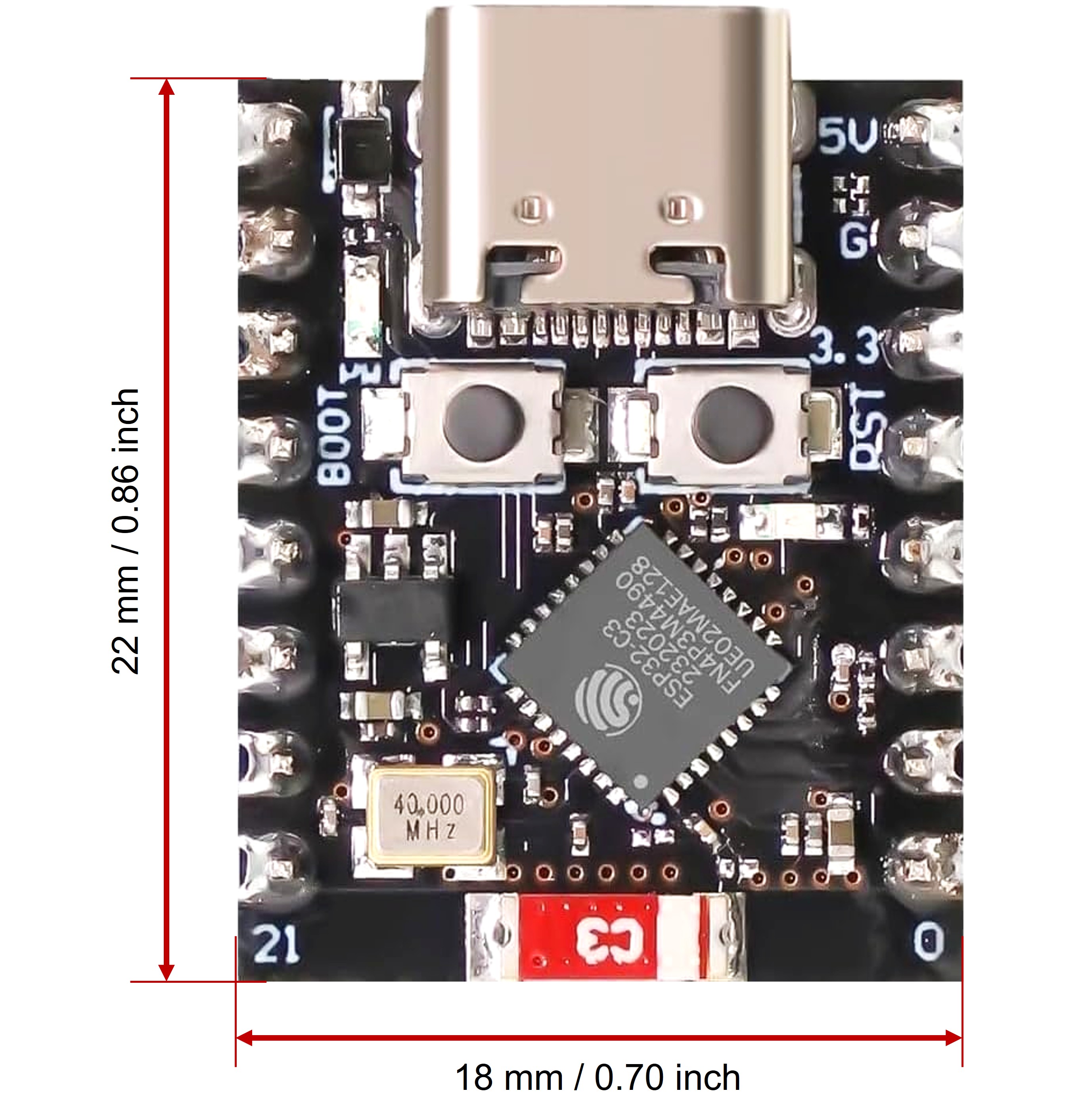

| Form Factor | Super mini with castellated edges |
| Antenna | Integrated PCB antenna |
| Header | Pre-soldered (ready to use) |
| IDE Support | Arduino IDE, ESP-IDF, MicroPython |
| Package Quantity | 2 pieces |
| Compatibility | Arduino IDE (ESP32 board package), ESP-IDF, MicroPython |
| Applications | Wearables, BLE beacons, smart sensors, WiFi data logging, home automation, battery-powered IoT, compact wireless projects |
PACKAGE
A package includes:
| Qty | Items |
|---|---|
| 2 | ESP32-C3 SuperMini development boards (presoldered headers) |
Tutorials
- ESP32-C3 Super Mini - Getting Started tutorial
- ESP32-C3 Super Mini - WiFi tutorial
- ESP32-C3 Super Mini - Bluetooth tutorial
- ESP32-C3 Super Mini - Web Server tutorial
- ESP32-C3 Super Mini - MQTT tutorial
- ESP32-C3 Super Mini - LED tutorial
- ESP32-C3 Super Mini - Button tutorial
- ESP32-C3 Super Mini - Temperature Humidity Sensor tutorial
COMPATIBLE HARDWARE
- Breadboards — Directly compatible via presoldered headers for rapid prototyping
- 3.3V sensors and modules — Direct connection to GPIO pins without level shifters
- 5V sensors and modules — Requires level shifters or voltage dividers for signal pins
- OLED displays (I2C/SPI) — Display sensor readings and status information
- DHT11/DHT22 sensors — Temperature and humidity monitoring for IoT systems
- BME280/BMP280 sensors — Environmental sensing via I2C or SPI
- Accelerometers and gyroscopes — Motion detection for wearable applications
- BLE peripherals — Heart rate monitors, fitness trackers, Bluetooth sensors
- LED strips (WS2812B/NeoPixel) — Addressable LED control via GPIO PWM
- Servo motors — PWM-based servo control for robotics and automation
- LiPo/Li-ion battery packs — Portable and wearable battery-powered projects
- MQTT brokers and cloud platforms — AWS IoT, Home Assistant, ThingSpeak, Blynk integration
- USB-C power banks — Convenient power source for portable deployments
