DIYables XH-W1209 Digital Thermostat Temperature Controller, 2pcs, -50~110°C, Relay Output, DC12V, Waterproof NTC Sensor, 10A Capacity
Click to zoom
Quick Overview

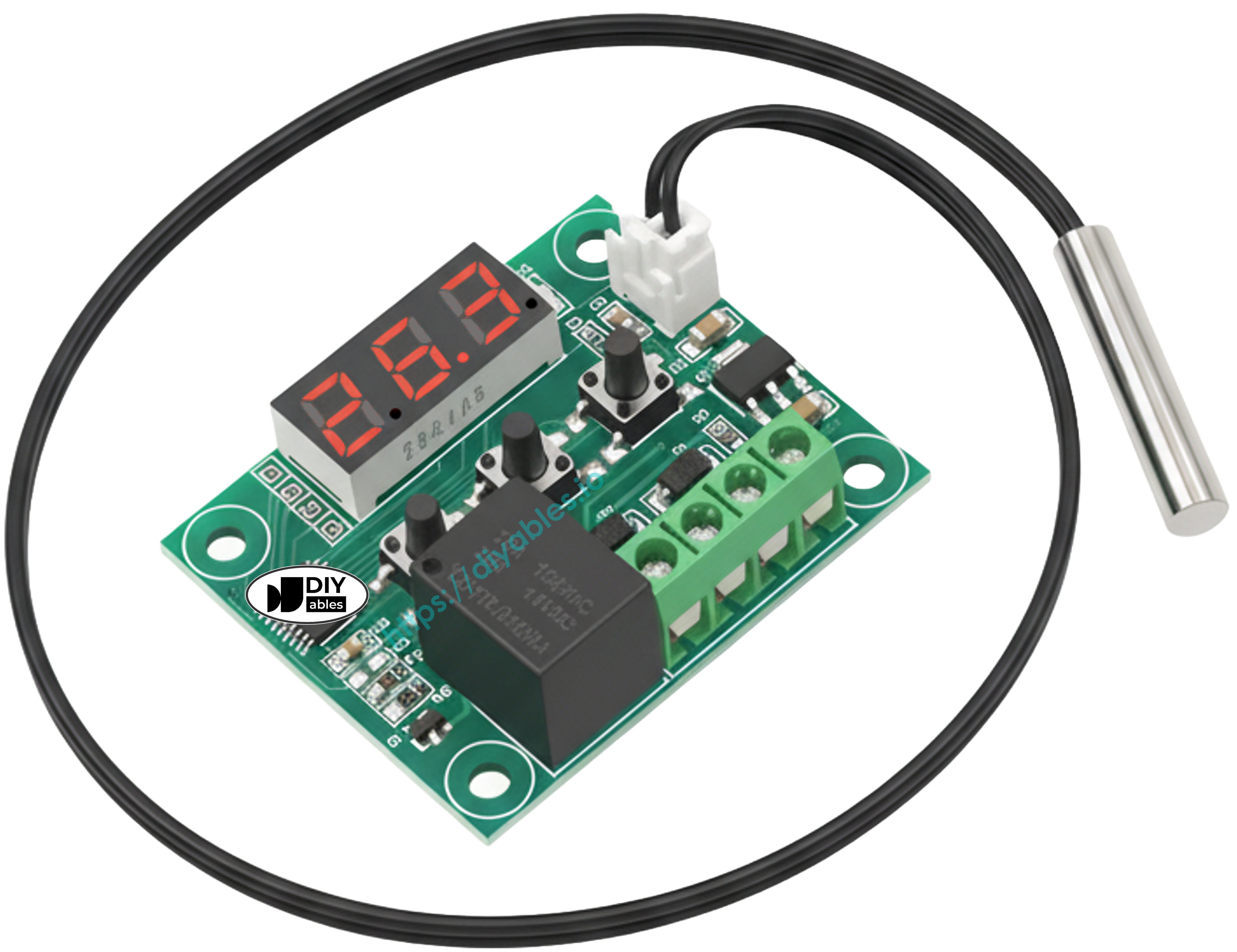

The DIYables XH-W1209 Digital Thermostat is a self-contained temperature control switch that reads a temperature with an NTC probe and drives a relay when that reading crosses a set point. It covers a wide -50°C to 110°C range with 0.1°C resolution, and a three digit red LED display shows the live temperature so the current state is readable at a glance without a serial monitor or a host microcontroller.

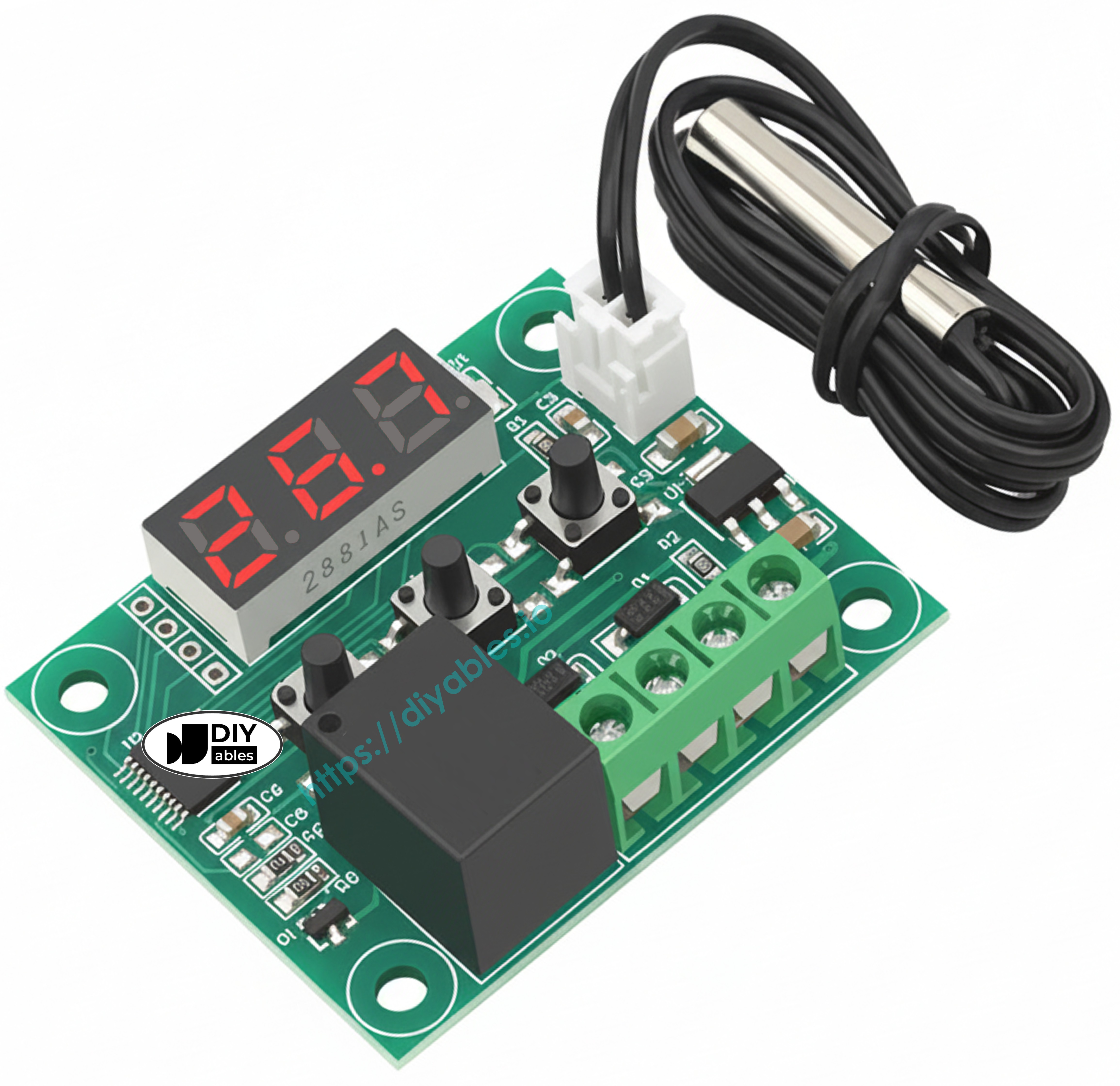

Three buttons on the board handle everything: Set enters programming mode, and the plus and minus buttons adjust the target temperature and the hysteresis. Because the onboard relay is rated for 10A, it can switch a heater, fan, pump, heat lamp, or cooler directly rather than through an extra driver stage. The module runs from a DC 12V supply, and screw terminals handle both the incoming supply and the switched load. A waterproof NTC 10K probe on a lead is included with each unit, so the sensor can sit in a tank, an incubator, or outdoors while the board stays dry.

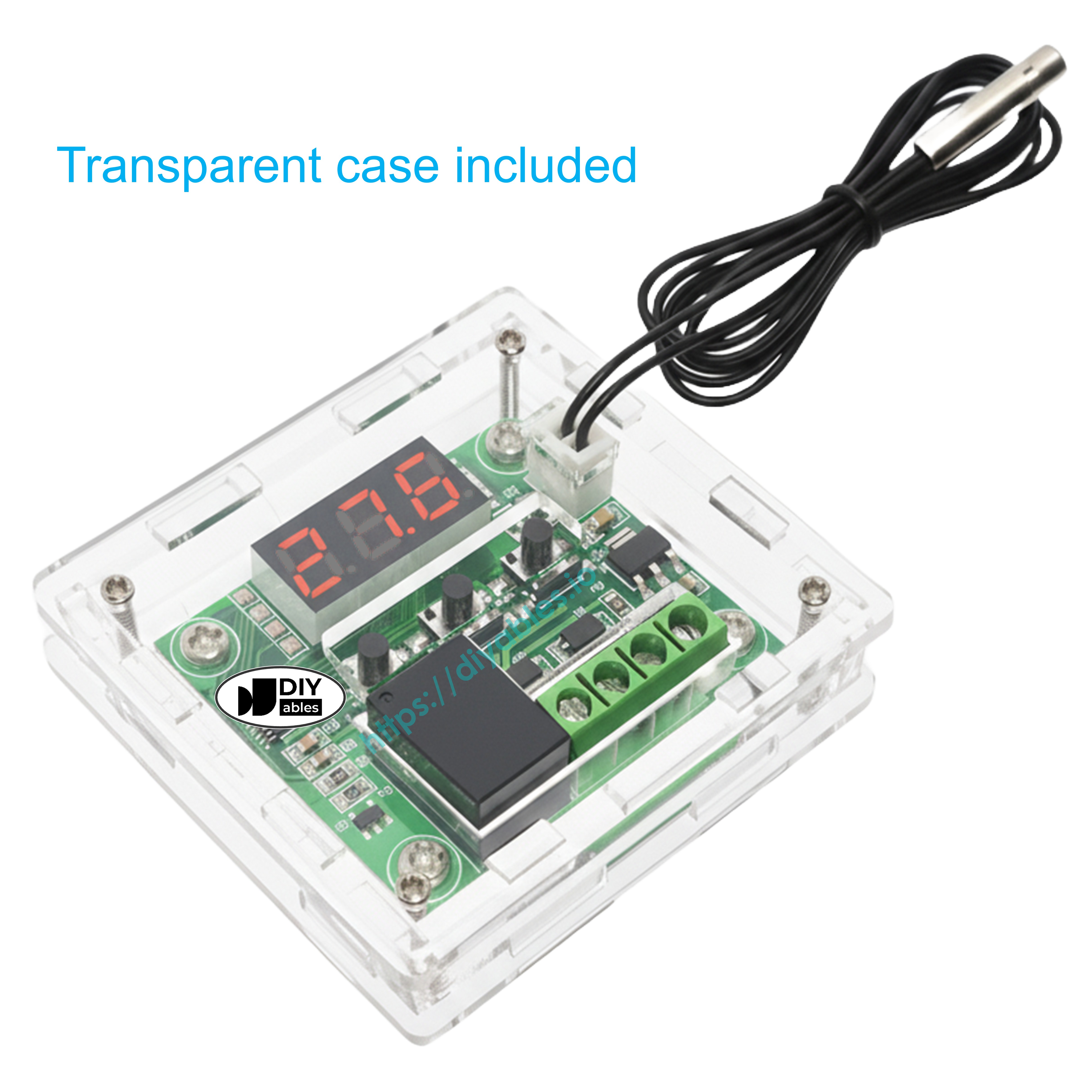

Each set also ships with a transparent acrylic enclosure and mounting hardware, which protects the PCB while leaving the display and buttons visible. Ideal for incubators, aquariums, fermentation and brewing, greenhouses, 3D printer enclosures, fridge and freezer conversions, and any project needing standalone thermostat behaviour with no code to write. This listing includes 2 complete sets.
Key Features
- Wide -50 to 110C Range — Covers deep freezing through boiling-adjacent temperatures with 0.1°C display resolution for precise set points
- Onboard 10A Relay Output — Switches heaters, fans, pumps, and heat lamps directly without an external relay board or driver
- Three Digit LED Display — Bright red readout shows the measured temperature continuously, readable across a room
- Waterproof NTC 10K Probe — Sealed sensor on a lead reads accurately in tanks, incubators, and humid or outdoor locations
- Adjustable Hysteresis — Set the switching deadband so the relay does not chatter around the target temperature
- Heating or Cooling Mode — Configure the relay to energise above or below the set point for either direction of control
- Transparent Case Included — Acrylic enclosure and screws protect the board while keeping display and buttons accessible
- Screw Terminal Wiring — Supply and switched load connect through screw terminals, no soldering required
- Standalone Operation — Works without a microcontroller, library, or programming of any kind

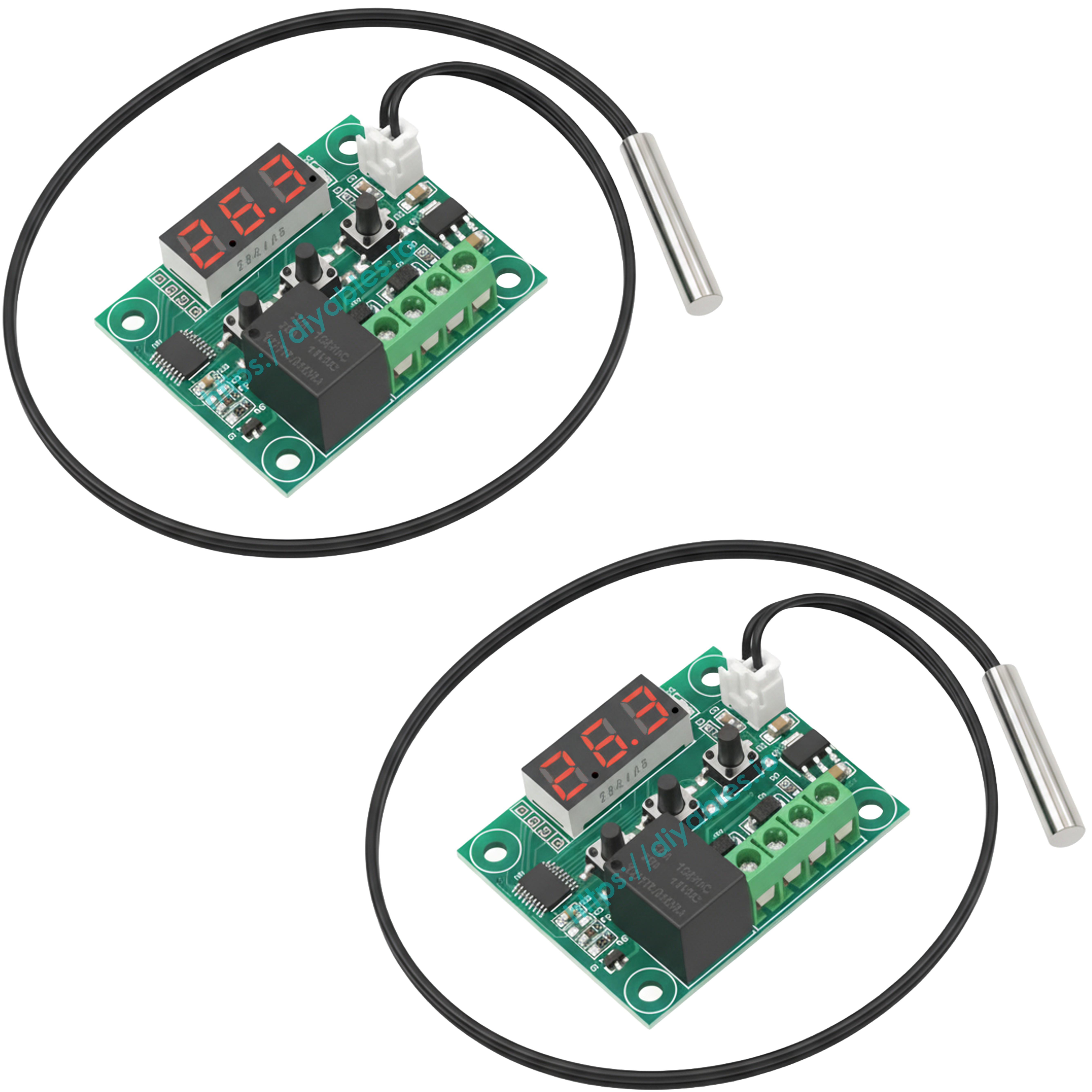

- 2 Complete Sets — Two boards, two probes, and two cases for parallel builds or a spare
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | Digital Thermostat Temperature Controller |
| Model | XH-W1209 |
| Temperature Range | -50°C to 110°C |
| Display Resolution | 0.1°C |
| Display | 3-digit red LED |
| Supply Voltage | DC 12V |
| Relay Rating | 10A |
| Sensor | Waterproof NTC 10K probe (included) |
| Controls | Set, Increase, Decrease buttons |
| Wiring | Screw terminals for supply and load |
| Enclosure | Transparent acrylic case included |
| Package Quantity | 2 sets (board + probe + case each) |
| Applications | Incubators, aquariums, brewing, greenhouses, fridge and freezer control, heating and cooling |
※ NOTE THAT:
This module is powered from DC 12V. Supplying a different voltage may damage the board.
The 10A relay rating is the contact rating. When switching mains-voltage loads, ensure the wiring, enclosure, and installation meet local electrical safety requirements, and keep the low-voltage control side isolated from the switched side.

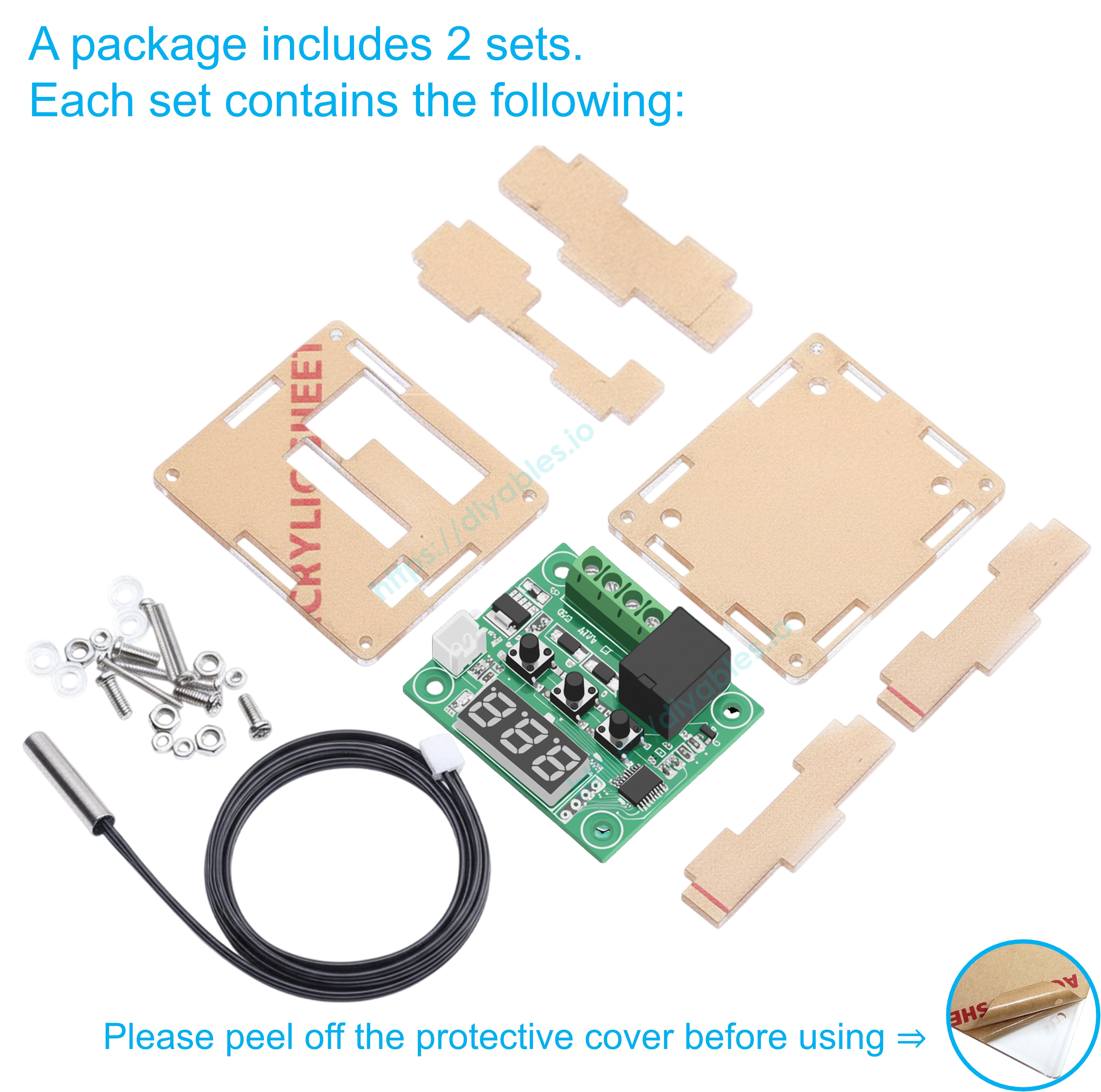

PACKAGE
A package includes:
| Qty | Items |
|---|---|
| 2 | XH-W1209 Digital Thermostat Control Boards |
| 2 | Waterproof NTC 10K Temperature Probes |
| 2 | Transparent Acrylic Protective Cases (with mounting screws) |
COMPATIBLE HARDWARE
- DC 12V power supplies — Powers the controller through the supply screw terminals
- Heating elements and heat lamps — Switched through the relay contacts
- Cooling fans and Peltier modules — Switched through the relay contacts in cooling mode
- Water pumps and circulation pumps — Relay controlled for aquarium and brewing setups
- Incubators and germination boxes — Standalone temperature regulation with the included probe
- Aquariums and terrariums — Waterproof probe suits submerged and humid placement
- Fridge and freezer conversions — Adjustable set point and hysteresis for fermentation or curing
- Any resistive or inductive load within the relay rating — Observe the 10A contact limit
