DIYables DIYables 8 Channel Bidirectional SPI I2C Logic Level Converter 5V 3.3V 1.8V Level Shifter Presoldered for Arduino ESP32 ESP8266 Raspberry Pi, 5 Pack
Click to zoom
Quick Overview

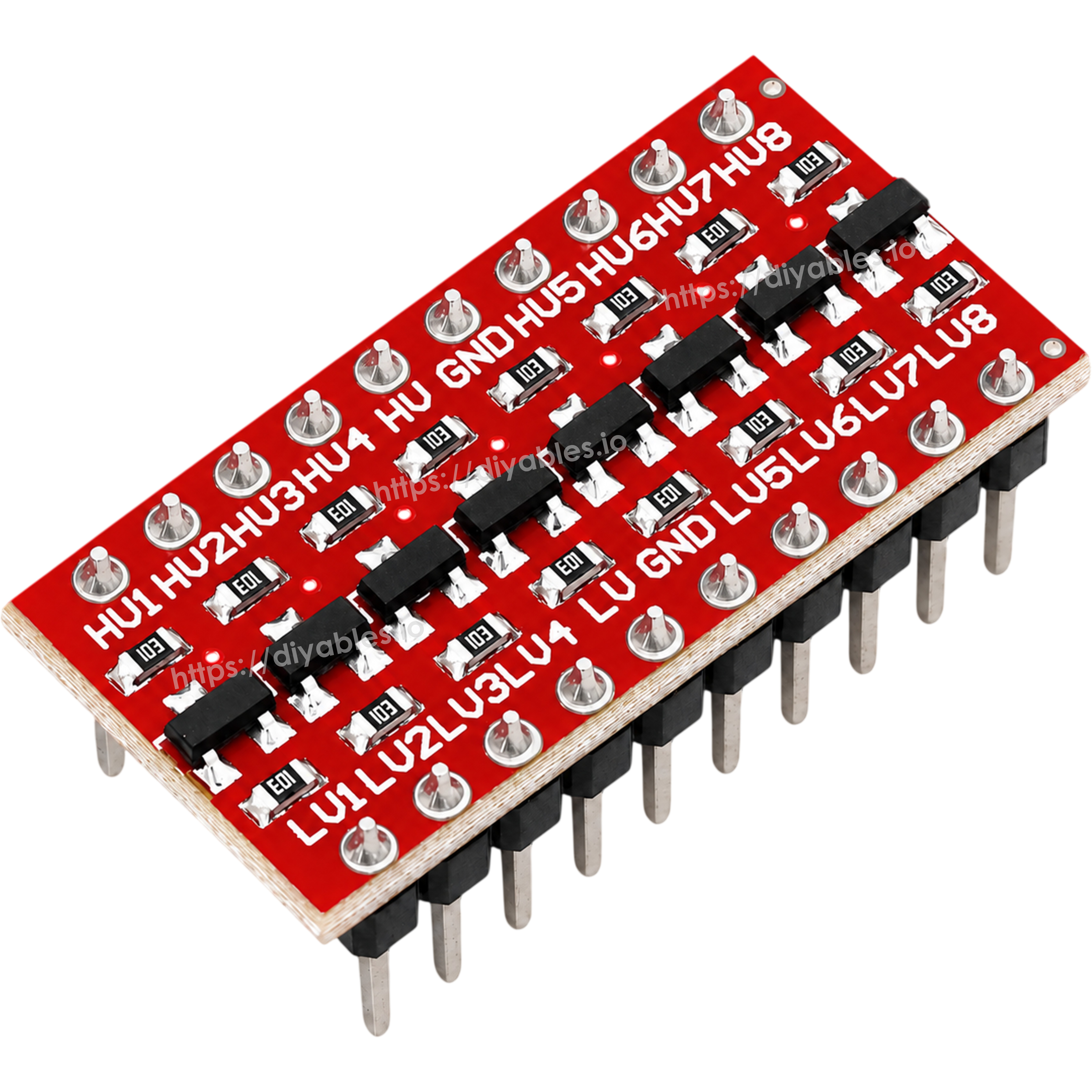

This DIYables 8-channel bidirectional logic level converter safely shifts signals between 5V, 3.3V, 2.8V, and 1.8V logic levels in both directions on the same channel, making it easy to connect mixed-voltage devices without damaging them. It's designed for SPI and I2C signal levels, with 4 bidirectional channels on each side for safe interfacing of mixed-voltage sensors, displays, and modules.
The module comes fully presoldered with headers, so it's ready to use immediately on a breadboard or PCB without any soldering. Wiring is simple: connect HV to your high voltage supply, LV to your low voltage supply, and GND to a common ground, with two inputs and two outputs provided on each side for straightforward mixed-voltage system integration.

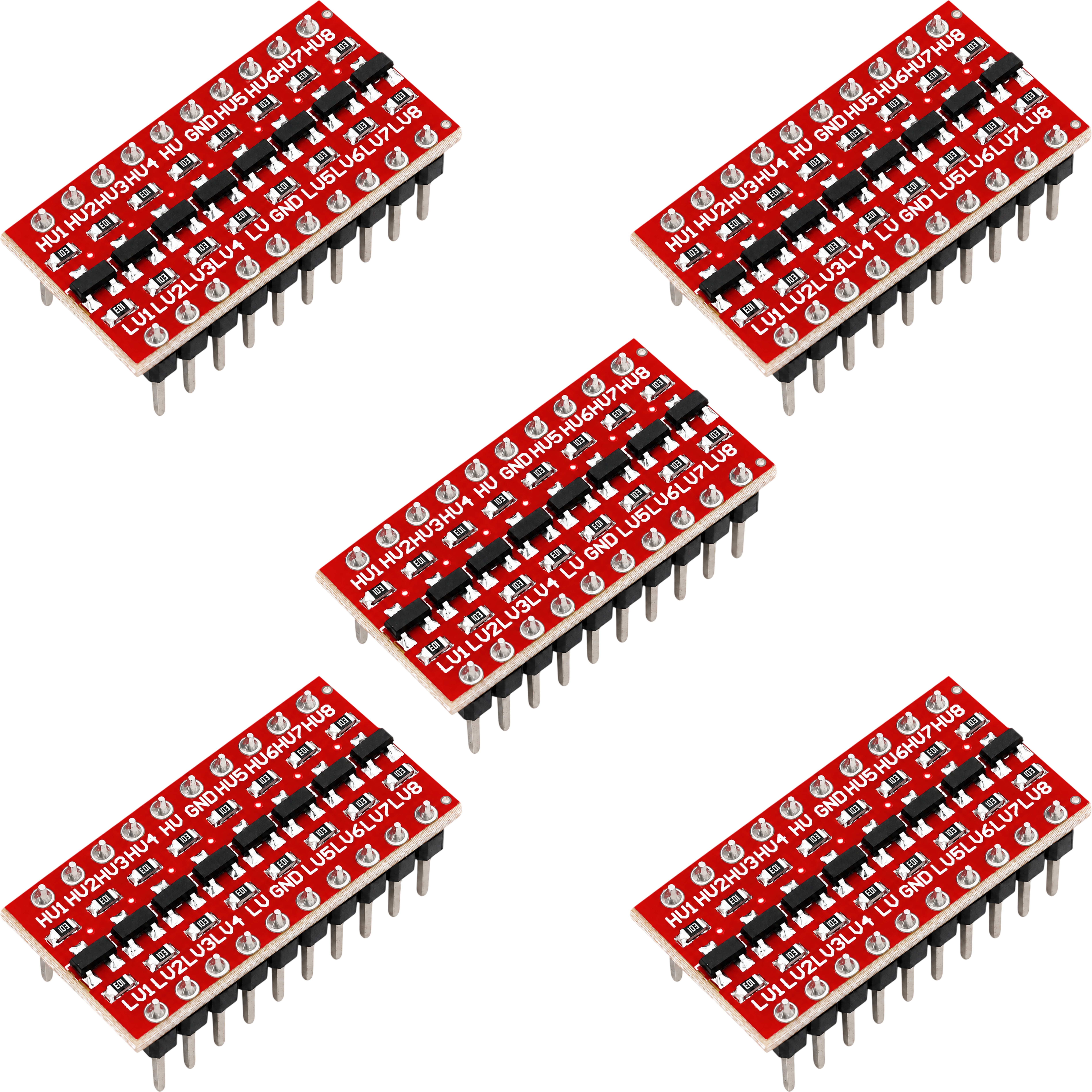

This listing includes 5 presoldered 8-channel level converter boards, each measuring 28 x 19mm, ideal for Arduino, ESP32, ESP8266, Raspberry Pi, and any mixed-voltage microcontroller project.
Key Features
- 8-Channel Bidirectional Conversion — Safely shifts signals between 5V, 3.3V, 2.8V, and 1.8V logic levels in both directions on the same channel
- SPI and I2C Level Shifting — Converts SPI and I2C signal levels with 4 bidirectional channels on each side for mixed-voltage sensors, displays, and modules

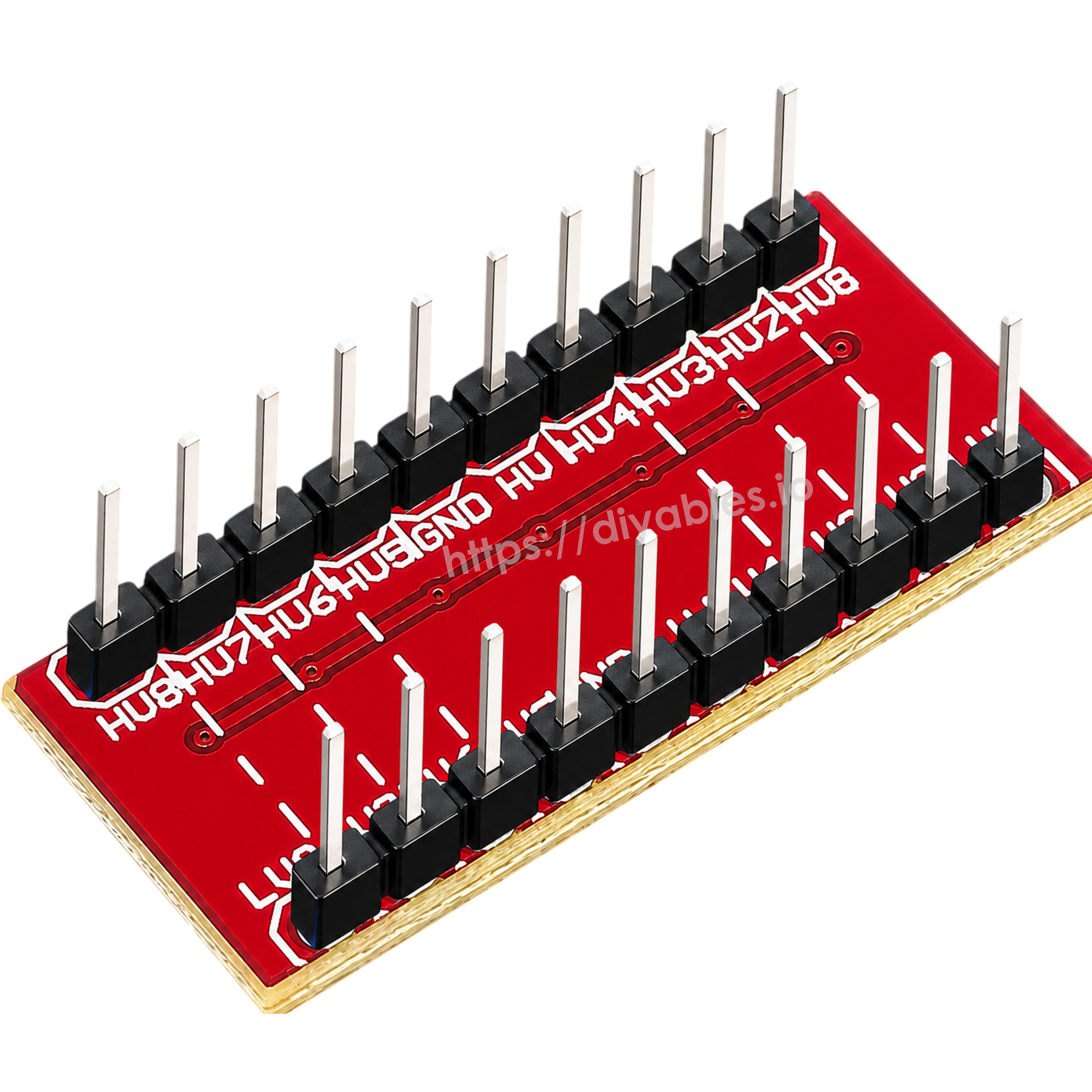

- Presoldered and Ready to Use — Comes fully presoldered with headers for immediate breadboard or PCB use without any soldering
- Simple 3-Wire Power Connection — Connect HV to high voltage, LV to low voltage, and GND to ground for quick setup
- Two Inputs and Two Outputs per Side — Straightforward wiring for mixed-voltage system integration
- Compact Size — Board measures 28 x 19mm for easy mounting in tight spaces
- 5-Pack Value Set — Includes 5 presoldered 8-channel level converter boards for multiple projects
- Wide Compatibility — Works with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and other mixed-voltage microcontroller projects
SPECIFICATION
| Specification | Value |
|---|---|
| Product Type | Logic Level Converter Module |
| Channels | 8 (bidirectional) |
| Interface Support | SPI, I2C, UART, TTL |
| Voltage Levels | 5V / 3.3V / 2.8V / 1.8V |
| High Voltage Side (HV) | Connects to the higher logic voltage supply |
| Low Voltage Side (LV) | Connects to the lower logic voltage supply |
| Assembly | Presoldered with pin headers |
| Board Dimensions | 28mm x 19mm |
| Pin Pitch | 2.54mm (0.1") |
| Package Quantity | 5 pieces |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, STM32 |
COMPATIBLE HARDWARE
- Arduino boards (UNO, Mega, Nano, etc.) — 5V high voltage side
- Arduino Uno R4 WiFi/Minima — 5V or 3.3V side depending on signal
- ESP32 development boards — 3.3V low voltage side
- ESP8266 boards (NodeMCU, Wemos D1, etc.) — 3.3V low voltage side
- Raspberry Pi (all models) — 3.3V low voltage side
- STM32 development boards — 3.3V low voltage side
- I2C sensors and modules — Bidirectional signal shifting between HV and LV sides
- SPI displays and modules — Bidirectional signal shifting between HV and LV sides
- Any mixed-voltage microcontroller project — 1.8V to 5V logic compatible
